Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Food Safety X-Ray Inspection System
Specifications
Model Number :
X Ray Metal Detector
Inspection Type :
X-Ray Foreign Object Detection
Packaging Details :
Wooden box packaging
Reference SUS Detection :
Ø0.3 / Ø0.4 mm*
Delivery Time :
30 days
Detection Height :
170 / 260 / 350 mm
MOQ :
1
Detectable Materials :
Metal, Glass, Bone, Ceramic, Stone, PVC, Rubber
Conveyor Speed :
10–70 m/min
Payment Terms :
L/C,T/T
Detection Width :
240 / 400 / 500 / 600 mm
Certification :
CE
Application :
Food & Product Quality Inspection
Place of Origin :
China
Inspection Method :
Non-Destructive X-Ray Inspection
Brand Name :
TOUPACK
Product Type :
X-Ray Inspection Machine
Description

Food X-Ray Inspection Machine for Foreign Object Detection | TOUPACK

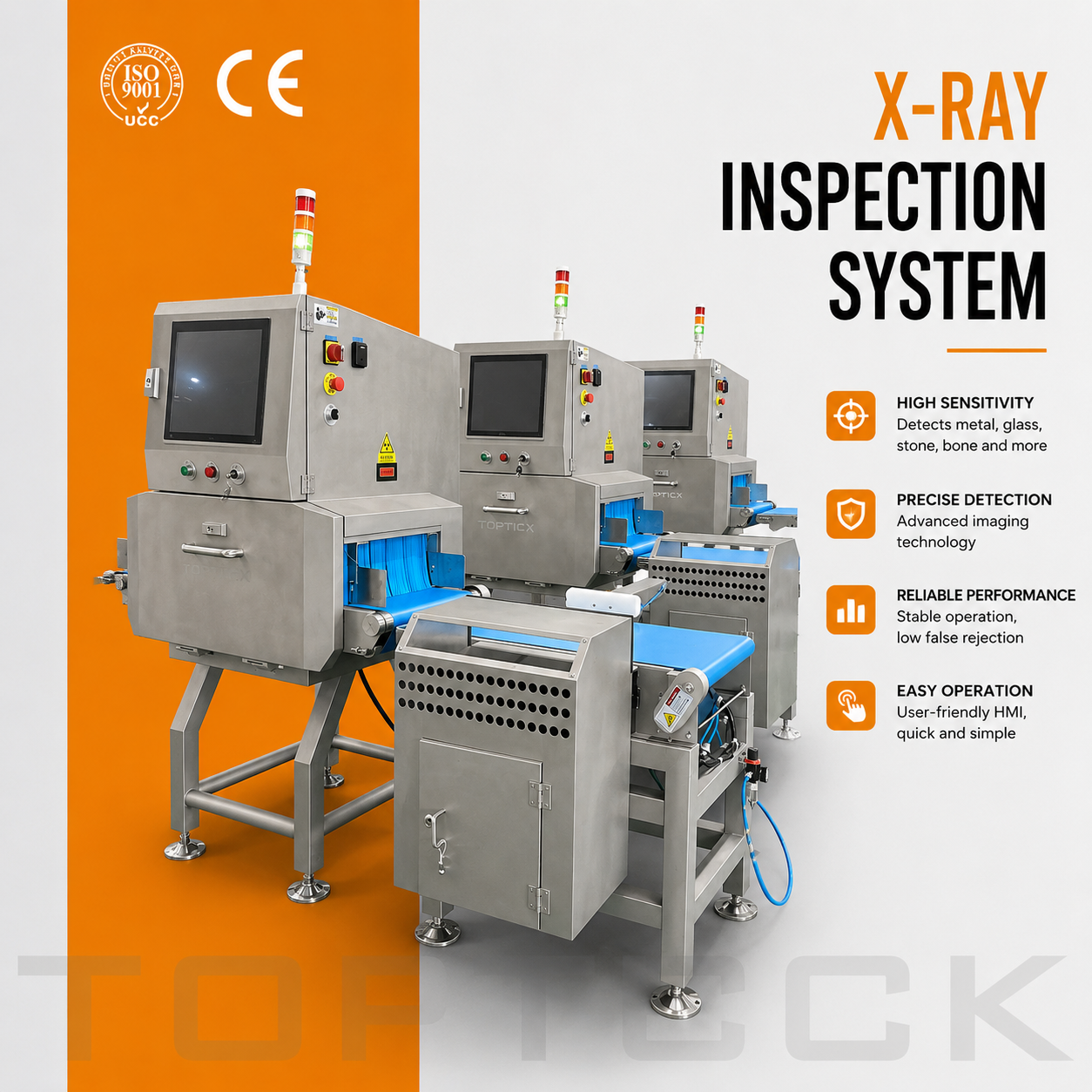

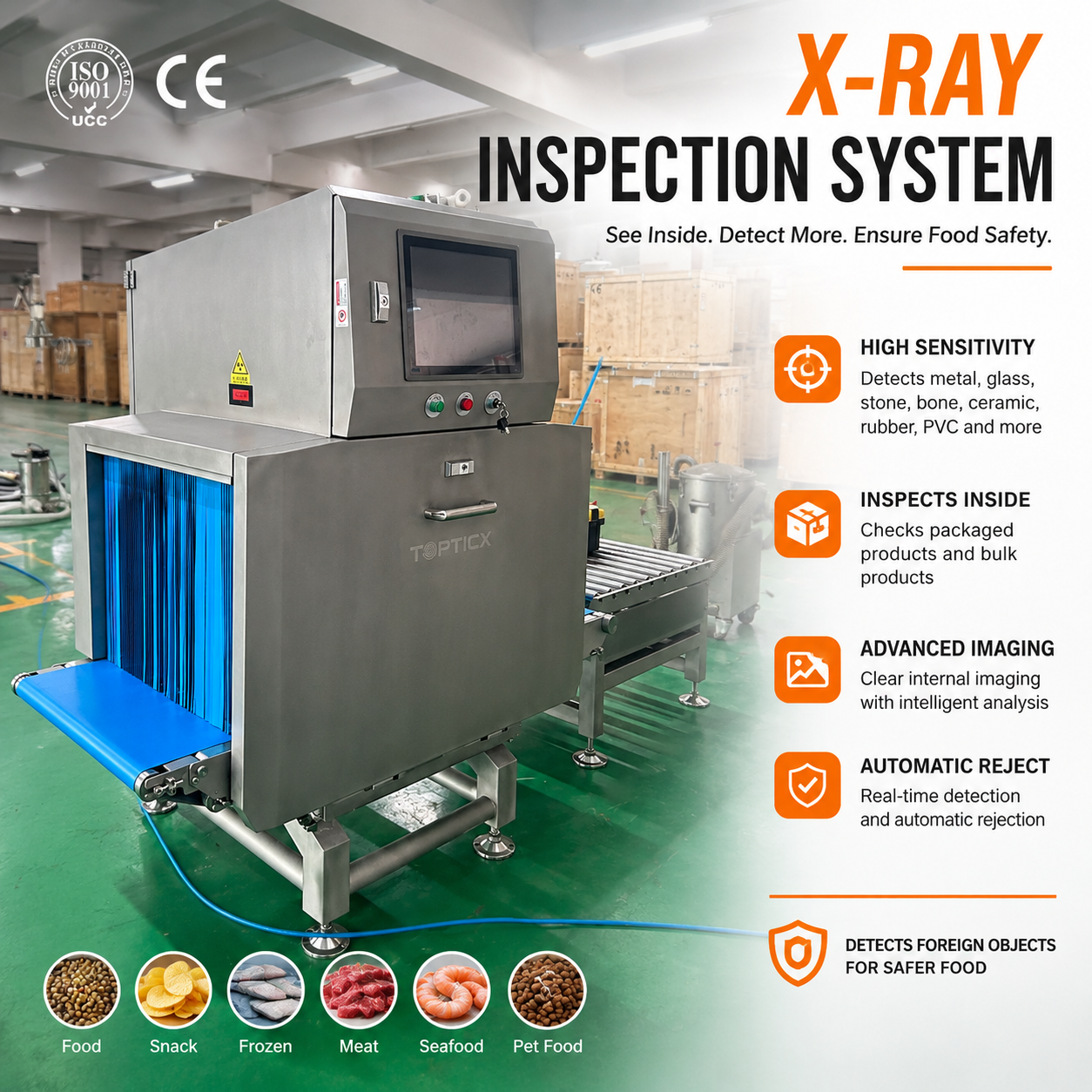

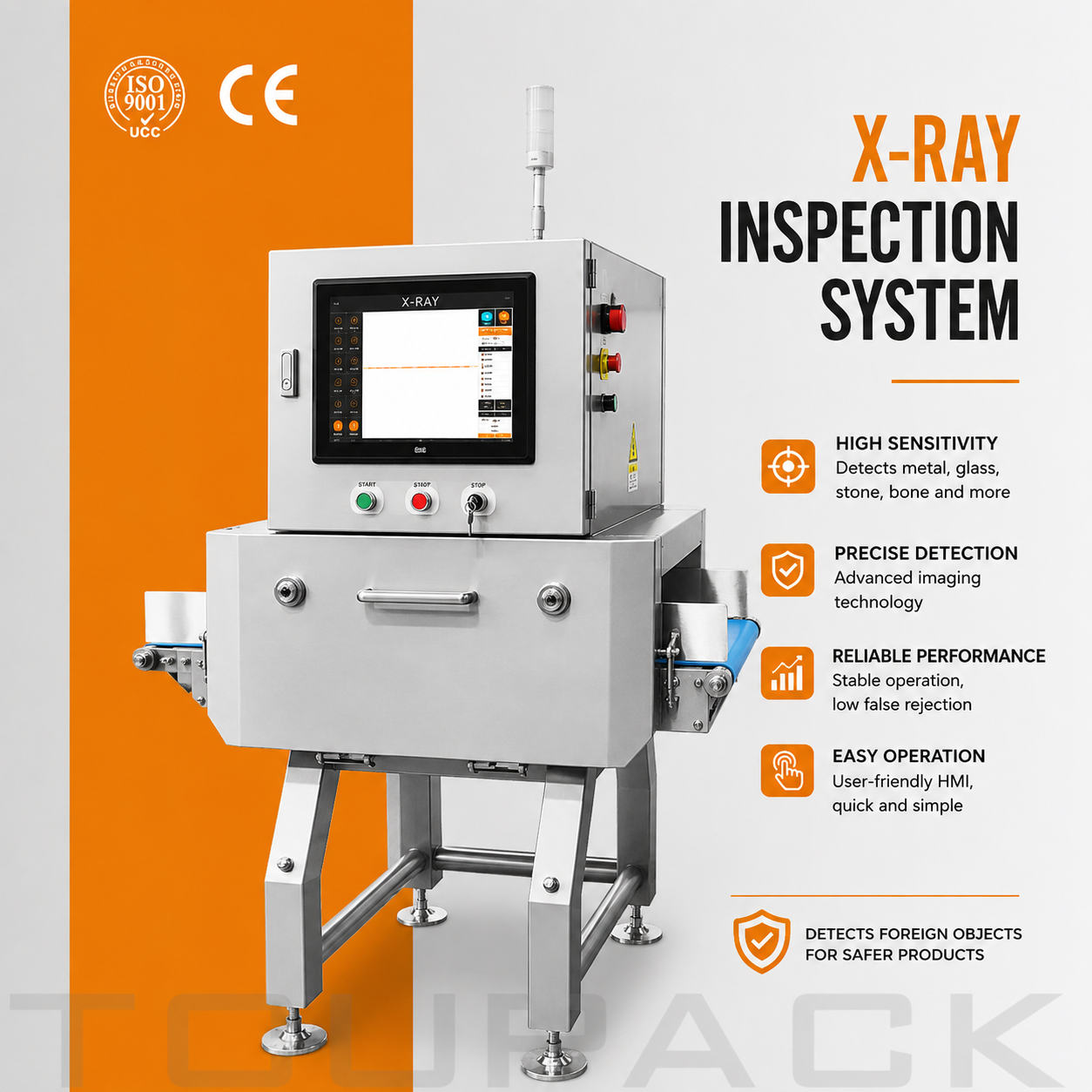

The TOUPACK Food Safety X-Ray Inspection System provides an inline solution for detecting foreign objects inside packaged food products. By analyzing differences in X-ray attenuation, the system can identify target contaminants such as stainless steel, glass, ceramic and stone, as well as certain other detectable high-density foreign objects under suitable inspection conditions.

Unlike visual inspection, X-ray inspection examines the internal structure of the product without opening the package. This makes it suitable for continuous food production lines where reliable foreign object inspection is an important part of the quality-control process.

The system can be configured with different detecting widths and heights according to product dimensions and production requirements. It can also be integrated with alarm, machine-stop and optional automatic rejection functions.

TOUPACK can evaluate the complete application based on the product, package, target contaminants, production speed and line layout, helping customers build a practical food safety inspection solution rather than relying on a theoretical sensitivity specification alone.

Suitable for snacks, nuts, frozen food, meat, seafood, pet food and other packaged food applications.



The use of X-ray imaging technology, can bepackagedproducts,bulk products, solid test objects for internal and defects onthedetection. Among the types of foreign objects to be detected include:metal, bone, glass, ceramics, stone, PVC, rubber, and so on.



Technical parameters
model number TTX-
2417K100		 TTX-
4017K100		 TTX-
5026K100		 TTX-
6035K100
X-ray source 40-100kv adjustable 40-100kv adjustable 40-120kv adjustable 210W/480/40-100kv adjustable
Detection width 240mm 400mm 500mm 600mm
Detection accuracy SUS304 ball (ф) 0.3mm 0.4mm
SUS304 wire 0.2x2mm 0.2x2mm
Glass ball (ф) 1.0mm 1.0mm
Ceramic ball (ф) 1.0mm 1.0mm
Conveyor speed 0-70m/min 0-70m/min 0-70m/min 0-70m/min
Size Height 170mm 170mm 260mm 350mm
