Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Specifications
Price :
Negotiable
Delivery Time :
25 days
ABS :
Optional
MOQ :
1 Piece
Model Number :
X5000
Transmission Type :
Manual
Payment Terms :
L/C,T/T
Color :
Red, Yellow,White, Blue, etc.
Supply Ability :
3000 PCS Per month
A/C :
with
Certification :
ISO9000, CCC, GCC, CIQ, SGS,BIAVC
Power :
Diesel
Packaging Details :
Nude package
Fuel Tank :
400L
Brand Name :
Shacman
Model NO. :
X5000 Dump Truck
Place of Origin :
China
Drive Wheel :
8×4
Description

Product Parameters

Model SX33186V384C
Driver position Left Hand
Cab Medium length flat top
Driving type 8*4
Wheelbase 1800+3775+1400
Max. Speed(km/h) 80km/h
Engine Brand CUMMINSENGINE/WEICHAI
Model ISME 420 30
Emission Standard EUROIII
Rated output power(PS) 420HP
Displacement(L) 10.8L
Transmission Brand FAST
Model 12JSD200T-B+QH50
Front axle Brand HANDE
Model MAN 9.5T
Rear axle Brand HANDE
Model 16T MAN double reduction driving axle
Speed ratio 5.262
Clutch ¢430 diaphragm clutch¢430
Frame 850 x 300(8+7)
Suspension multiple leaf springs front and rear/four main spring + four bolts
Fuel tank 400L Aluminum alloy
Wheels and tires 12.00R24(12+1)
Brakes Running brake:Dual circuit compressed air brake
Parking brake:Air discharging with spring control
Auxiliary brake:Engine exhaust brake
Cabin Hydraulic main seat, four-point hydraulic suspension cab, normal mirrors, electronically controlled automatic thermostatic air conditioning, electric window crank, manual rollover, oil bath air filter, metal bumpers, oil sump protection, front and rear headlight protection grilles, two-stage pedals, water tank protection grilles, one additional long-life coarse filter, 165Ah maintenance battery, SHACMAN logo, full English logo
Upbody Box:5600mm*2300mm*1500mm

Product Description

Shacman X5000 8×4 dump truck is a professional heavy duty mining tipper truck developed for demanding applications including mining transportation, quarry operations, construction projects, sand and gravel hauling, infrastructure development and bulk material logistics.

Equipped with powerful engine options ranging from 375HP, 380HP, 400HP to 420HP/430HP, this 12 wheel dump truck provides excellent power output, durability and high load capacity. The reinforced chassis, heavy-duty axle system and hydraulic tipping body make it suitable for transporting stone, ore, coal, sand and construction materials.

For customers searching for a Shacman X5000 dump truck for sale, 8×4 heavy duty tipper truck, China mining dump truck manufacturer, RHD dump truck for Africa, LHD heavy truck supplier, 420HP construction dump truck, 12 wheeler cargo truck, quarry transport truck, large capacity mining truck, and factory direct Shacman truck exporter, the X5000 provides a reliable transportation solution.

Designed for harsh working environments, the Shacman X5000 tipper truck offers strong performance, easy maintenance and long service life, making it suitable for mining companies, construction contractors and fleet operators.

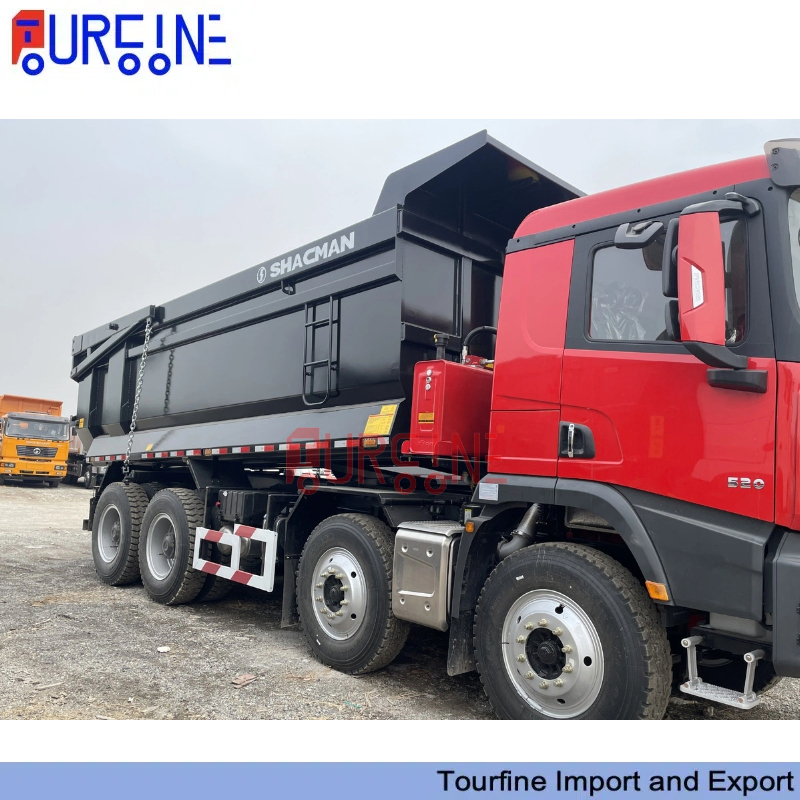

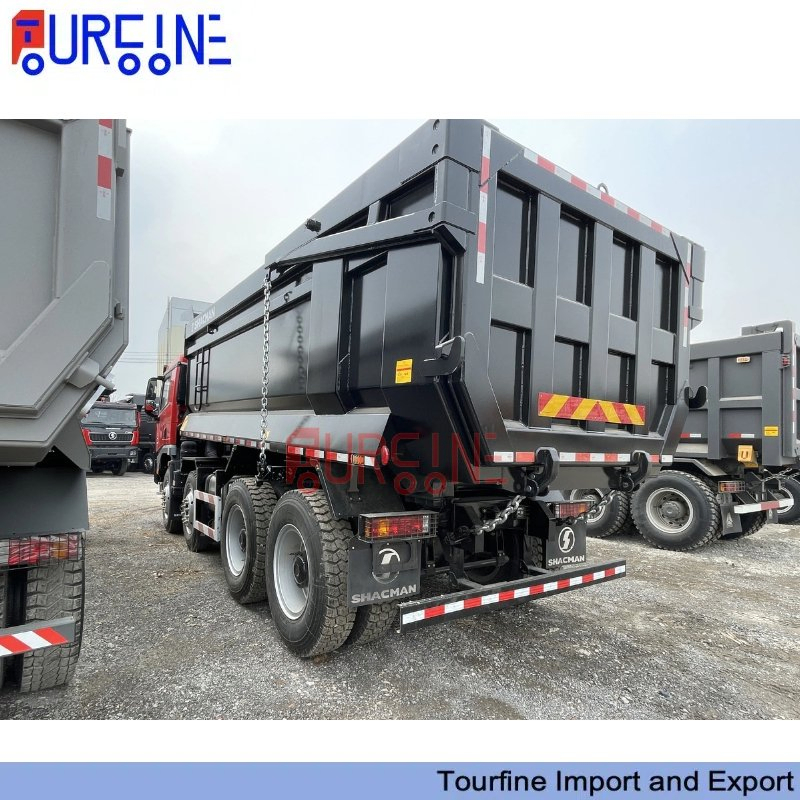

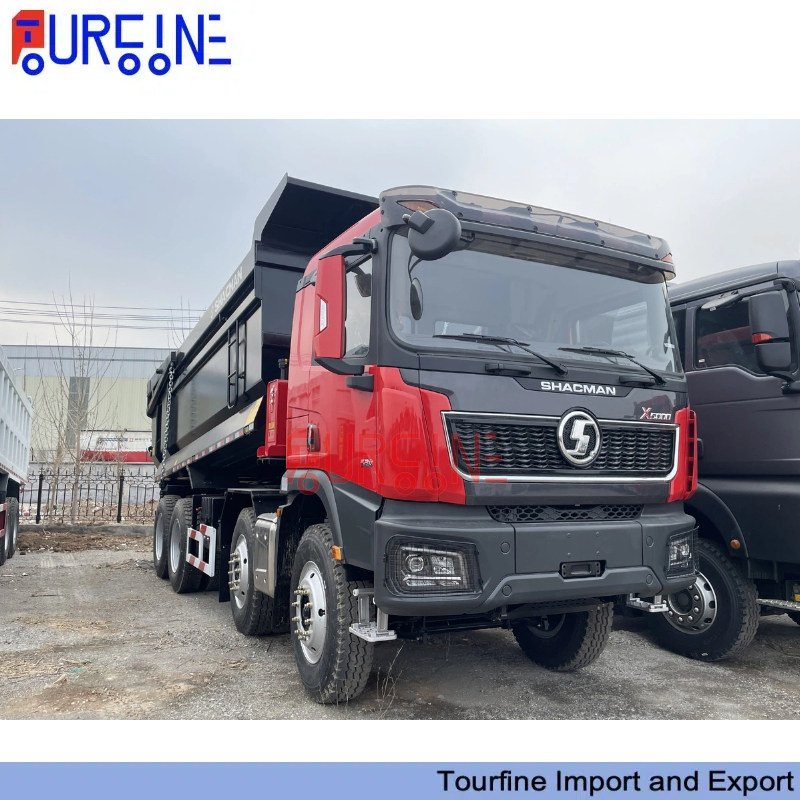

Detailed Photos

Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck

Packaging & Shipping

Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck
Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck

Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck

Other trucks

Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck

Successful Case

Shacman X5000 RHD LHD 8×4 U SHAPE 420HP Dump Truck Heavy Duty Construction And Mining Truck

FAQ

1. What is the Shacman X5000 8×4 dump truck used for?

The Shacman X5000 8×4 dump truck is mainly used for mining, quarry, construction, sand transportation and bulk material hauling.

2. What horsepower options are available?

The X5000 dump truck can be supplied with different power options including 375HP, 380HP, 400HP, 420HP and higher configurations depending on customer requirements.

3. Is the Shacman X5000 suitable for Africa?

Yes. Its strong chassis, reliable engine and durable design make it suitable for African mining projects, construction sites and transportation operations.

4. Can I choose RHD or LHD configuration?

Yes. Both right-hand drive and left-hand drive versions are available according to the destination country's regulations.

5. What materials can this dump truck transport?

It can transport:

  • Sand
  • Gravel
  • Stone
  • Ore
  • Coal
  • Construction waste

6. Why choose an 8×4 dump truck?

An 8×4 dump truck provides higher load capacity and better stability compared with smaller configurations, making it ideal for heavy-duty applications.

7. Is Shacman X5000 suitable for mining operations?

Yes. The reinforced chassis and heavy-duty components are designed for mining and quarry environments.

8. Can the dump body size be customized?

Yes. Cargo body volume, thickness, hydraulic system and other specifications can be customized.

9. What trailers or equipment can work with this truck?

The truck is mainly used independently for tipping operations and can support various mining, construction and logistics projects.

10. Do you provide spare parts and after-sales support?

Yes. Spare parts supply, technical guidance and long-term after-sales service are available.
