Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Specifications
Delivery Time :
45 days
Color :
Red, Orange, Yellow and White
Packaging Details :
Nude package
Drive Type :
Rhd/LHD
Brand Name :
Beiben/North benz
Transmission Type :
Manual
Specification :
18cbm, 20cbm, 25CBM
Place of Origin :
China
Emission Standard :
Euro 3
Model Number :
NG80B
Power :
Diesel
Certification :
ISO9000, CCC, GCC, CIQ, SGS,BIAVC
Load Capacity :
41-50t
MOQ :
1 Piece
Price :
US $35,000-48,000
Payment Terms :
L/C,T/T
Horsepower :
351-450hp
Tire :
12.00r20/12r22.5, 315/80r22.5, 12.00r24
Supply Ability :
3000 PCS Per month
Dumping Type :
Front Lifting Style
Description
Product Description

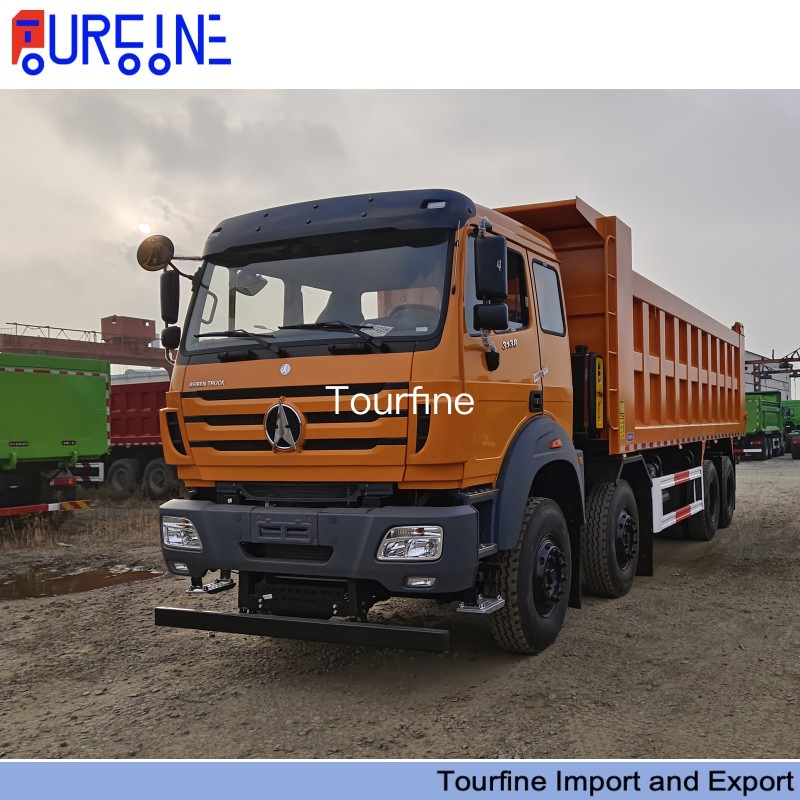

Beiben 380HP 30 Ton 12 Wheel Heavy Duty Dump Truck with 20CBM Tipping Body

The Beiben 380HP 30 Ton Dump Truck is a professional heavy duty tipper truck designed for demanding working environments in Africa. Equipped with a 12 wheel heavy duty chassis, powerful 380HP engine and 20CBM large capacity dump body, this Beiben dump truck provides excellent loading performance and transportation efficiency for mining, quarry and construction projects.

This 30 ton mining dump truck is widely used in DRC Congo and other African markets for transporting ore, rocks, sand, gravel and bulk materials. With strong durability, reliable mechanical performance and easy maintenance, the Beiben 12 wheel dump truck is an ideal solution for customers requiring long-term operation in tough road conditions. As a professional China truck exporter, we supply factory direct Beiben heavy duty dump trucks with customized configurations, competitive prices and complete export service.

Product Parameters
Overall Dimension: 11016*2500*3484mm
Wheel base: 1500+4450+1450mm
Curb weight: 15060
Dimension for upper body 8000*2300*1500 mm
Hyva lifting system, bottom 8mm, side6mm, front tipping.
Engine: Model WP10.380E32 water cooled, four strokes, 6 cylinders straight in line, turbocharged
Fuel type Diesel
Emission standard EuroIII
Displacement(L) 9.726 This is exactly one
Fuel tanker capacity(L) 400L
Gear box
 Model 12JS200T +QH50 PTO mechanical type, 12 forward speed gear
Brake system Service brake Brake gap can be adjusted automatically
Double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and reel wheels
Steering system ZF8098 Whole circulation in ball type hydraulic boosting.
Suspension system rear suspension No free standing stabilization spring,stabilization suspension, 13pcs
Frame Fish belly shape, variable width, variable sections
Front axle(Mercedes benz technology) Double shoe pneumatic brake,none drving steering axle
6.5ton
Middle and rear axle(Mercedes benz technology) Double-shoe pneumatic brake, ductile casting casing,with hub redactor, double reduction driving axle
Middle axle:HD7/016DGS-13/5.263
Rear Axle:Hl7/015DS-13
Tire 12.00R20 Radial tire 11units
Electrical system Batter 2*12V/135Ah
Generator 28V-35A
Starter 5.4KW/24V
Cabin Short cabin,LHD NO SLEEPING BED
Full steel skeleton structure, covered with double layer steel plate;can be tipped forwardly
With tropical thermostat.

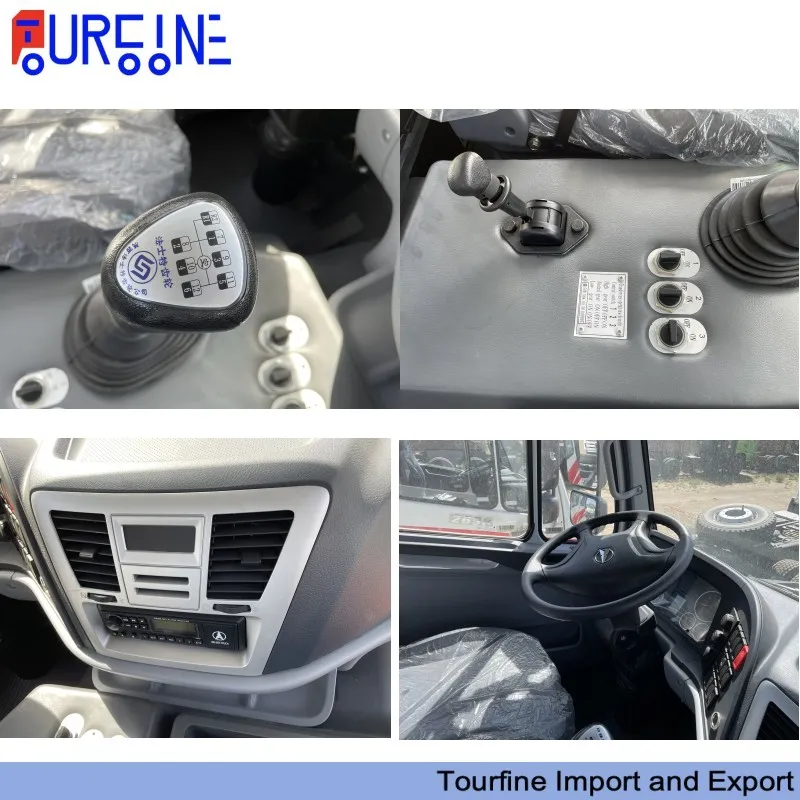

Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio with USB interface,Steering wheel can be adjusted.
Exterior trimming
Metal bumper,three steps,new mirror
Detailed Photos

Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo AfricaBeiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo AfricaBeiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo AfricaBeiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa

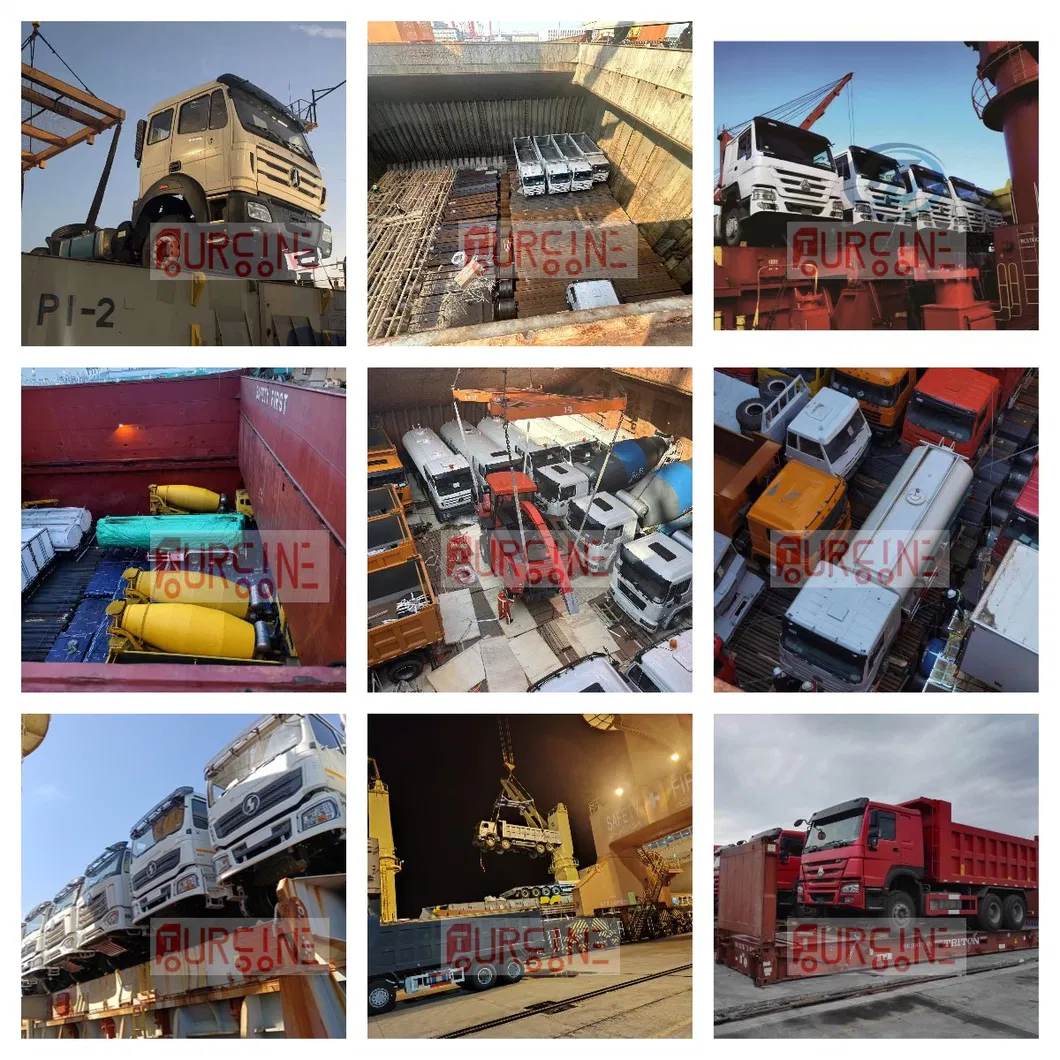

Packaging & Shipping

Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
Beiben 380HP Camion Benne Heavy Duty Dump Truck 30 Ton 12 Roues for Congo Africa
FAQ

Q1: What is the loading capacity of Beiben dump truck?

A: The Beiben dump truck has a loading capacity of around 30 tons, suitable for mining and heavy transportation applications.

Q2: Why choose Beiben 12 wheel dump truck?

A: The 12 wheel configuration provides better stability, higher load capacity and stronger performance compared with standard dump trucks.

Q3: Is this Beiben dump truck suitable for Congo DRC?

A: Yes. Beiben trucks are suitable for Congo DRC mining and construction projects due to their strong chassis and excellent durability.

Q4: What is the cargo body volume?

A: This model is equipped with a 20CBM dump body, suitable for transporting large quantities of bulk materials.

Q5: What engine power does this truck have?

A: The Beiben dump truck is equipped with a 380HP engine, providing strong power for heavy-duty operations.

Q6: What materials can this truck transport?

A: It can transport mining ore, rocks, sand, gravel, coal and construction materials.

Q7: Can the truck configuration be customized?

A: Yes. We can customize engine, cargo body size, tires, color and other specifications according to customer requirements.

Q8: Do you export Beiben trucks to Africa?

A: Yes. We supply Beiben trucks to African markets with export experience and spare parts support.

Q9: What is the difference between dump truck and tipper truck?

A: They describe the same type of vehicle. "Dump truck" is common globally, while "tipper truck" is frequently used in Africa and mining industries.

Q10: How can I order Beiben 30 ton dump truck?

A: Send your required configuration and destination port. We will provide quotation, shipping solution and
