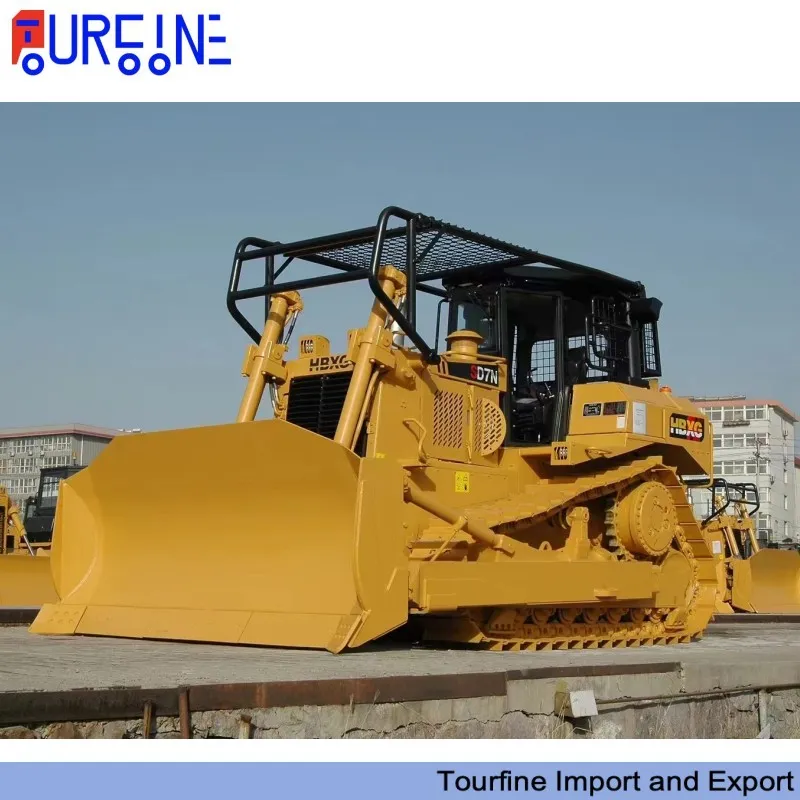

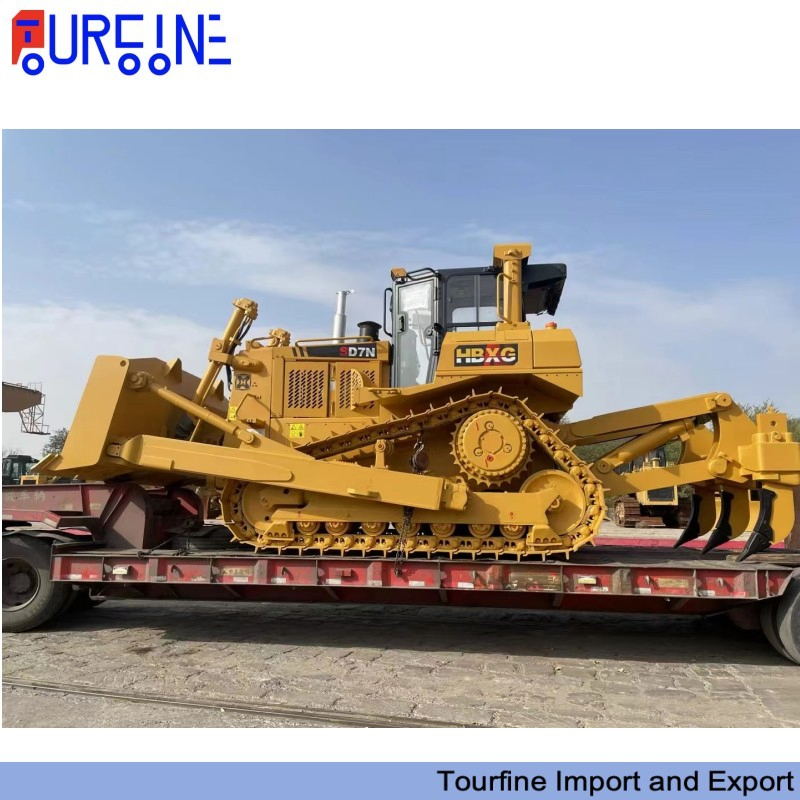

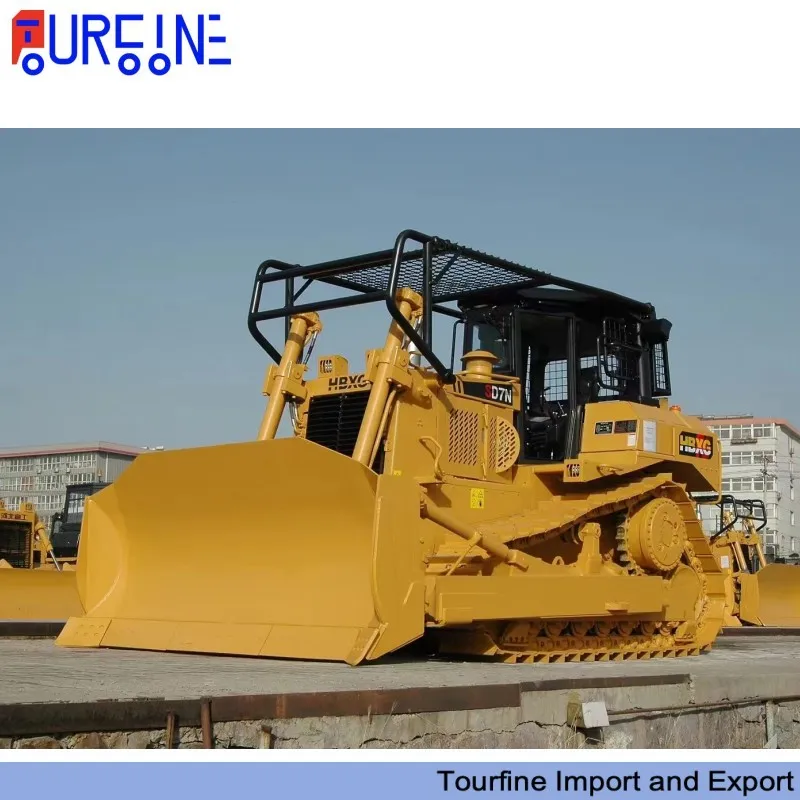

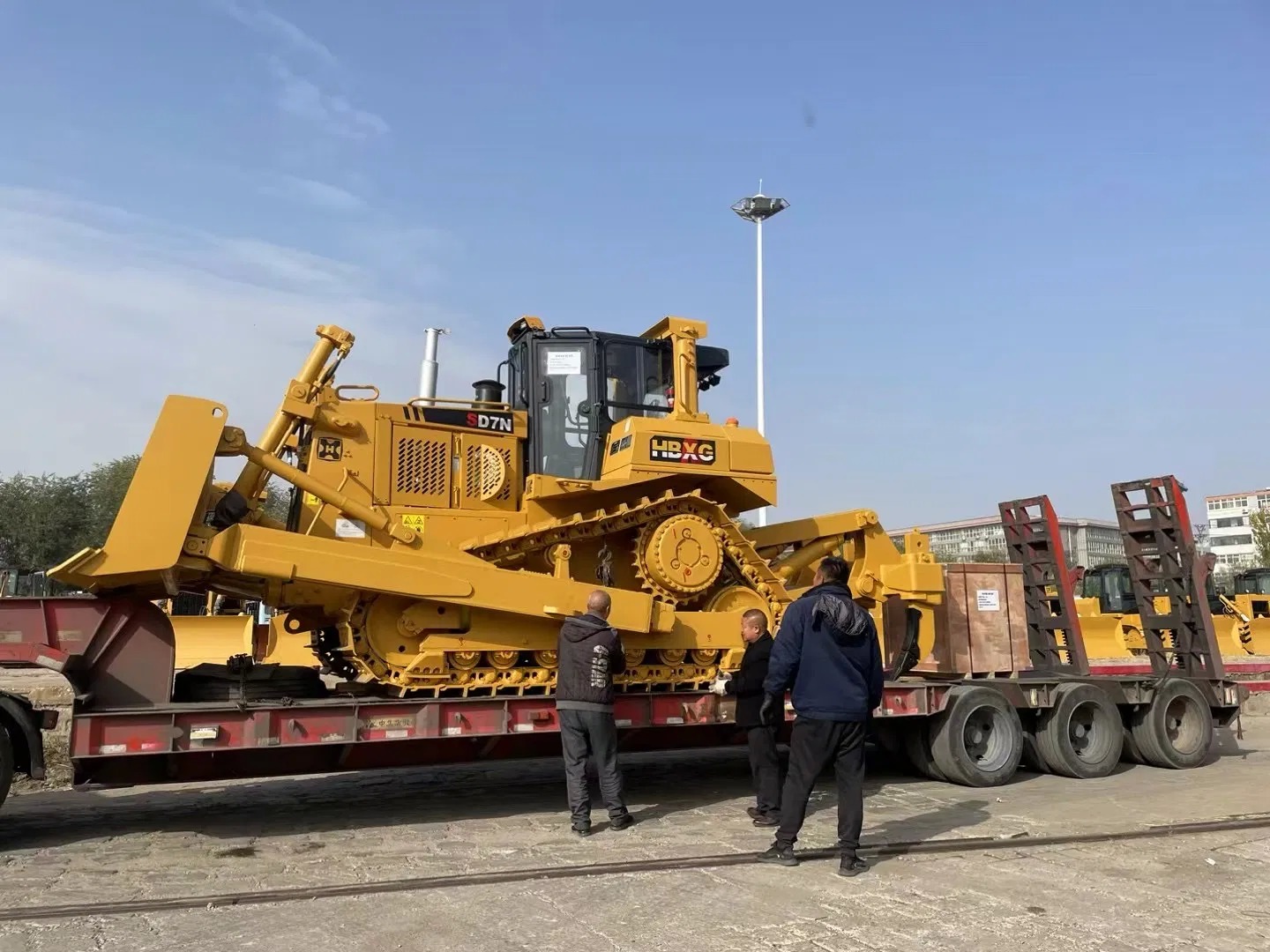

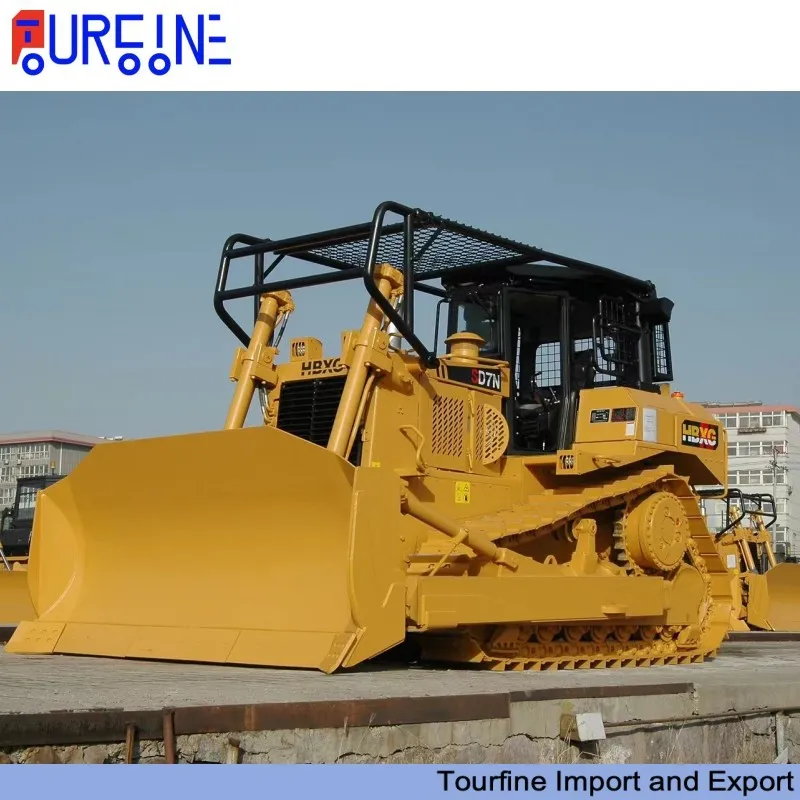

230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
Specifications
Model Number :
SD7N
Engine Power :
147~515kw
Supply Ability :
3000 Per Month
Options 2 :
Angle Blade
Delivery Time :
30 work days
Options 3 :
Rops, Fops, Forest Defence Cabin etc
Certification :
ISO9001: 2000
Place of Origin :
China
Bucket Type :
Tilt
Price :
Negotiable
Packaging Details :
Nude Packing
Working Site :
in Communication, Oil Field, Power, Mining etc. La
Specification :
350hp
Brand Name :
HBXG
Load and Unload Method :
Front Discharge
MOQ :
1 Piece
Payment Terms :
L/C,T/T
Options :
U Blade
Description

230 HP SHEHWA SD7N Bulldozer with Ripper and ROPS Cabin

Product Description
The 230 HP SHEHWA SD7N Bulldozer is built for demanding earthmoving, mining, and infrastructure construction projects. Equipped with a durable ripper and a ROPS cabin, this crawler bulldozer provides enhanced safety, powerful traction, and efficient material handling in challenging working environments. Powered by a reliable 230 HP engine, the SD7N bulldozer delivers excellent pushing force, fuel efficiency, and stable performance on rough terrain. Its advanced hydraulic system and ergonomic controls ensure smooth operation, reduced operator fatigue, and easy maintenance. As dependable construction machinery, the SHEHWA SD7N bulldozer is an ideal choice for contractors requiring high productivity, long service life, and reliable performance in large-scale earthmoving applications.
Product Parameters
Operation weight (kg) (not including ripper) 24300
Engine brand CUMMINES
Rated power/rated (kW/rpm) 185/2100
Overall dimensions (mm) 6008×3552×3402
Track gauge(mm) 1980
Width of shoe (mm) 560
Ground contact length(mm) 2890
Fuel tank capacity(L) 450
Blade type Tilting blade
Blade capacity(m3) 8.4
Blade Semi-U tilting blade
Operation weight (Kg) (not including ripper) 23800
Ground pressure(KPa) 71.9
Track gauge(mm) 1980
Gradient 30°/25°
Min. ground clearance (mm) 404
Dozing capacity (m³) 8.4
Blade width (mm) 3500
Max. digging depth (mm) 498
Overall dimensions (mm) 5677×3500×3402
(including ripper) 7616×3500×3402
Engine
Type CUMMINE
S NTA855-C280S10
Rated revolution (rpm) 2100
Rated power (KW) 185
Max. torque (N•m/rpm) 1097/1500
Rated fuel consumption(g/KW•h) ≤235
Type Max. torque (N•m/rpm)
Undercarriage system
Type The track is triangle shape. The sprocket is elevated elastic suspended.
Number of track rollers (each side) 7
Pitch (mm) 216
Width of shoe (mm) 560
Gear 1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max. system pressure (MPa) 20
Pump type High pressure gears pump
Control type Pilot control
System output (L/min) 170
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speeds and direction can be quickly shift
Steering clutch The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
Detailed Photos

230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
FAQ
  1. Q: What is the minimum order quantity (MOQ)?
    A: Our MOQ is one unit.
  2. Q: What are your payment terms?
    A: We accept payment through T/T or LC.
  3. Q: What after-sales services do you provide?
    A: We offer comprehensive technical support and provide high-quality spare parts to ensure the longevity of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  4. Q: What shipping methods do you use?
    A: We utilize container, flat rack container, Roro vessel, and bulk vessel for shipping.
  5. Q: How long does delivery take?
    A: Delivery time ranges from 7 to 60 days after receiving the deposit.
  6. Q: Can you accommodate special requirements?
    A: Absolutely! We can manufacture trailers and trucks tailored to your specific needs.
  7. Q: Do you offer high-quality spare parts?
    A: Yes, we provide top-quality spare parts.
Successful Case

230 HP HBXG SD7N Bulldozer Construction Equipment With Ripper And ROPS Cabin
