Specifications
Delivery Time :
30 work days
Packaging Details :
by Container
Brand Name :
XCMG
Engine :
Weichai/Shangchai
Model Number :
LW500FN
Bucket Type :
Normal, Mining, Rock Bucket
Price :
Negotiable
Supply Ability :
3000 Per Month
Specification :
5 tons
Certification :
ISO
Color :
Yellow
Payment Terms :
L/C,T/T
Options :
Port Plier/ Grasping Grass Machine/ Pallet Fork/ S
MOQ :
1 Piece
Place of Origin :
China
Bucket Capacity :
3cbm, 3.2cbm, 3.5cbm
Description

Construction Wheel Loader with Fork LW500FN for 5 Ton Material Handling

Product Description


The LW500FN Wheel Loader with Fork is a versatile 5 ton wheel loader designed for construction sites, warehouses, ports, logistics centers, and industrial material handling. Equipped with a heavy-duty fork attachment, this front end wheel loader efficiently handles pallets, timber, pipes, and other bulk materials with excellent stability and lifting performance. Its powerful engine, advanced hydraulic system, and reinforced transmission ensure reliable operation, fuel efficiency, and long service life under demanding working conditions. The spacious operator cab enhances comfort and visibility, improving productivity throughout the workday. Combining durability, flexibility, and low maintenance costs, the LW500FN loader is an ideal solution for contractors, rental companies, and global heavy equipment distributors.


Product specification


Description Unit Parameter value
Rated operating load kg 5000
Bucket capacity m³ 2.5~4.5
Machine weight kg 16900
Dump clearance at maximum lift mm 3150~3560
Reach at maximum lift mm 1100~1190
Wheel base mm 2960
Tread mm 2250
Height of hinge at maximum lift height mm 4112
Working height(fully lifted) mm 5510
Max.breakout force kN 170
Hydraulic cycle time-raise s ≤6
Total hydraulic cycle time s ≤10.5
Min. turning radius over tyres mm 5950
Articulation angle ° 35
Gradeability ° 28
Tyre size
23.5-25-16PR
Overall machine dimension L×W×H mm 7910×3016×3515
Model
WD10G220E21
Rated Power kW 162
Fuel Tank L 250
Hydraulic Tank L 210
Travel Speed I-gear(F/R) km/h 13/18
II-gear(F/R) km/h 40

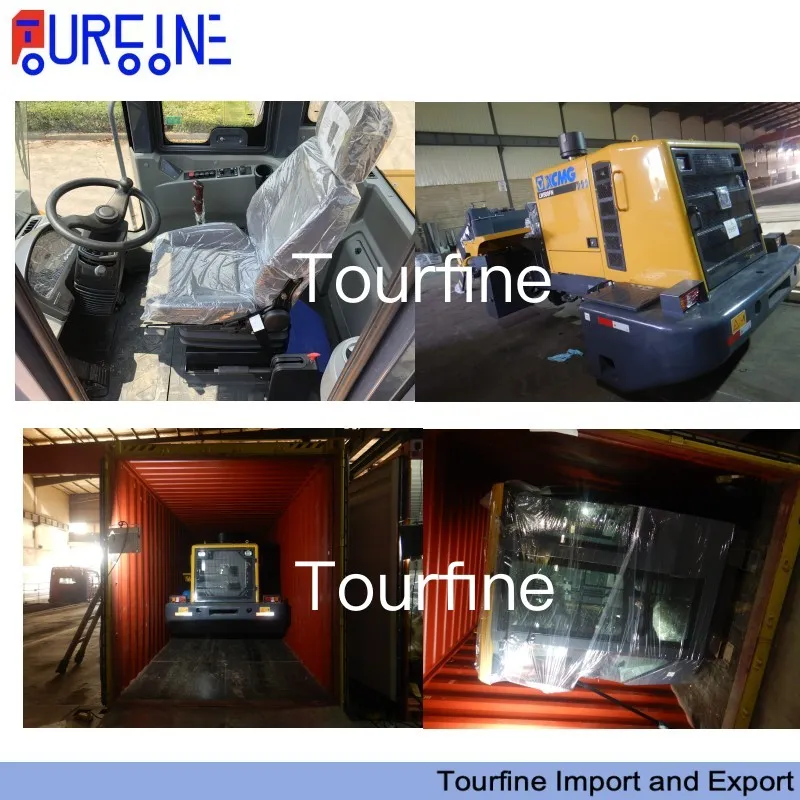

Packaging & Shipping

Construction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material Handling

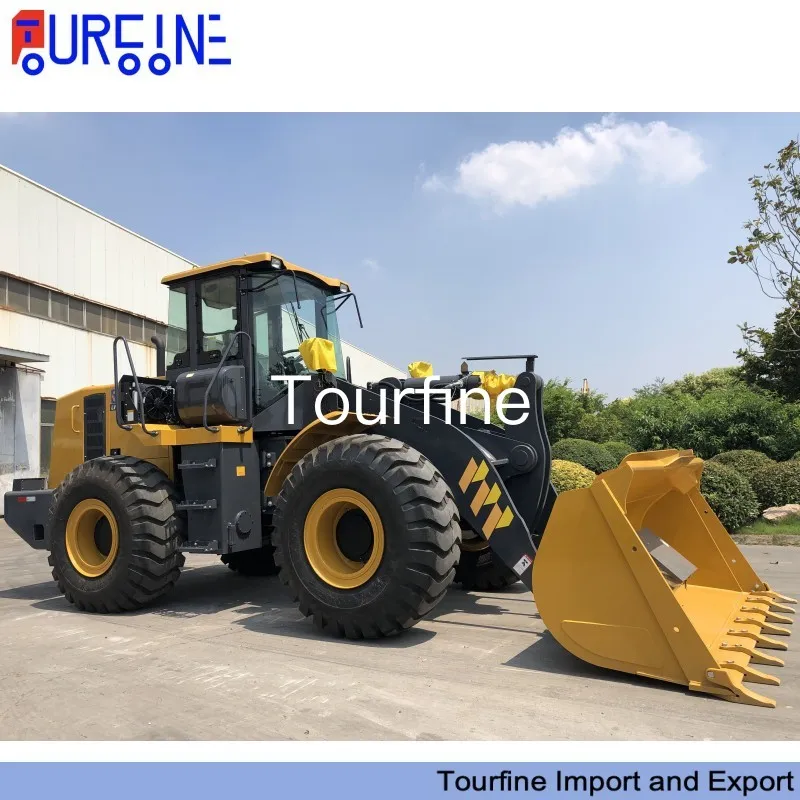

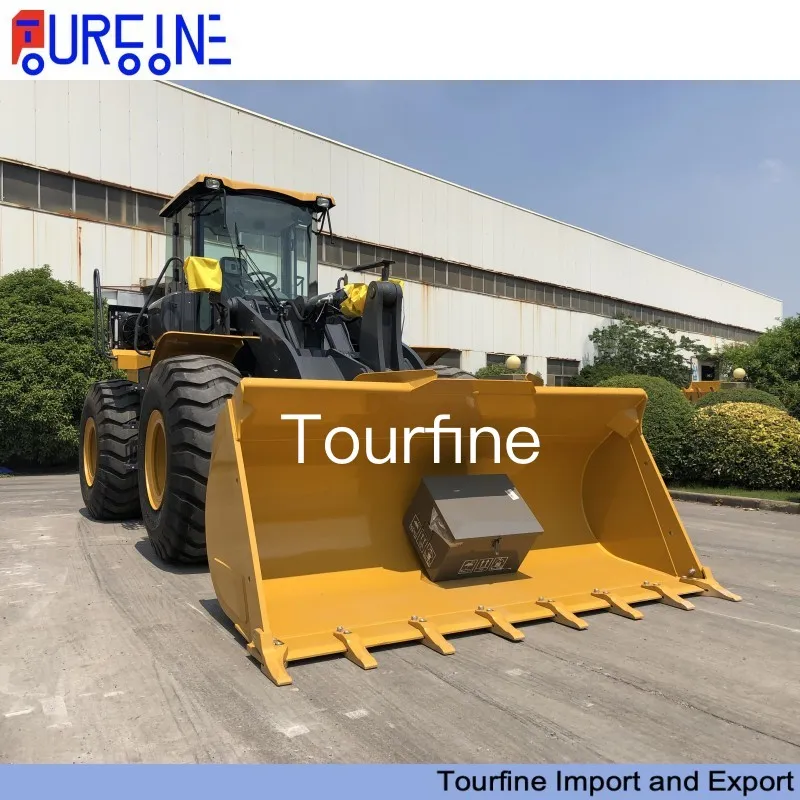

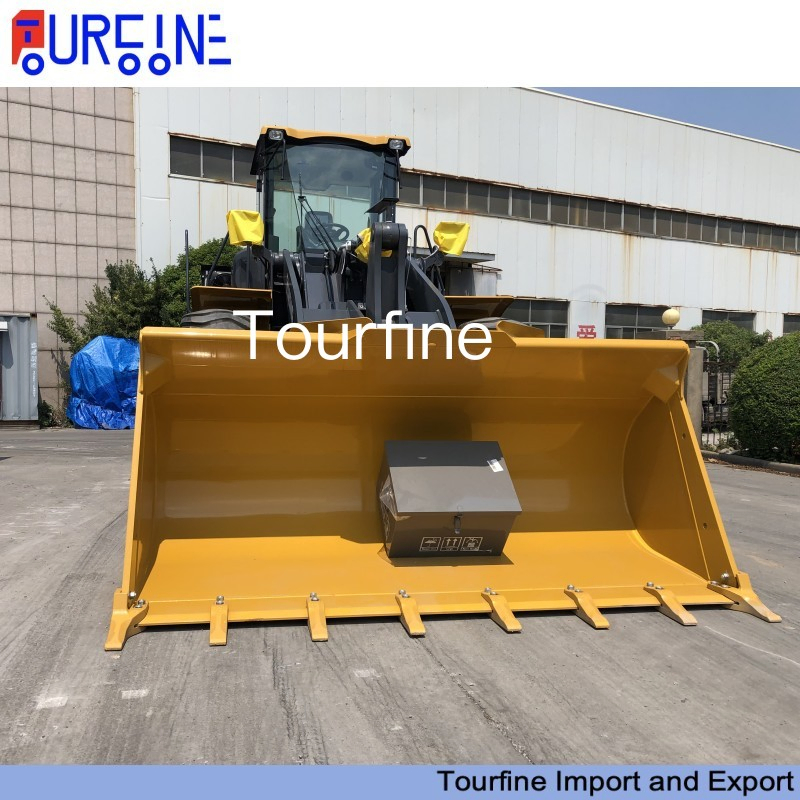

Detailed Photos

Construction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material HandlingConstruction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material HandlingConstruction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material HandlingConstruction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material HandlingConstruction Wheel Loader With Fork Xcmg LW500FN For 5 Ton Material Handling

FAQ


  1. Q: What is the minimum order quantity (MOQ)?
    A: Our MOQ is one unit.
  2. Q: What are your payment terms?
    A: We accept payment through T/T or LC.
  3. Q: What after-sales services do you provide?
    A: We offer technical support and provide spare parts to ensure the long lifespan of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  4. Q: What shipping methods do you use?
    A: We use container, flat rack container, Roro vessel, and bulk vessel for shipping.
  5. Q: How long does delivery take?
    A: Delivery time ranges from 7 to 60 days after receiving the deposit.
  6. Q: Can you accommodate special requirements?
    A: Absolutely! We can manufacture trailers and trucks according to your specific requirements.
  7. Q: Do you offer high-quality spare parts?
    A: Yes, we provide good quality spare parts.
