1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
Specifications
Brand Name :
HuaXin
Model Number :
ESHX0147Y003T003
Certification :
ISO14001/ ISO13485/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
lcd module
name :
Round lcd module
size :
1.47"
resolution :
360*360
Brightness :
400cd/m2
interface :
MIPI/QSPI/8BIT/SRGB
drive IC :
ST77916
view angle :
free view angle
Description

ESHX0147Y003T003 is 1.47 inch round tft display, 360*360 dots, 400C/D brightness, MIPI/QSPI/8BIT/SRGB interface, driving IC ST77916

A. Product Parameter

Part No: ESHX0147Y003T003
display Mode 1.47 inch round TFT display
outline size(mm) 39.24x41.01x1.6
AA size(mm) 36.94x36.94
Display dots 360*360
view Angle all
Brightness 400C/D
interface MIPI/QSPI/8BIT/SRGB
Driving IC ST77916
working temp -20~70
storage temp -30~80

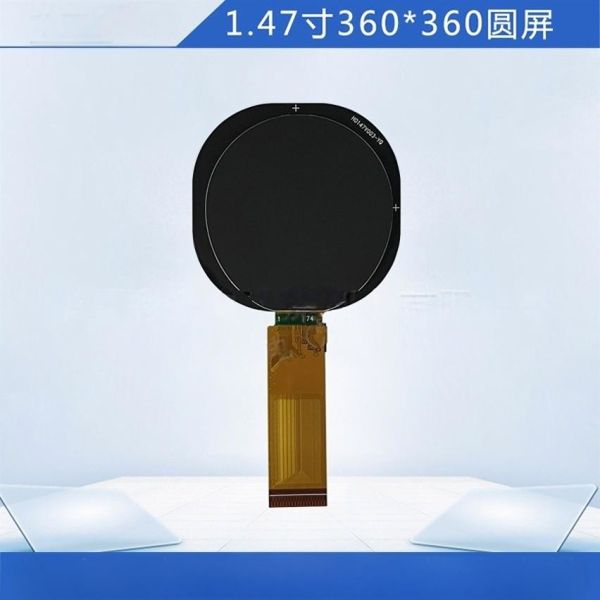

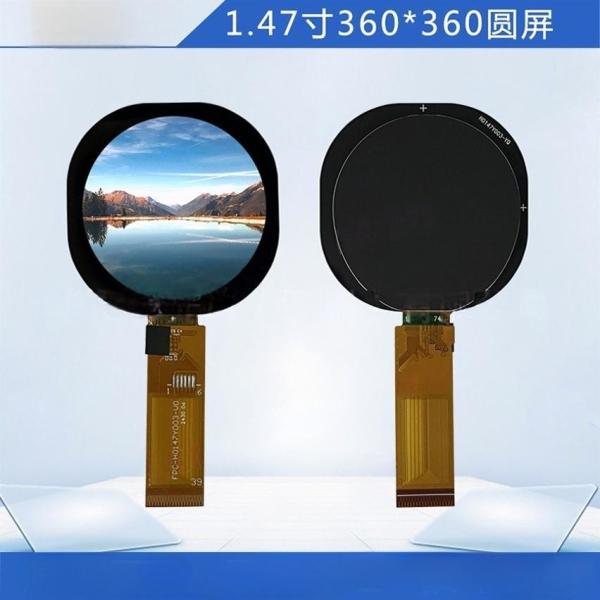

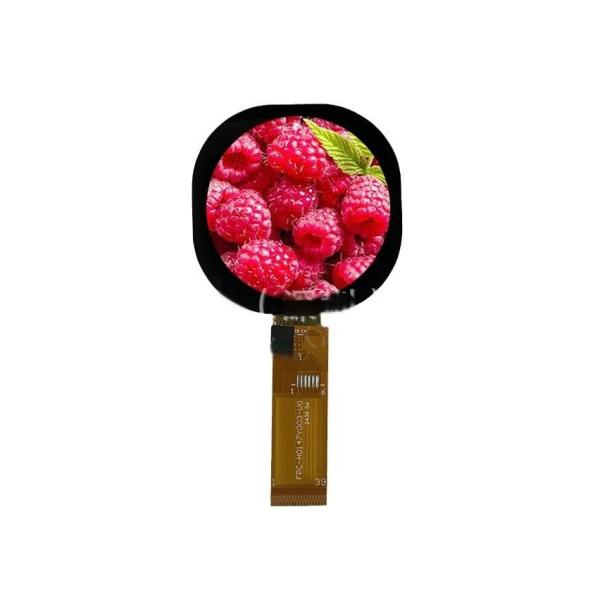

B.Product Picture

1.47 Inch Round Round TFT Display 360x3601.47 Inch Round Round TFT Display 360x3601.47 Inch Round Round TFT Display 360x3601.47 Inch Round Round TFT Display 360x360

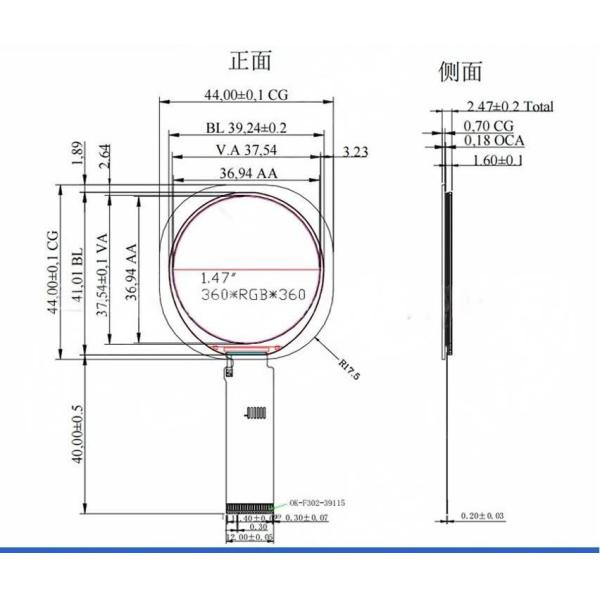

C. Drawing




D. TFT product knowledge

tft substrate input and CF substrate input flow chart as below

1.47 Inch Round Round TFT Display 360x360

TFT structure as below

1.47 Inch Round Round TFT Display 360x360


E: company information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/ ISO13485/
2.ISO9001/IATF16949
3.SGS of LCD module


Company introduction

1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360

LCD main process


1.47 Inch Round Round TFT Display 360x360

LCM process
1.47 Inch Round Round TFT Display 360x360

Huaxin Key measurement machine
1.47 Inch Round Round TFT Display 360x360

our Key RA equipment
1.47 Inch Round Round TFT Display 360x360

product application


1.47 Inch Round Round TFT Display 360x360

Huaxin certificates
1.47 Inch Round Round TFT Display 360x360
our main clients
1.47 Inch Round Round TFT Display 360x360

Huaxin Exhibition
1.47 Inch Round Round TFT Display 360x360
1.47 Inch Round Round TFT Display 360x360

Qulaity control
1.47 Inch Round Round TFT Display 360x360

1.47 Inch Round Round TFT Display 360x3601.47 Inch Round Round TFT Display 360x360

1.47 Inch Round Round TFT Display 360x360
