5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
Specifications
Brand Name :
HuaXin
Model Number :
HX05S-30MI-A1
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft color display
name :
TFT display
size :
5"
resolution :
720*720
Driving IC :
JD9365TX
view angle :
free
interface :
MIPI
brightness :
460c/d
Description
HX05S-30MI-A1 is 5 inch 720x720 square color TFT display ,MIPI interface ,JD9365TX driving IC, 460c/d
Product Specifications
Part NO. HX05S-30MI-A1
Display Technology TFT display
Diagonal Screen Size 5 inch square TFT display
Active Area (mm) 91.368*91.368
Panel size(mm) 93.67(H)*96.87(V)*2.15(D)
Brightness(cd/m2) 460c/d
Resolution 720(RGB)x720
Interface MIPI
View angle ALL
Driving IC JD9365TX

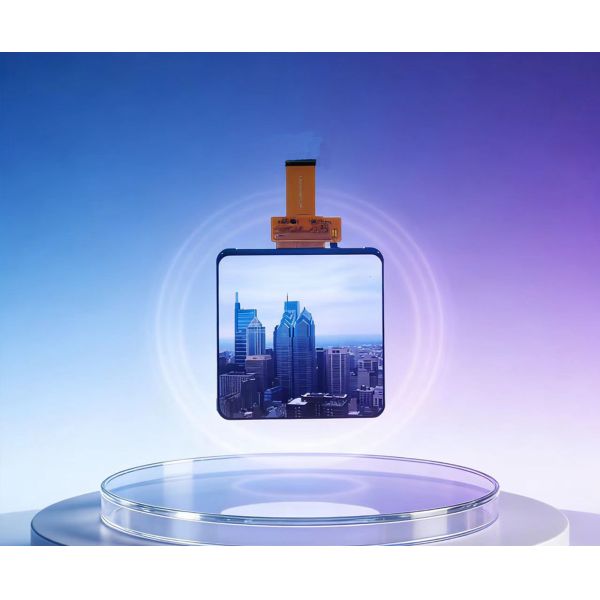

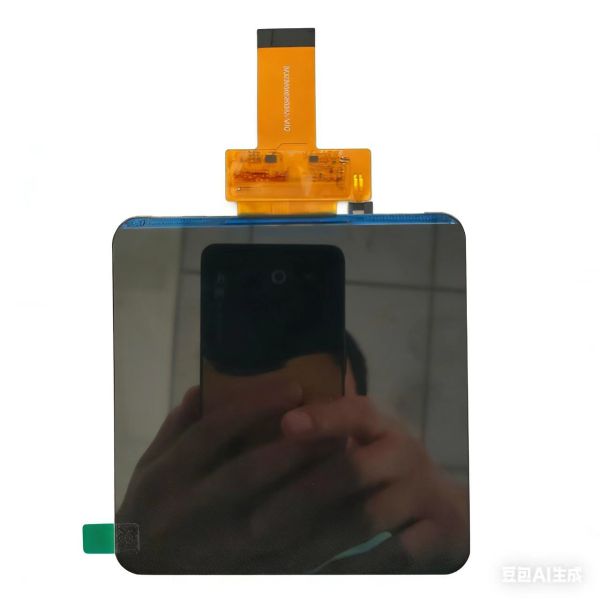

Product Images

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC

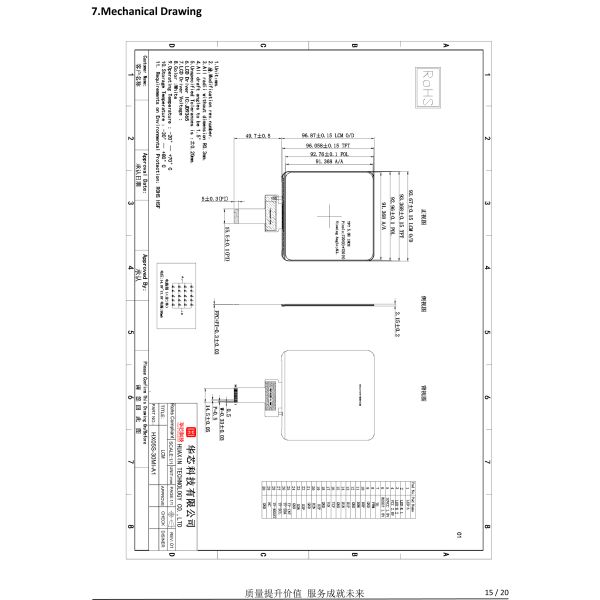

Technicl drawing

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC


TFT Technology Overview
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
