Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Mini Transparent Oled AMOLED Display Module
Specifications
Brand Name :
HuaXin
Model Number :
ESHX0205FPOINO11-C001A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50K per month
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AMOLED display Module
name :
color OLED
size :
2.5"
resolution :
368*488
Brightness :
800cd/m2
interface :
mipi QSPI
Description
1.51 Inch Transparent OLED Panel Mini Transparent OLED Display
1.51-inch transparent OLED display with 128×56 resolution, 24-pin plug-in interface. Ideal for smart windows, creative electronics, and self-luminous transparent screen applications.
Product Parameters
Attribute Value
Display Technology AMOLED Display Module
Resolution 128×56
Screen Size 1.51 inch
Display Color Blue
Pin Count 24PIN
Interface 3-bit68XX/80XXParallel4-wireSPl 12C
Active Area 35.05×15.32 mm
Module Size 42.04×27.22×1.25 mm
Driver IC SSD1309
Part Number HX2856KLBG01

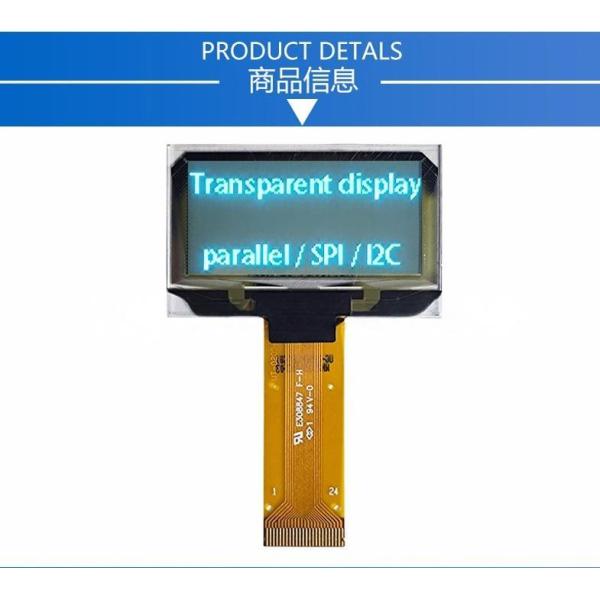

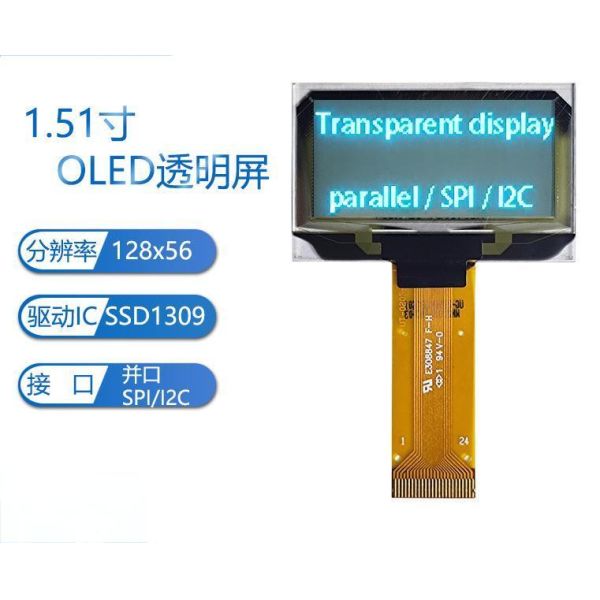

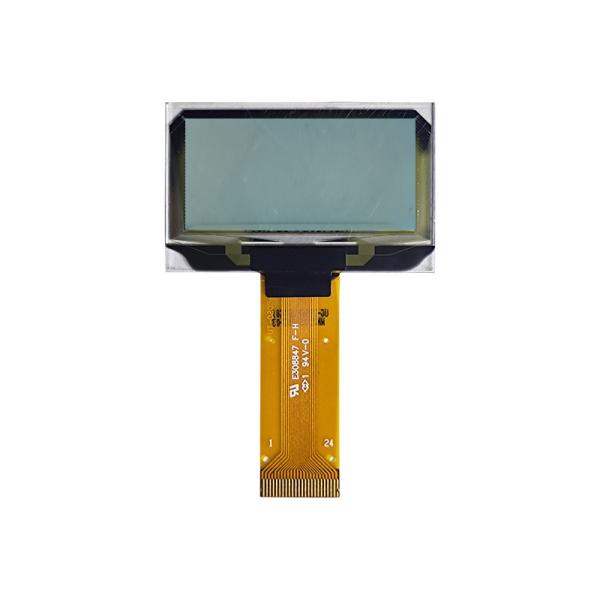

Product Images
Mini Transparent Oled AMOLED Display Module Mini Transparent Oled AMOLED Display Module Mini Transparent Oled AMOLED Display Module Mini Transparent Oled AMOLED Display Module Mini Transparent Oled AMOLED Display Module
Drawing and Pin Definition
Mini Transparent Oled AMOLED Display Module Mini Transparent Oled AMOLED Display Module
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • More expensive than LCD and TFT
  • Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantage
  • Factory base located at inland city with cost-effective operations
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineers with over 20 years experience in LCD field
  • Custom product design capabilities
Our Certificates
ISO14001 / ISO9001 / IATF16949 / SGS of LCD module
Company Details
  • Huaxin Technology (Enshi) Co., LTD
  • Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • Contrast Ratio
  • Color Accuracy and Vibrancy
  • Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Response Time
Power Efficiency Comparison
Power Consumption
  • AMOLED displays consume power per-pixel, with dark content using minimal power
  • LCD/LED displays require constant backlight power regardless of content
Content Dependency
  • AMOLED more efficient for dark content as pixels can be turned off
  • LCD/LED power consumption remains constant regardless of content
Brightness Control
  • AMOLED can adjust pixel brightness individually for better efficiency
  • LCD/LED typically have fixed backlight brightness
Display Size
  • AMOLED more efficient for smaller displays as consumption scales with pixels
  • Larger LCD/LED may require more power-hungry backlights
