13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
Specifications
Brand Name :
HuaXin
Model Number :
LP133QX1-EPA1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
50
Price :
$298
Payment Terms :
T/T
Supply Ability :
50K per month
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
Flexible Amoled
name :
oled display
size :
13.3"
resolution :
2048*1536
Brightness :
300cd/m2
interface :
40PIN eDP
View angle :
All
Description
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 oncell touch EDP interface
Product Parameters
Part No. LP133QX1-EPA1
Display Size 13.3 inch flexible AMOLED
Outline Size (mm) 213.80*284.80*0.53
AA Size (mm) 202.752*270
Resolution 2048*1536
Interface 40PIN eDP
Brightness 300c/d
View Angle ALL

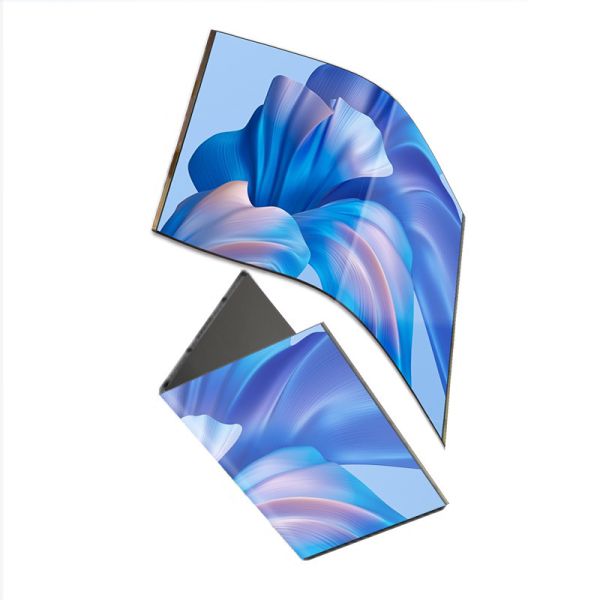

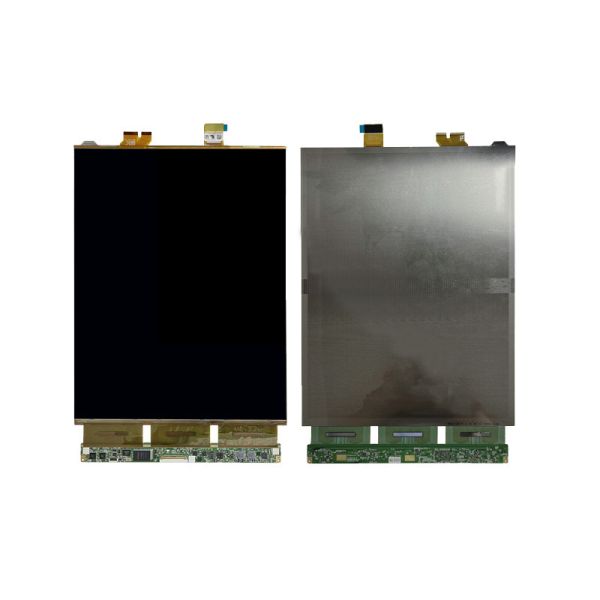

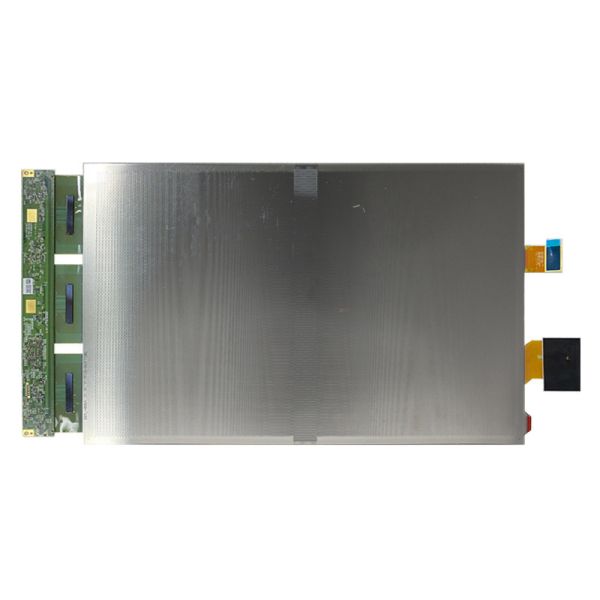

Product Images

13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness

13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness

13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness

13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness

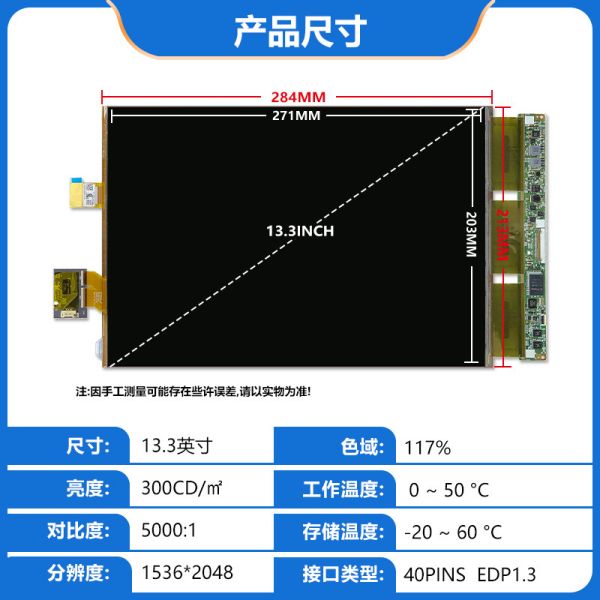

Drawing & Pin Definition


OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio
  • Excellent color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & navigation devices
  • Collimators & medical equipment
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thin and flexible design
  • Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
  • Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
  • Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
