1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
Specifications
Payment Terms :
T/T
name :
TFT color display
Driving IC :
OTA5182A
Brand Name :
HuaXin
Backlight :
2LEDS
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Model Number :
HX15WH010J
interface :
RGB 8bit
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
6 o' clock
resolution :
480(RGB)*240
Place of Origin :
China
Operating Temperature :
-20~70℃
Price :
negotiation
size :
1.5"
Supply Ability :
100K per month
Display Technology :
IPS TFT LCD Screen
Brightness :
160
Certification :
ISO14001/ISO9001/IATF16949
Description

1.5 Inch IPS TFT Display with 480(RGB)x240 Resolution and 160nits RGB 8bit interface OTA5182A IC 2LEDS smart digital screen
Product Specifications
Part NO. HX15WH010J
Display Technology IPS TFT LCD
Diagonal Screen Size 1.5 inch
Active Area (mm) 29.76(W)X22.32(H)
Panel size(mm) 37.10(W)X32.70(H)X2.50(T)
Brightness(cd/m2) 160
Resolution 480(RGB)*240
Interface RGB 8bit
View angle 6 o' clock
Driving IC OTA5182A

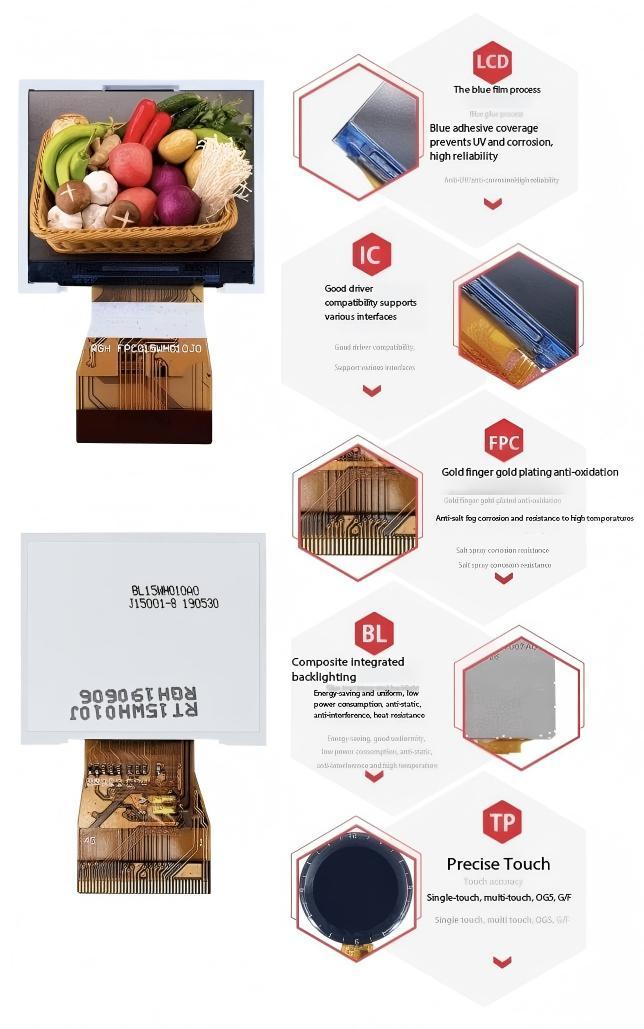

Product Picture

1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display


1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display

1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display

1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display

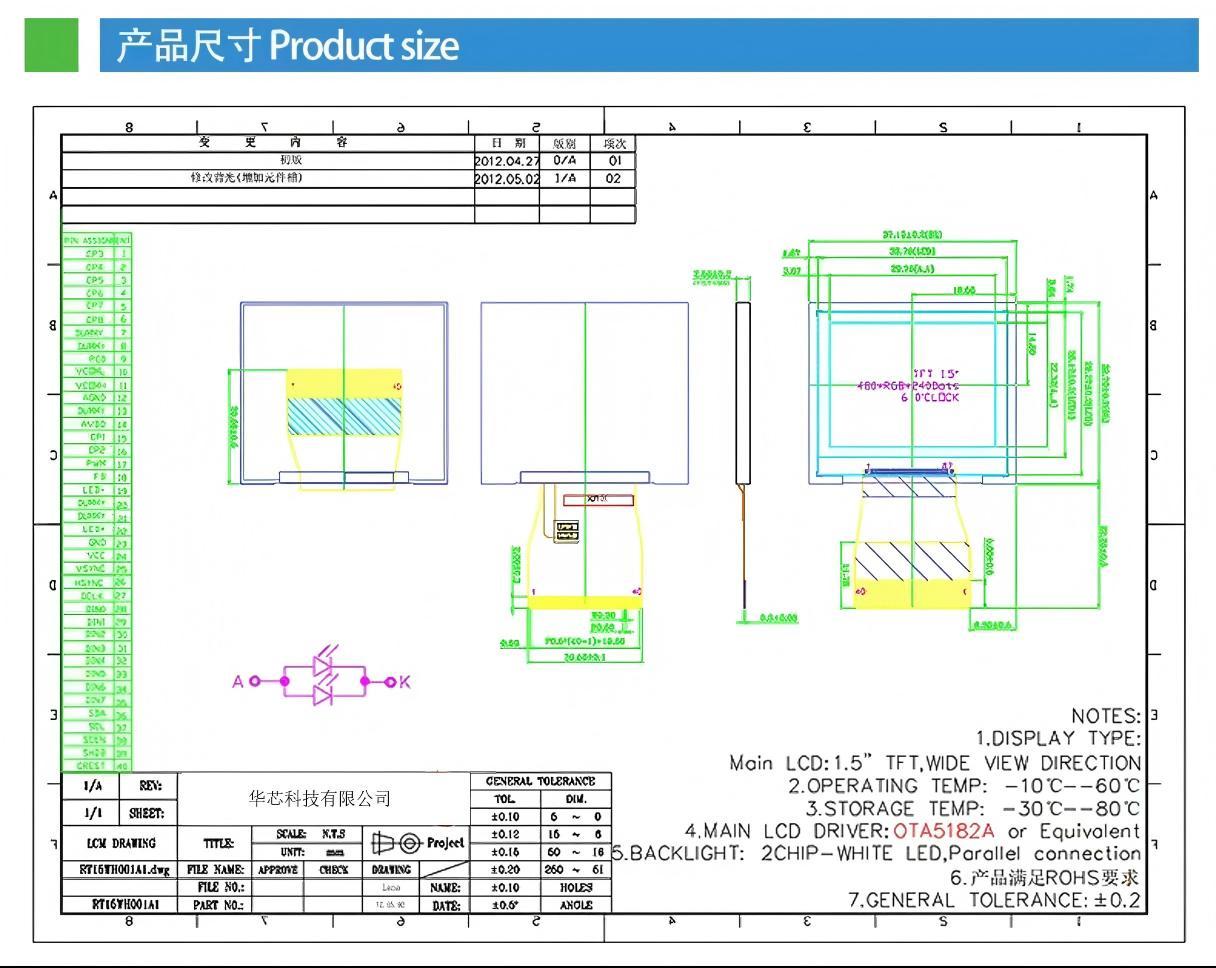

Technical Drawing

1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display

1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display




TFT Technology Overview
1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display 1.5 Inch IPS TFT LCD Screen with 480(RGB)x240 Resolution and RGB 8bit Interface Smart Digital Display
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
