10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
Specifications
Price :
negotiation
size :
10.66"
Model Number :
HX106001A
interface :
MIPI
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
ALL 0' clock
Payment Terms :
T/T
name :
TFT LCD MODULE
Driving IC :
ICNL9707
resolution :
462(RGB)*1920
Certification :
ISO14001/ISO9001/IATF16949
Supply Ability :
100K per month
Display Technology :
IPS TFT
Place of Origin :
China
Brand Name :
HuaXin
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Description
10.66 inch TFT LCD Module, 462RGBx1920 resolution , MIPI Interface,IPS screen,500 brightness, Driving IC ICNL9707 18LEDS
Product Specifications
Part NO.HX106001A
Display TechnologyIPS TFT LCD
Diagonal Screen Size10.66inch
Active Area (mm)226.25(H)X54.44(V)
Panel size(mm)249.40(H)X66.0(V)X4.5(T)
Brightness(cd/m2)500
Resolution462(RGB)*1920
InterfaceMIPI
View angleALL o'clock
Driving IC ICNL9707

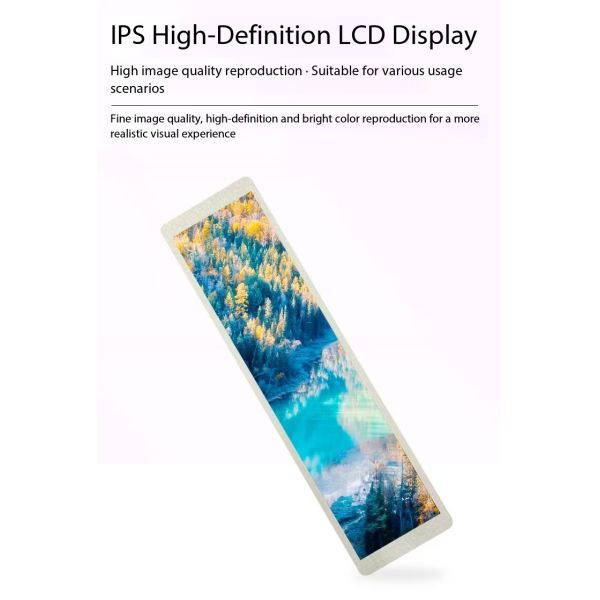

Product Picture





10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display

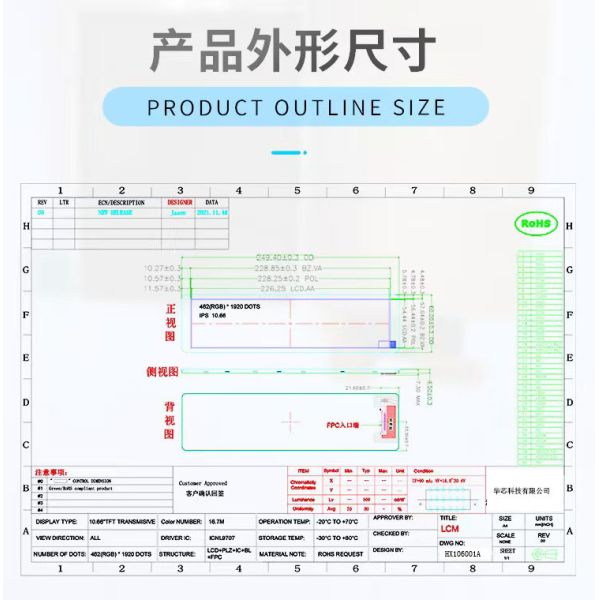

Technical Drawing


10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display

TFT Technology Overview
10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display 10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
