Specifications
Model Number :
HX0345S001
name :
TFT LCD MODULE
Payment Terms :
T/T
interface :
MIPI
Price :
negotiation
view angle :
ALL 0' clock
Supply Ability :
100K per month
Certification :
ISO14001/ISO9001/IATF16949
size :
3.45"
MOQ :
1000
Delivery Time :
6weeks~8weeks
Driving IC :
ST7701S
Place of Origin :
China
resolution :
480*640
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Brand Name :
HuaXin
Display Technology :
Transflective TFT LCD
Description
3.45" Bar TFT LCD Module,480X640 Resolution, MIPI Interface, Driving IC ST7701S,ALL o'clock ,Transflective
Product Specifications
Part NO. HX0345S001
Display Technology Transflective TFT LCD
Diagonal Screen Size 3.45inch
Active Area (mm) 51.84(H)X69.12(V)
Panel size(mm) 55.44(H)X78.89(V)X2.05(T)
Brightness(cd/m2) 120
Resolution 480*640
Interface MIPI
View angle ALL o'clock
Driving IC ST7701S

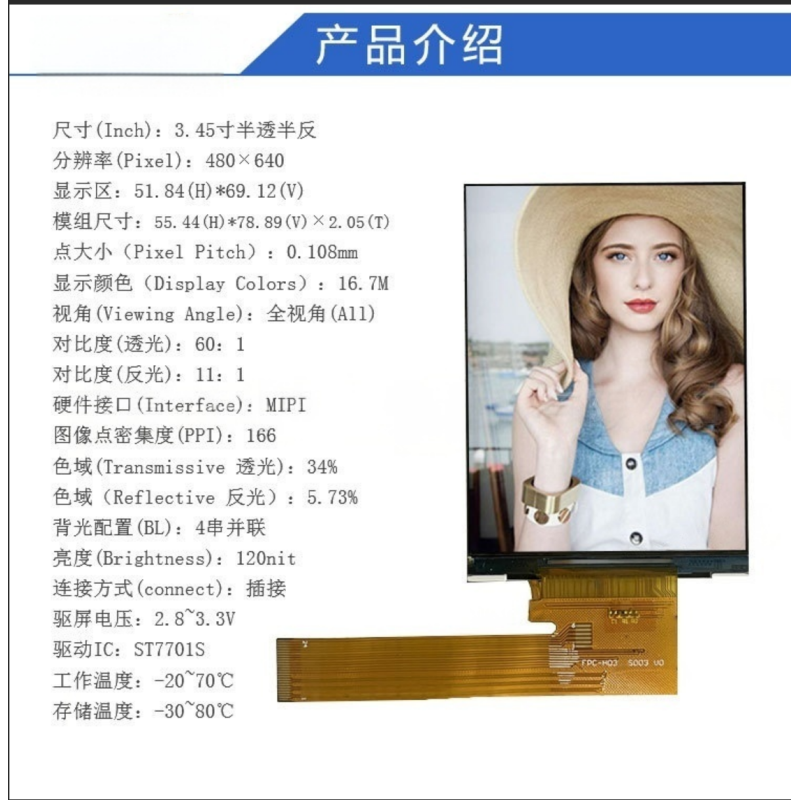

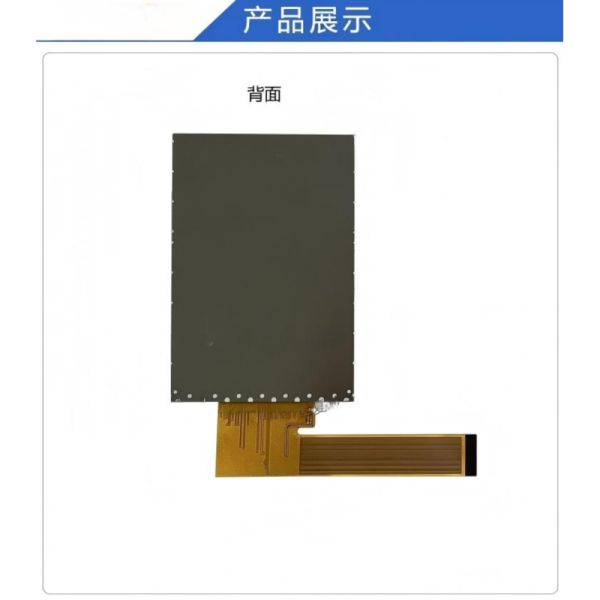

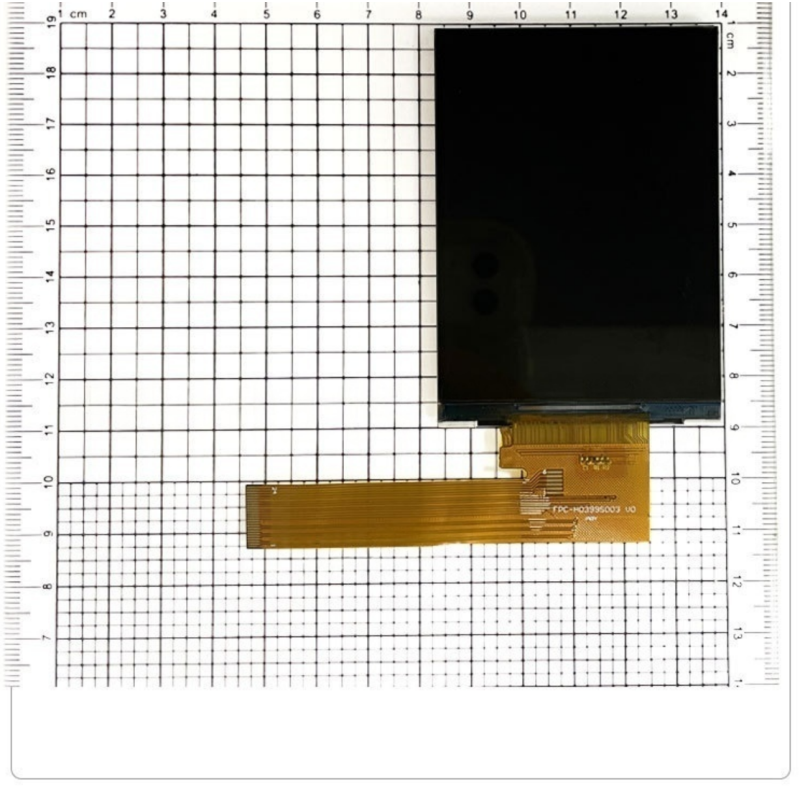

Product Picture

3.45
3.453.453.453.45

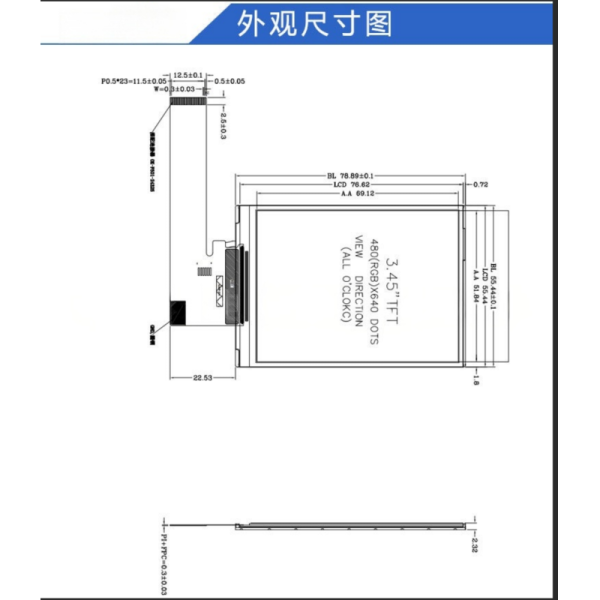

Technical Drawing

3.453.45

TFT Technology Overview
3.45 3.45
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
