Specifications
name :
IPS TFT LCD Display
size :
2.4"
resolution :
240(RGB)*320
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
100K per month
Display Technology :
LCM Module
interface :
MCU
Brand Name :
HuaXin
Model Number :
HX24QV179B
MOQ :
1000
Price :
negotiation
Delivery Time :
6weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Driving IC :
ILI9340X
view angle :
ALL 0' clock
Description
2.4" TFT LCD Module,240(RGB)X320 Resolution, MCU Interface, Driving IC ILI9340X,ALL o'clock ,4LEDS
Product Specifications
Part NO.HX24QV179B
Display TechnologyIPS TFT LCD
Diagonal Screen Size 2.4inch
Active Area (mm)36.72(H)X48.96(V)
Panel size(mm)42.72(H)X58.65(V)X2.15(T)
Brightness(cd/m2)430
Resolution240(RGB)*320
InterfaceMCU
View angle ALL o'clock
Driving IC ILI9340X

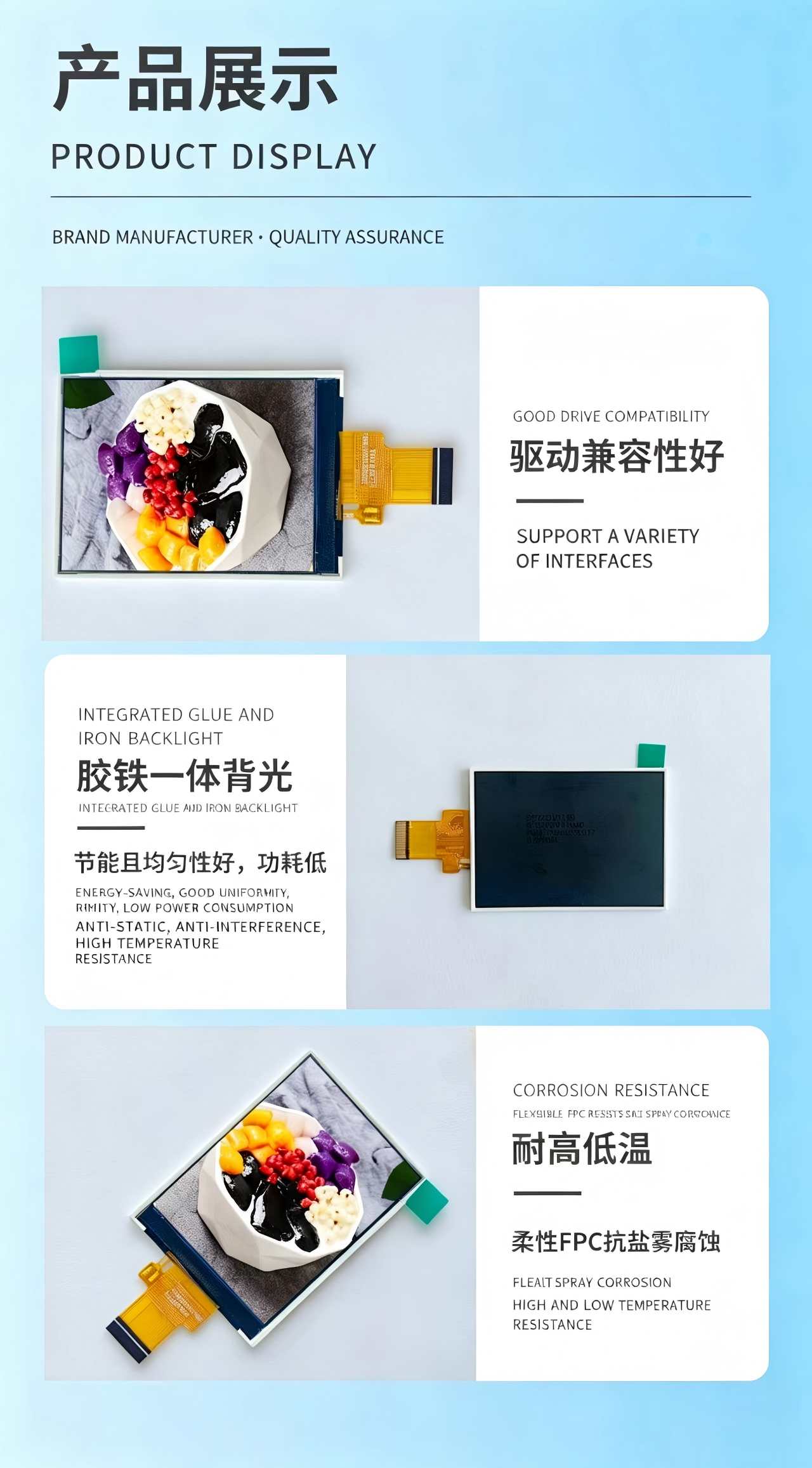

Product Picture

2.42.42.4

2.4

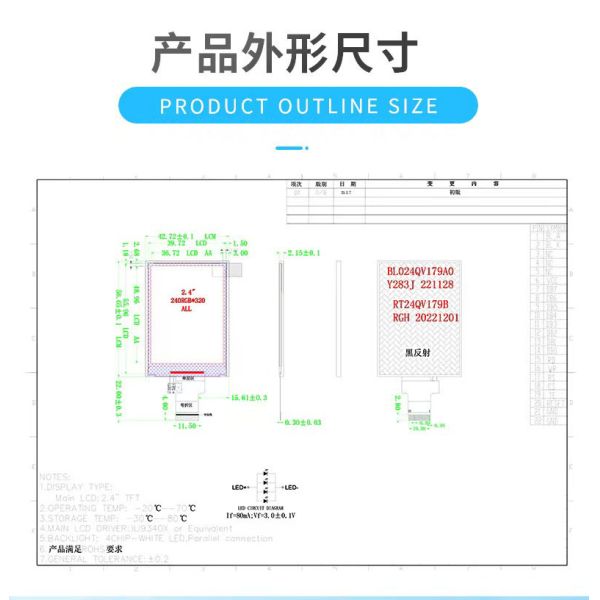

Technical Drawing


2.42.4

TFT Technology Overview
2.4 2.4
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
