Specifications
name :
TFT LCD MODULE
Model Number :
HX24QV130A
Brightness :
210nit
Backlight :
4LEDS
MOQ :
1000
Delivery Time :
6weeks~8weeks
Display Technology :
Transmissive /Normally Black
Brand Name :
HuaXin
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
interface :
MCU 8bit
Payment Terms :
T/T
view angle :
All 0' clock
Price :
negotiation
Driver IC :
ST7789V
Supply Ability :
100K per month
size :
2.4"
Certification :
ISO14001/ISO9001/IATF16949
resolution :
240*320
Place of Origin :
China
Description

2.4" Transflective TFT Module with 240X320 Resolution and MCU 8bit Interface Driver IC ST7789V 210nit Sunlight Visible Outdoor Viewable Screen
Product Specifications
Part NO.HX24QV130A
Display TechnologyTransflective
Diagonal Screen Size2.4 inch
Active Area (mm)36.72(H)X48.96(V)
Panel size(mm)42.72(H)X60.16(V)X2.55(T)
Brightness(cd/m2)210
Resolution240*320
InterfaceMCU 8bit
View angleAll o'clock
Driver ICST7789V

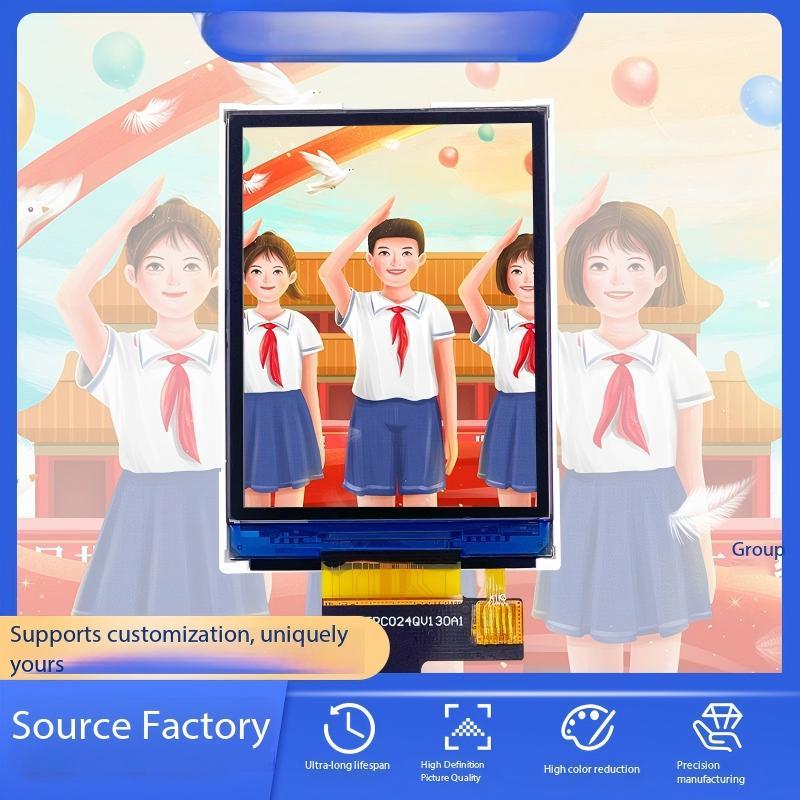

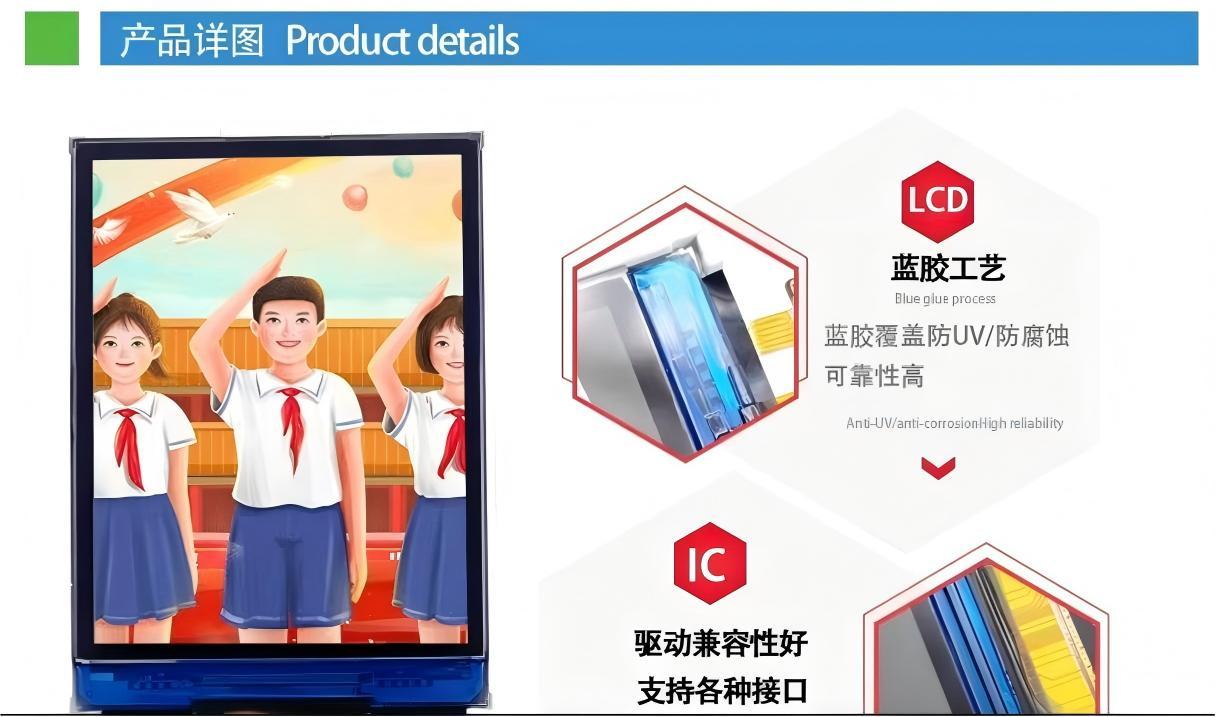

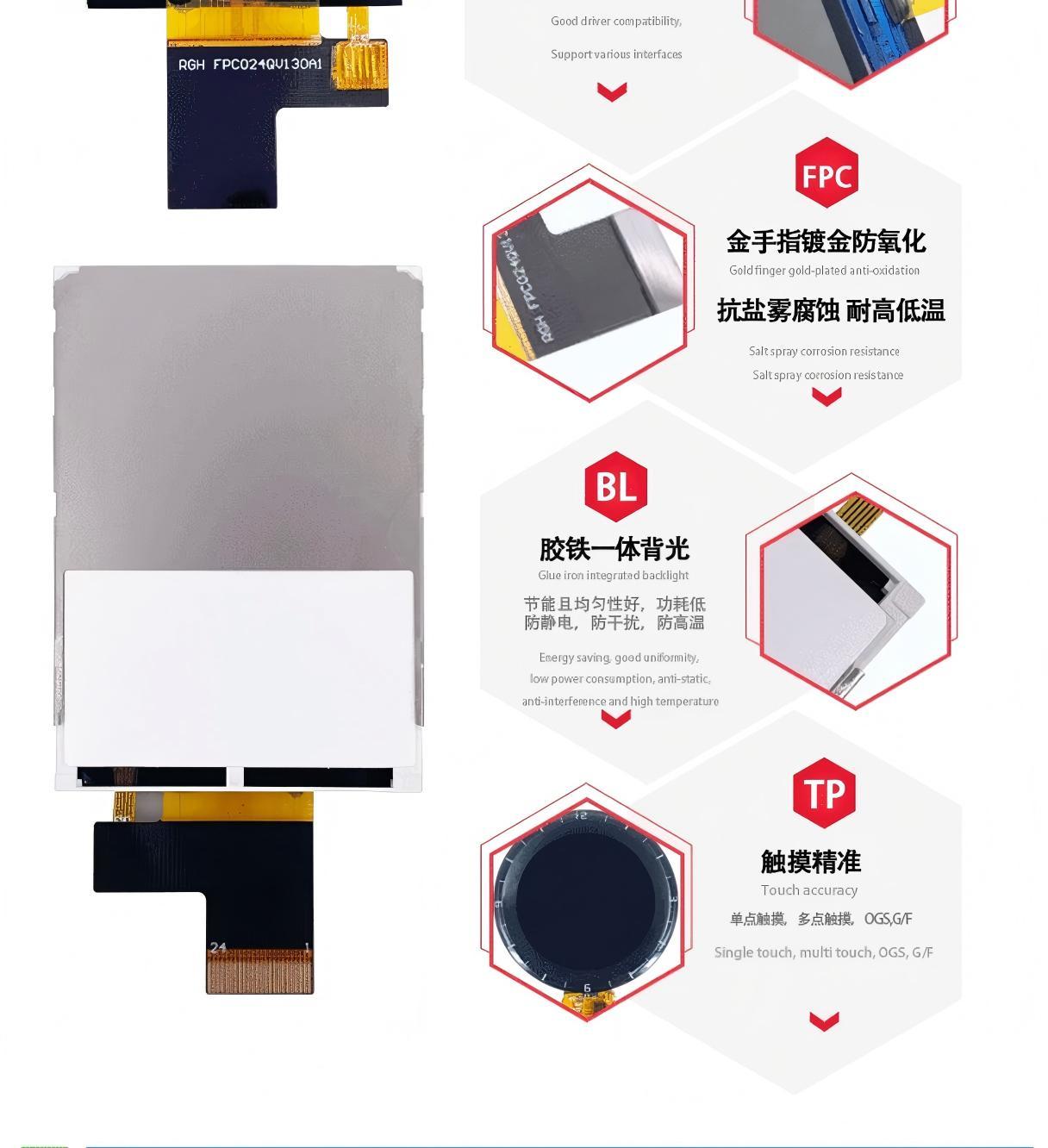

Product Picture


2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface

2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface


2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface

2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface

2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface




Technical Drawing


2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface

2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface




TFT Technology Overview
2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface 2.4 inch Sunlight Readable TFT Module with 240X320 Resolution and MCU 8bit Interface
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
