2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
Specifications
Payment Terms :
T/T
interface :
SPI
Brand Name :
HuaXin
Display Technology :
IPS TFT LCD Screen
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
OP Temperature :
-20~70
Model Number :
HX299LW001A
name :
TFT color display
MOQ :
1000
Delivery Time :
6weeks~8weeks
Driving IC :
NV3007A
Brightness :
300
Place of Origin :
China
resolution :
142*428
Price :
negotiation
view angle :
All o'clock
Supply Ability :
100K per month
Backlight :
5LEDS
Certification :
ISO14001/ISO9001/IATF16949
size :
2.99"
Description

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface Driver IC NV3007A 300nit 5LEDS Digital Electricity Display
Product Specifications
Part NO. HX299LW001A
Display Technology IPS TFT LCD
Diagonal Screen Size 2.99 inch
Active Area (mm) 21.28(W)X64.14(V)
Panel size(mm) 27.19(H)X84.8(W)X3.23(T)
Brightness(cd/m2) 300
Resolution 142*428
Interface SPI
View angle All o'clock
Driving IC NV3007A

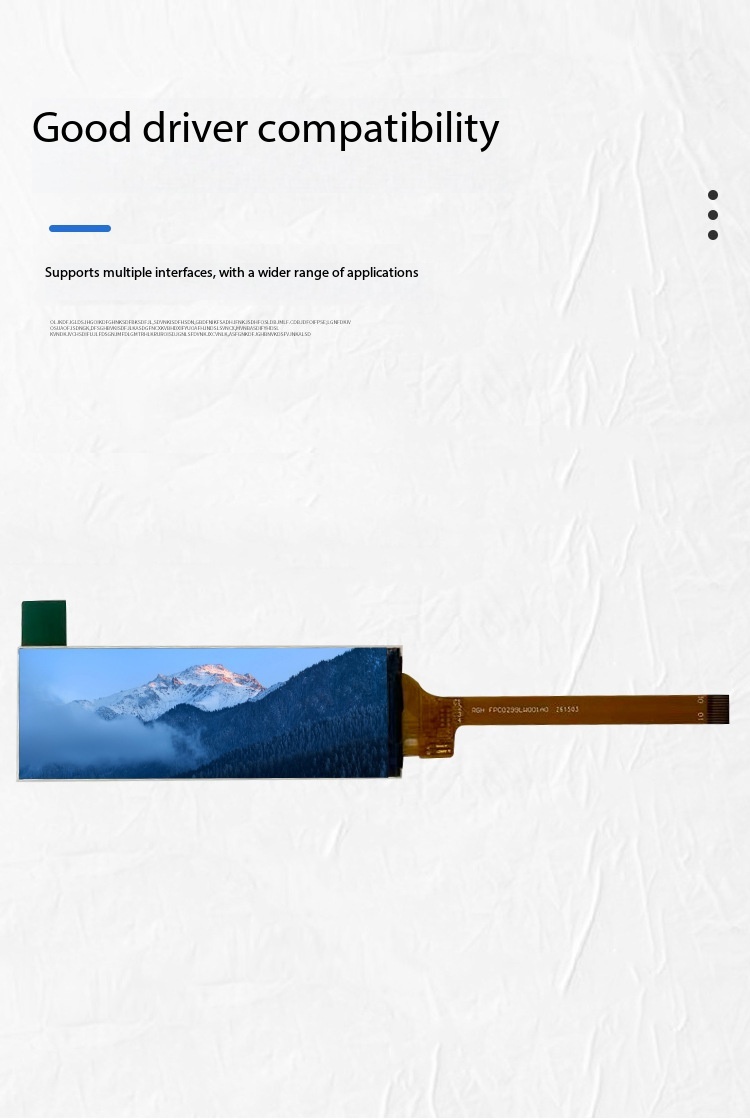

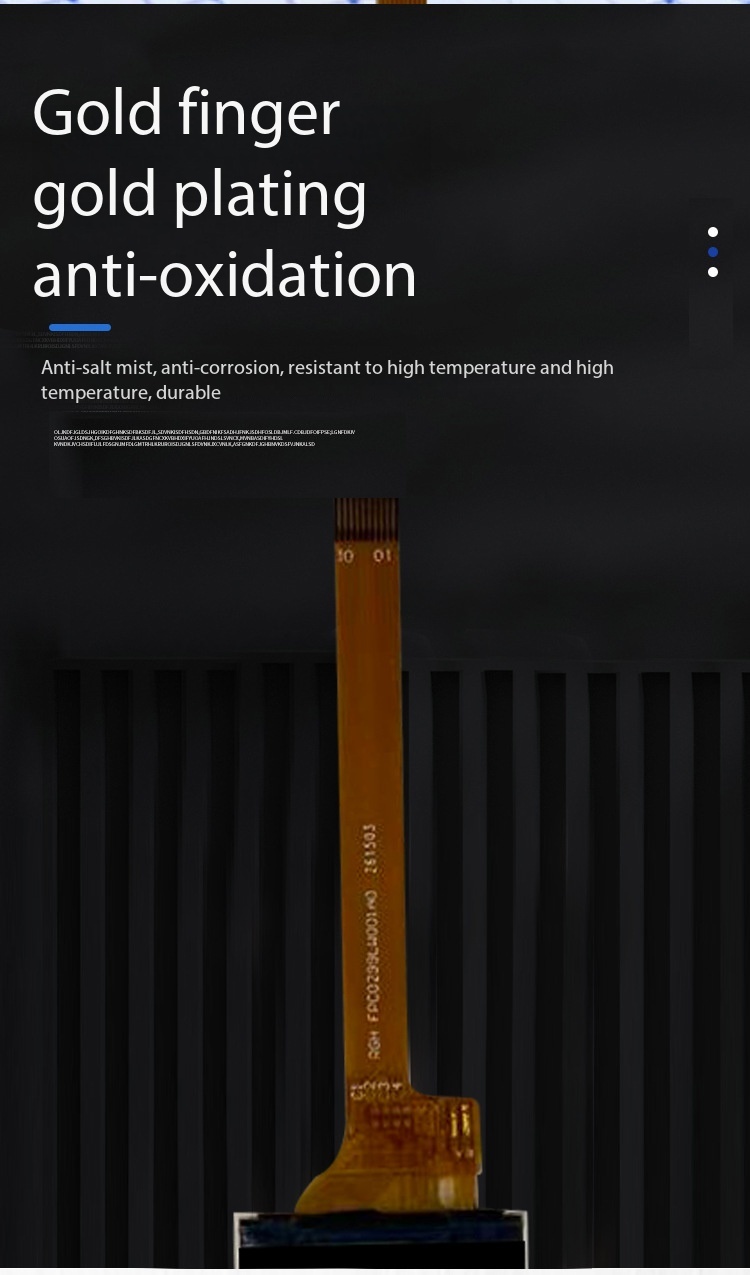

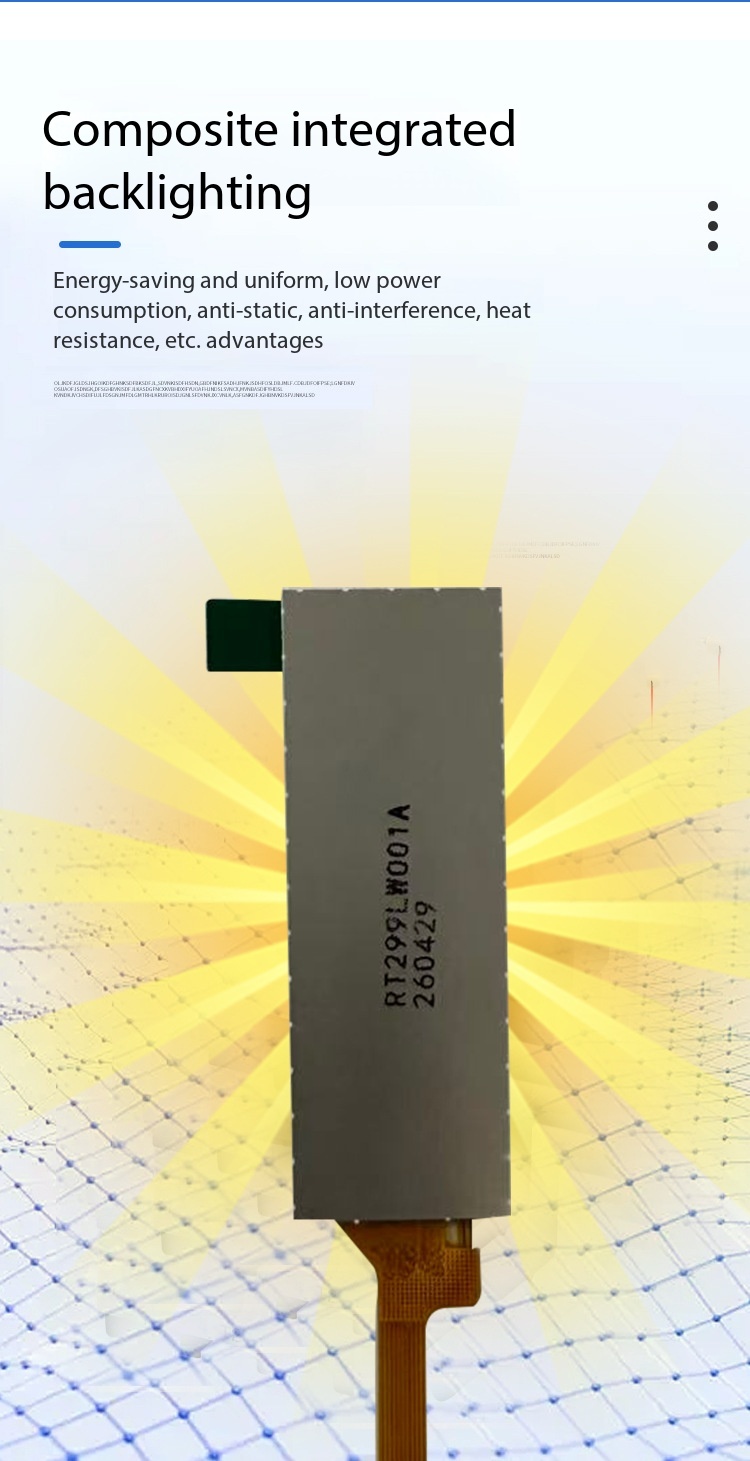

Product Picture


2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

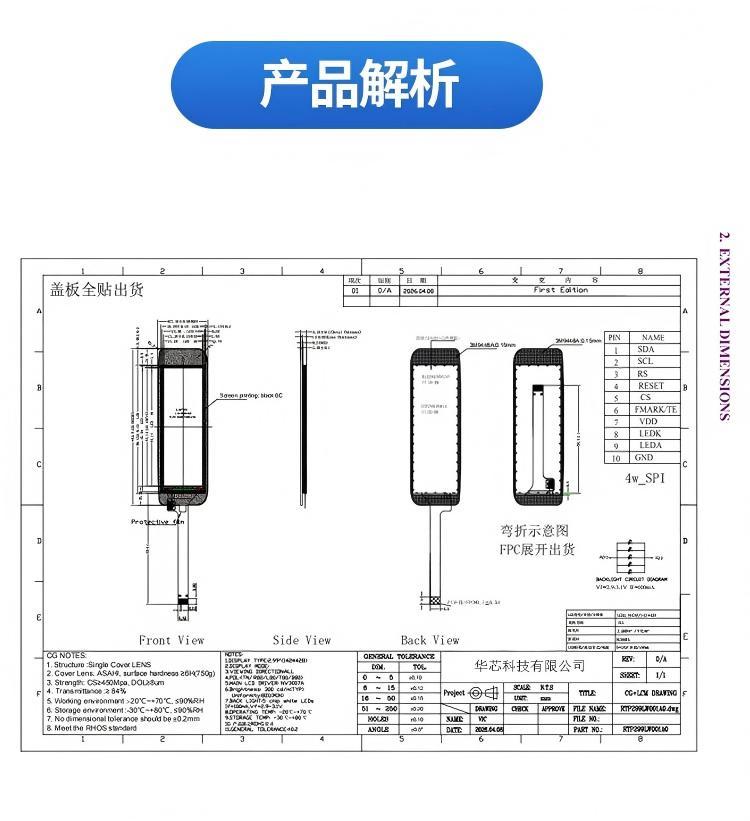

Technical Drawing


2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface

2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface


TFT Technology Overview
2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface 2.99 Inch IPS TFT Color Display with 142*428 Resolution and SPI Interface
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
