14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
Specifications
Model Number :
HX147-30LB-A1
name :
big size TFT
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
free view angle
Brand Name :
HuaXin
Display Technology :
Square LCD Display
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Payment Terms :
T/T
Brightness :
950C/D
Price :
negotiation
interface :
LVDS
Supply Ability :
100K per month
Certification :
ISO14001/ISO9001/IATF16949
size :
14.7"
Place of Origin :
China
resolution :
1080x1080
Description
HX147-30LB-A1 is a color active matrix TFT LCD FOB using amorphous silicon
TFT's(Thin Film Transistors) as an active switching devices. This module has a 14.7 inch
diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 16.7M colors. The TFT-LCD panel used for
this module is a low reflection and higher color type. The LED Driver for back-light
driving is built in this model. All input signals are LVDS interface compatible.
Product Specifications
Part NO.HX147-30LB-A1
Display TypeSquare tft display
Diagonal Screen Size14.7 inch square TFT display
Active Area (mm)260.28(H)*269.24V
Panel size(mm)276.86Xx285.86
Resolution1080x1080
InterfaceLVDS
View angleALL
Brightness950C/D
Driving IC N/A

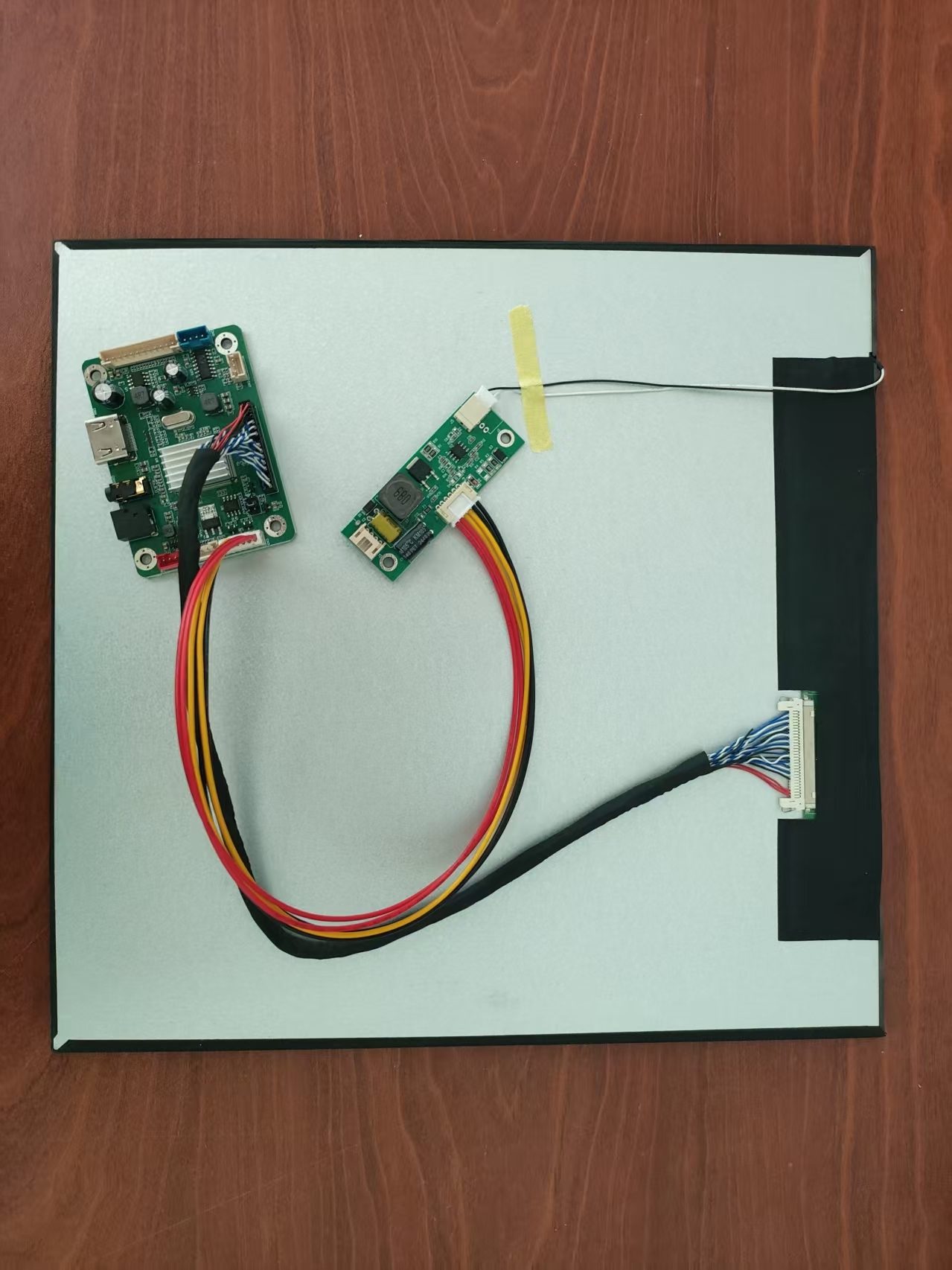

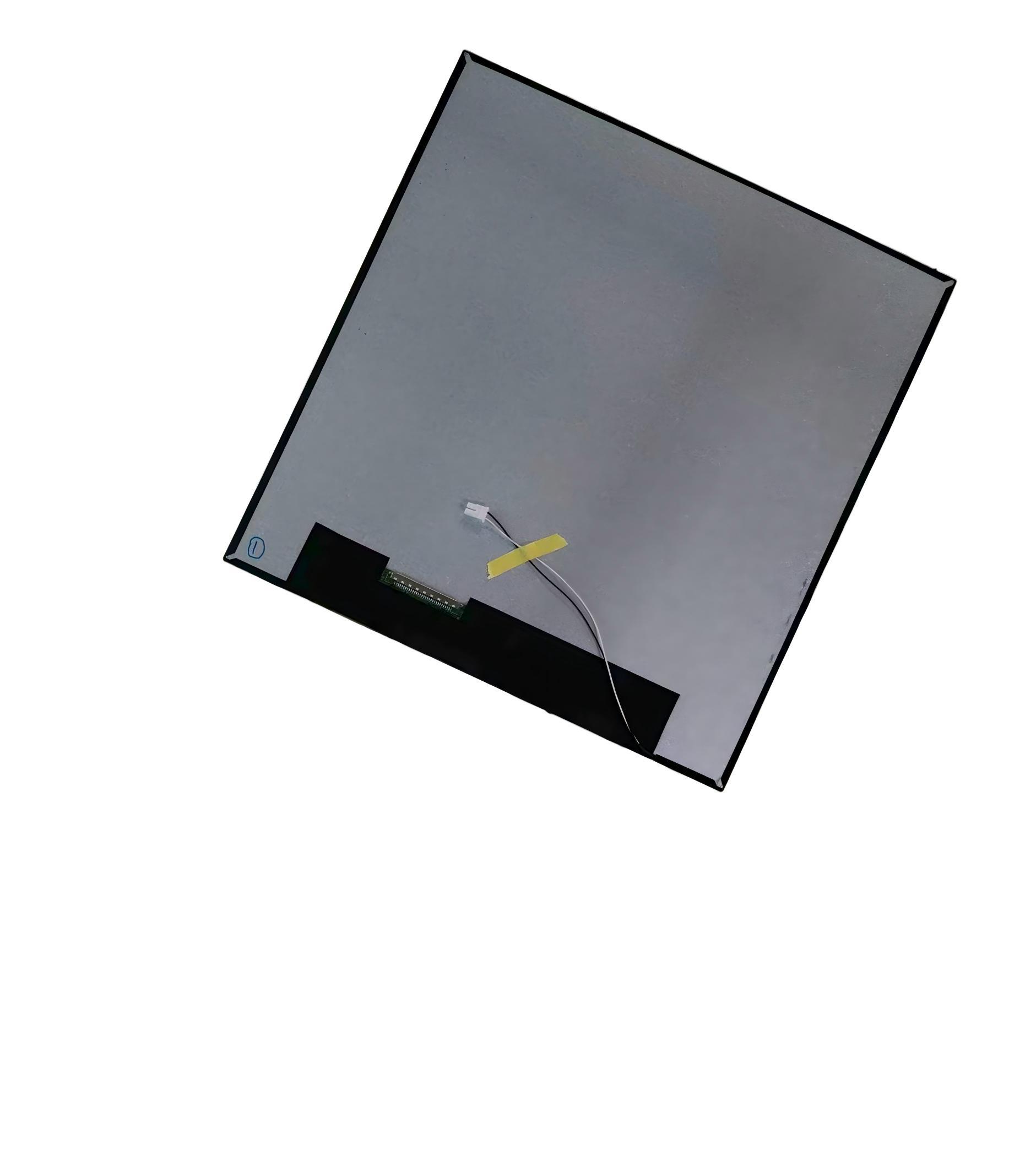

Product Images

14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface

14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface

14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface

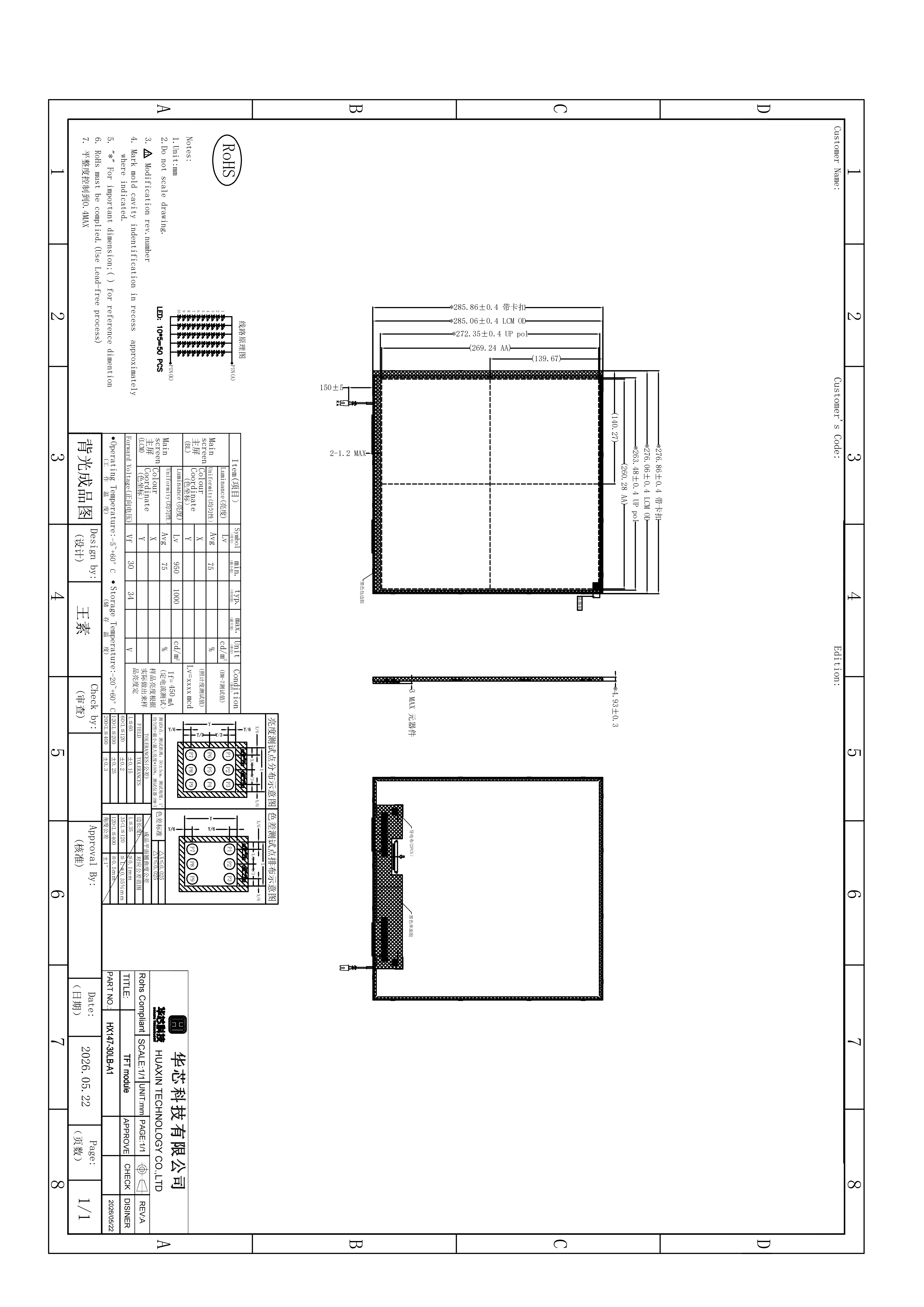

Technical Drawing

14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface



TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
TFT structure diagram:
14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS LCD Module Certification
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
  • Registered Capital: 20 million
  • Current Staff: 500+ employees
  • R&D Team: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: Excellent resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Compatible with LED backlighting systems
  • Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio in certain conditions
  • Backlighting requirements affect power consumption
  • Response time limitations may cause motion blur
  • Limited flexibility in physical form factors
  • Limited color gamut compared to advanced display technologies
