Specifications
Model Number :
HX032IFW6440ANT
interface :
3SPI+18RGB
Brand Name :
HuaXin
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
ALL 0' clock
Payment Terms :
T/T
name :
TFT LCD MODULE
Driving IC :
ST7701S
Price :
negotiation
size :
3.16"
Supply Ability :
100K per month
Display Technology :
IPS TFT
Certification :
ISO14001/ISO9001/IATF16949
resolution :
320(RGB)*820
Place of Origin :
China
Description
3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view
Product Specifications
Part NO. HX032IFW6440ANT
Display Technology IPS TFT LCD
Diagonal Screen Size 3.16inch
Active Area (mm) 26.4(H)X67.65(V)
Panel size(mm) 31.2(H)X76.6(V)X2.4(T)
Brightness(cd/m2) 300
Resolution 320(RGB)*820
Interface 3SPI+18RGB
View angle ALL o'clock
Driving IC ST7701S

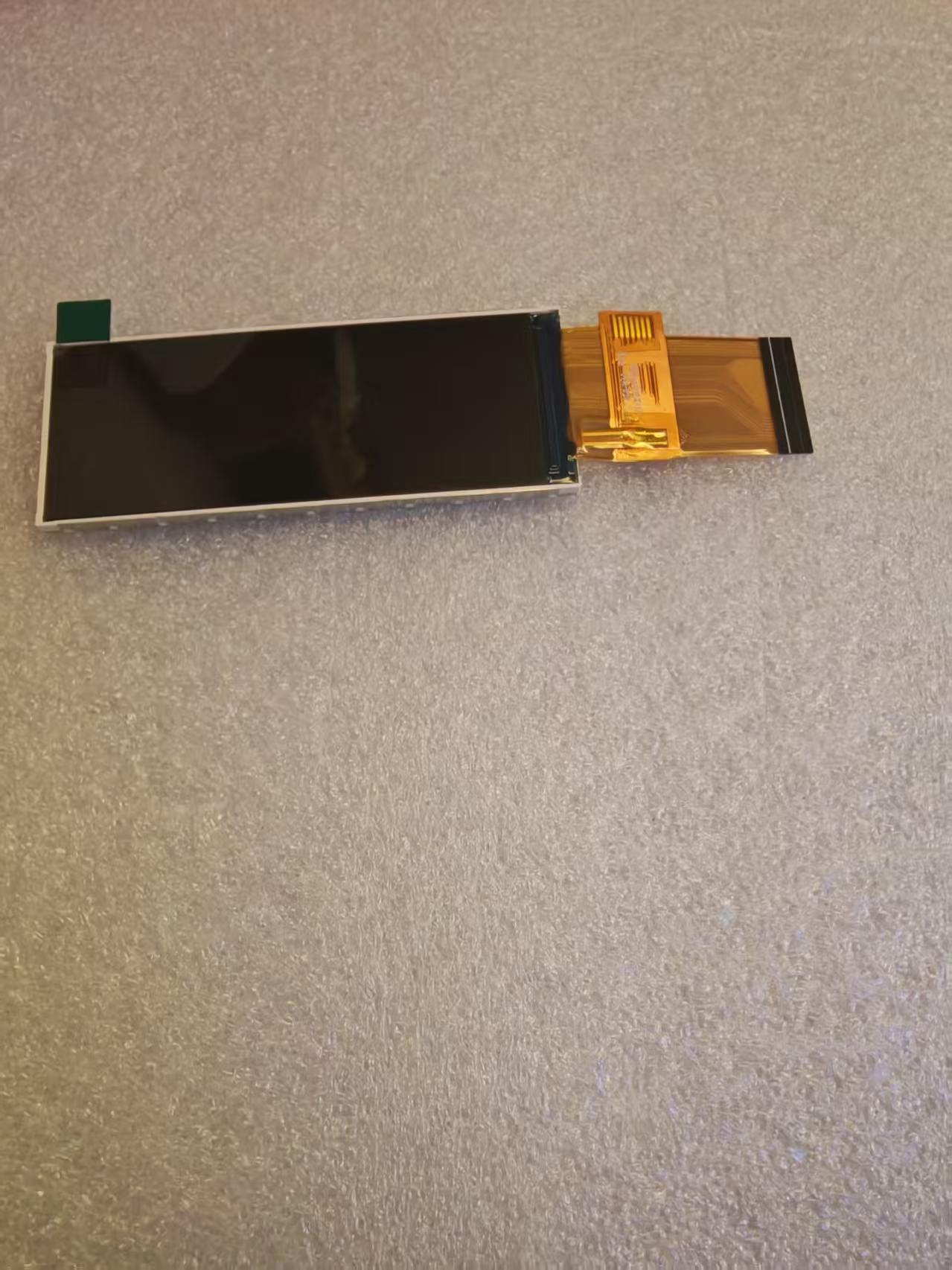

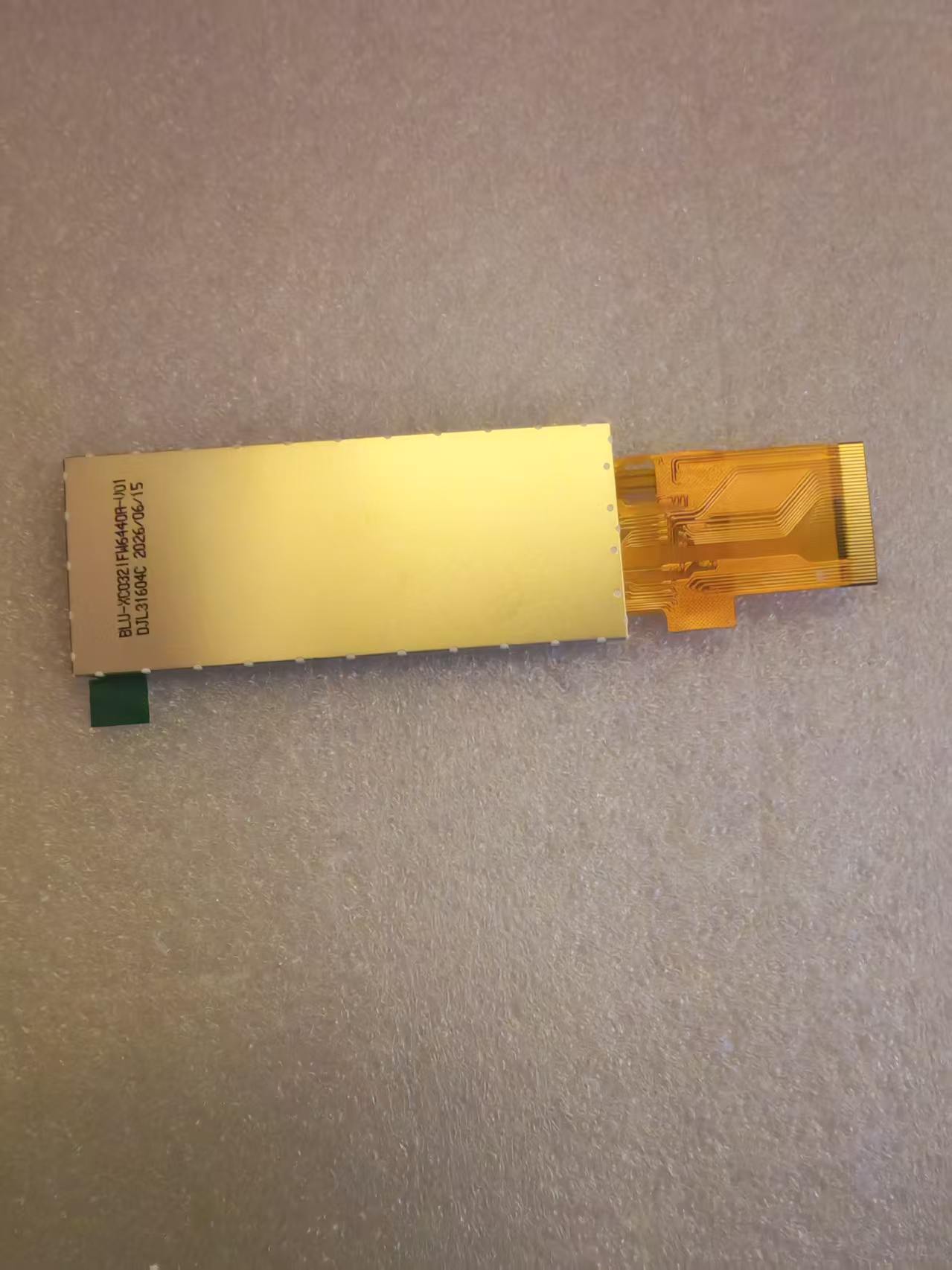

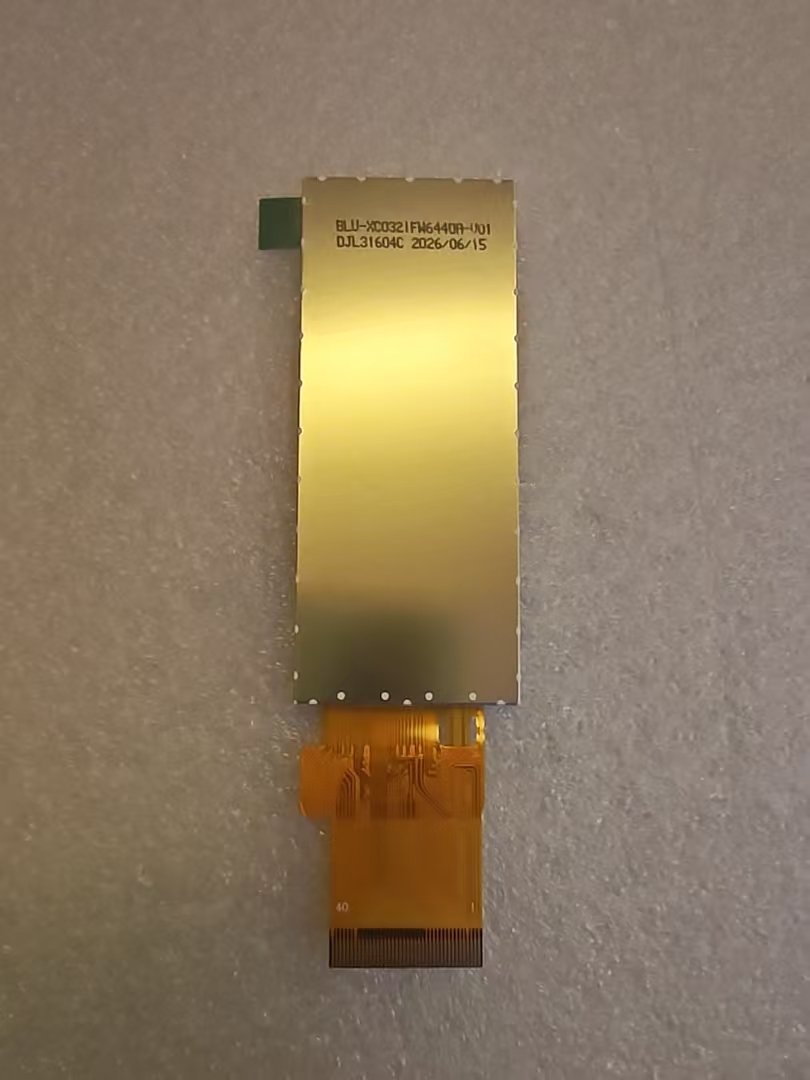

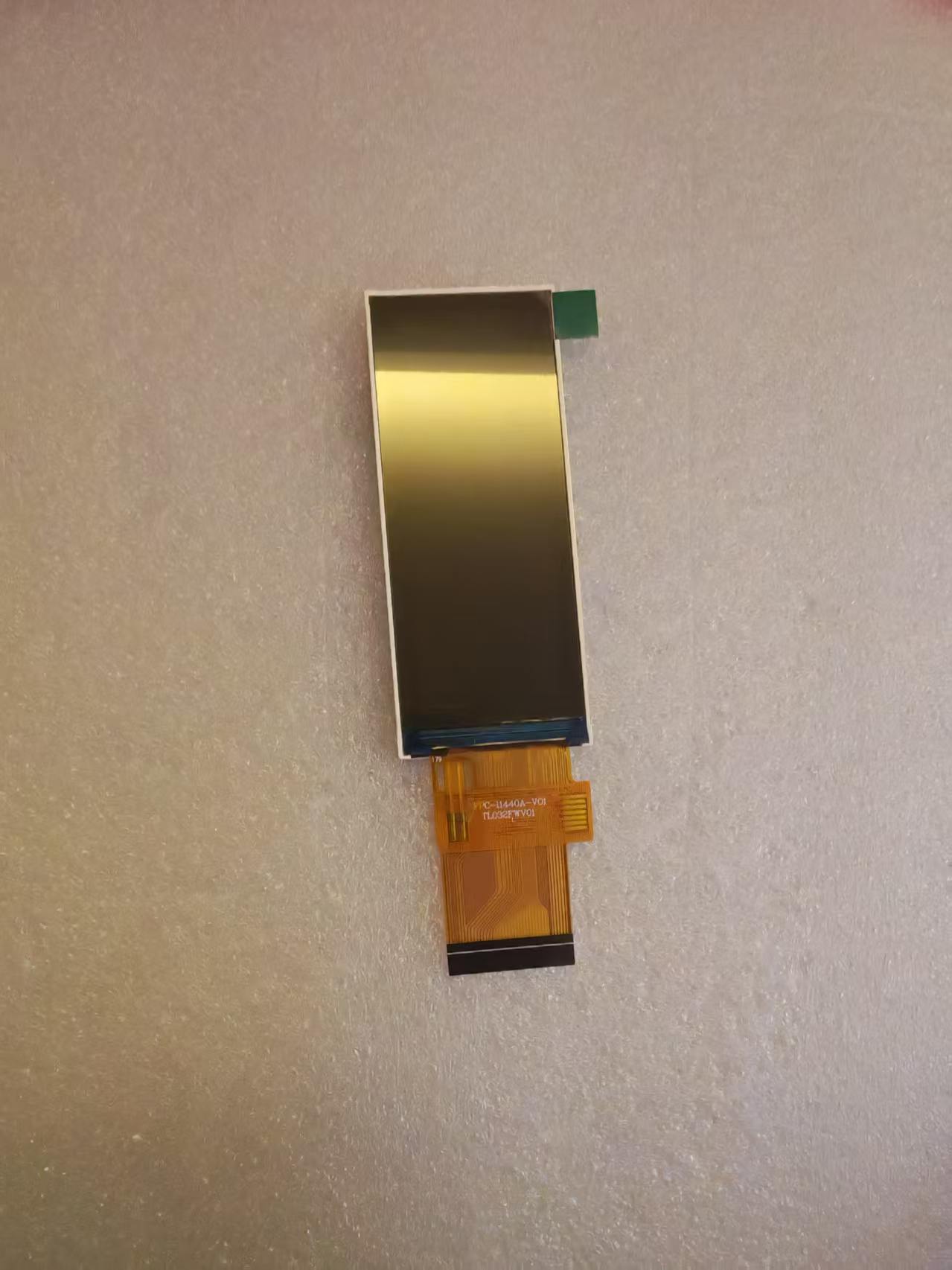

Product Picture

3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view

3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view




3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view

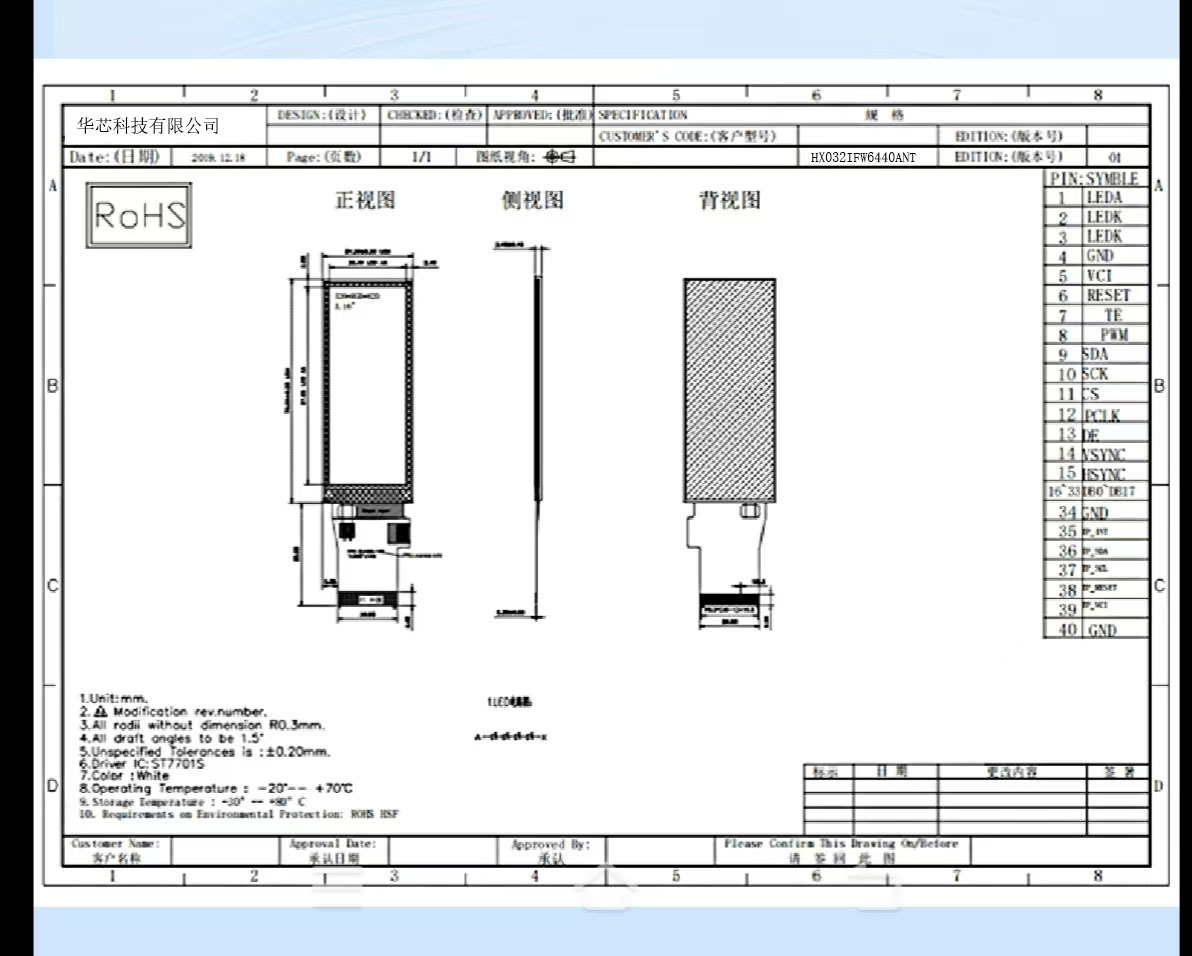

Technical Drawing


3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view

TFT Technology Overview
3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view 3.16inch IPS TFT LCD Module with 320RGBx820 Resolution and RGB+SPI Interface, Driving IC ST7701S ALL view
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
