2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
Specifications
Model Number :
HX20QV888A
interface :
MCU 16bit
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
8 0' clock
Brand Name :
HuaXin
Driver IC :
ST7789V2
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Payment Terms :
T/T
name :
TFT LCD MODULE
Brightness :
160nit
Price :
negotiation
size :
2.0"
Supply Ability :
100K per month
Display Technology :
IPS /Transflective TFT
Backlight :
3LEDS
Certification :
ISO14001/ISO9001/IATF16949
resolution :
240*320
Place of Origin :
China
Description

2.0 inch Transflective TFT Module 240X320 Resolution MCU 16bit Interface, Driver IC ST7789V2 160nit 3LEDS
Product Specifications
Part NO.HX20QV888A
Display TechnologyIPS TFT LCD
Diagonal Screen Size2.0 inch
Active Area (mm)30.60(H)X40.80(V)
Panel size(mm)36.72(H)X52.74(V)X2.40(T)
Brightness(cd/m2)160
Resolution240*320
InterfaceMCU 16bit
View angle8 o'clock
Driver ICST7789V2

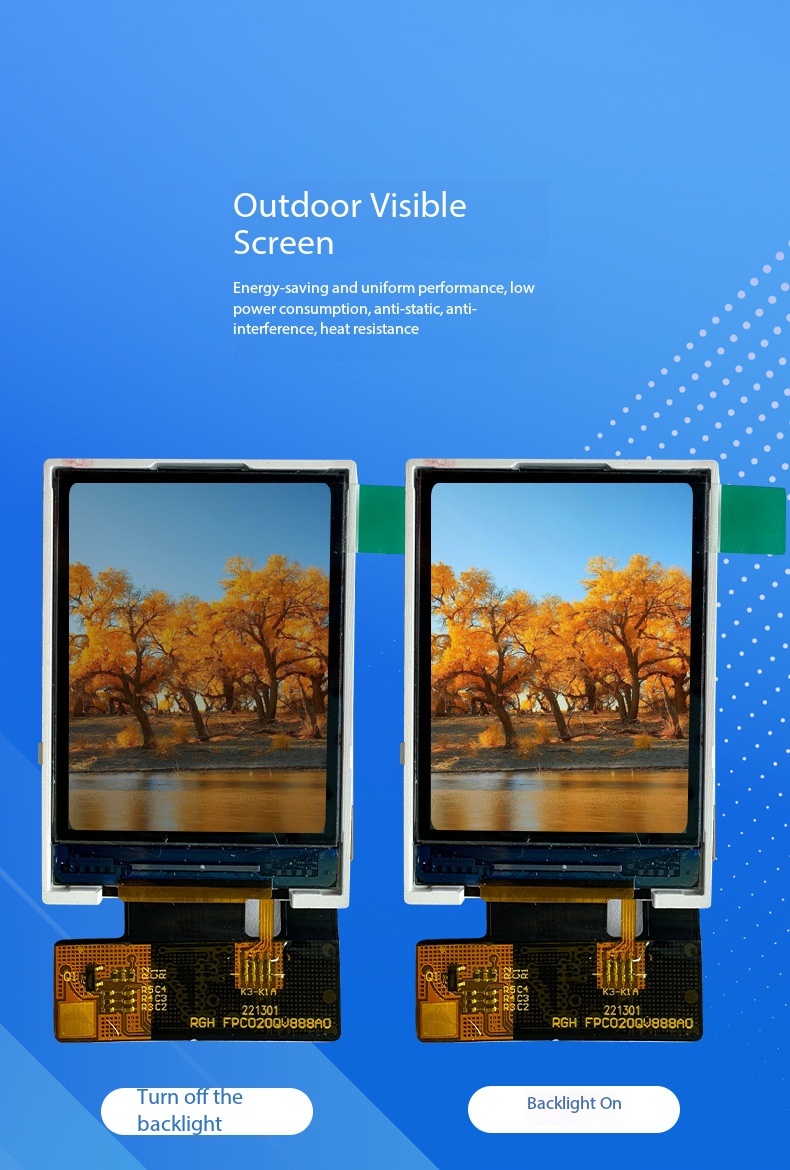

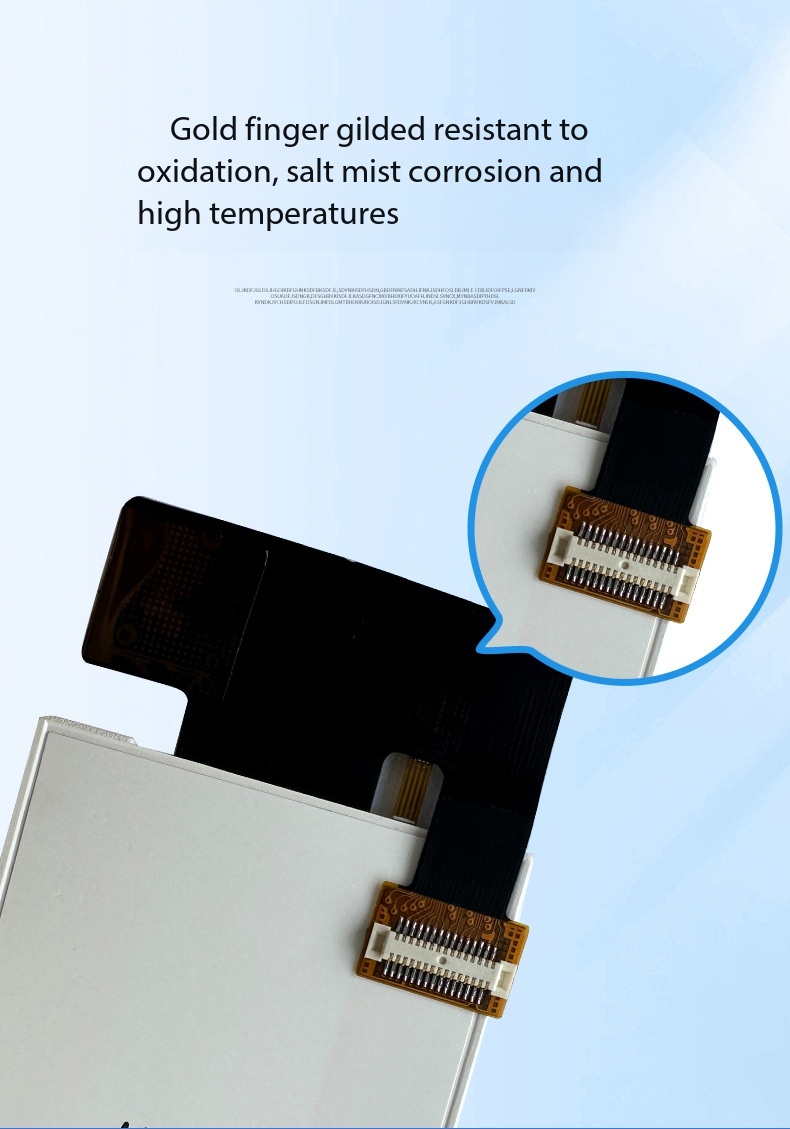

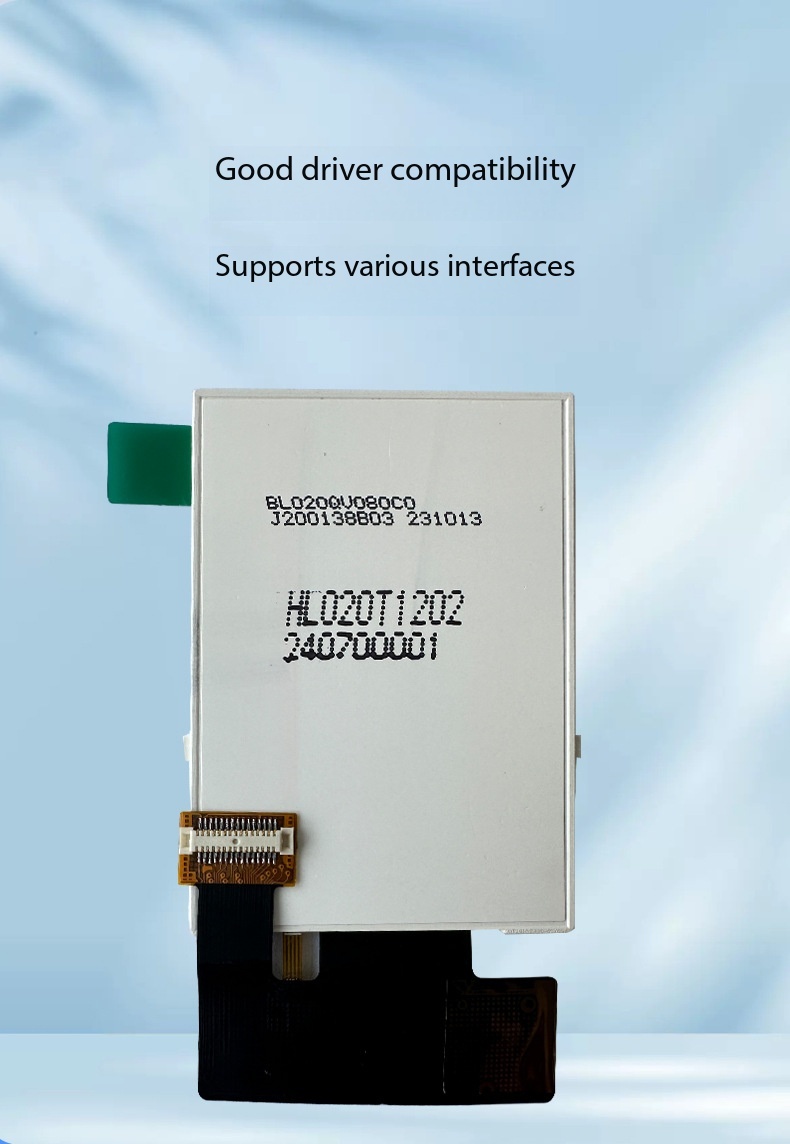

Product Picture

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface


2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface

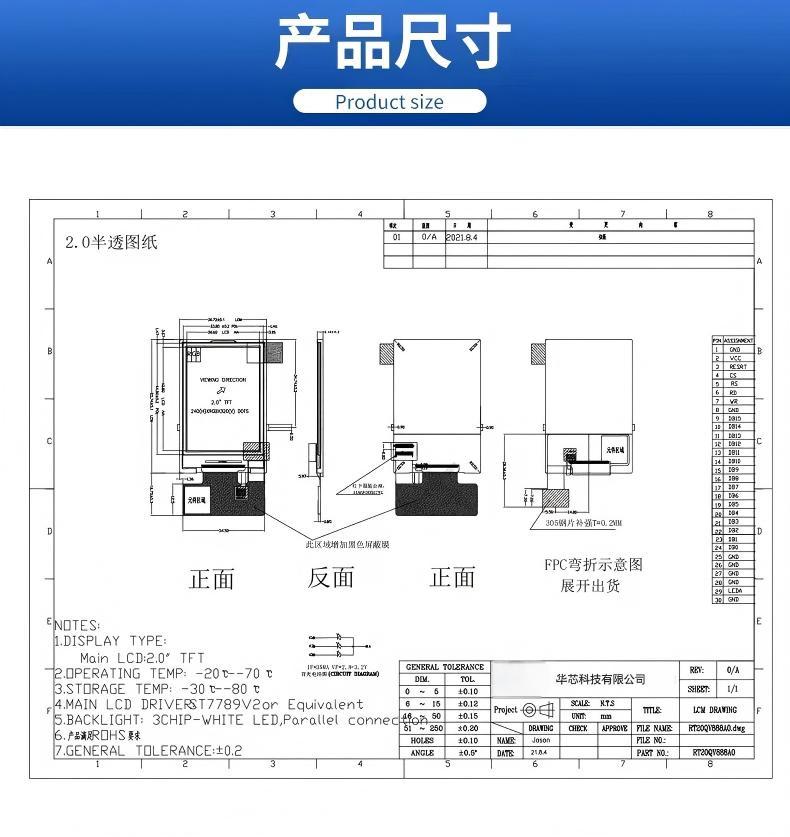

Technical Drawing

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface

2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface



TFT Technology Overview
2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface 2.0 inch Transflective TFT Module with 240X320 Resolution and MCU 16bit Interface
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
