Specifications
Model Number :
HX147-30LB-A1
name :
TFT LCD MODULE
MOQ :
1000
Delivery Time :
6weeks~8weeks
Driving IC :
Source Driver (2 chip cascade)
Brand Name :
HuaXin
Display Technology :
IPS TFT
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Payment Terms :
T/T
interface :
2-port LVDS
Supply Ability :
100K per month
Certification :
ISO14001/ISO9001/IATF16949
size :
14.7"
Price :
negotiation
view angle :
85/85/85/85
Place of Origin :
China
resolution :
1080*1080
Description
14.7" Transmissive IPS TFT Module,1080X1080 Resolution,2-port LVDS Interface, Source Driver(2 chip cascade),85/85/85/85,950nit
Product Specifications
Part NO.HX147-30LB-A1
Display TechnologyIPS TFT LCD
Diagonal Screen Size14.7 inch
Active Area (mm)260.28(H)X269.24(V)
Panel size(mm)276.86(H)X285.86(V)X5(T)
Brightness(cd/m2)950
Resolution1080*1080
Interface2-port LVDS
View angle85/85/85/85
Driving ICSource Driver (2 chip cascade)

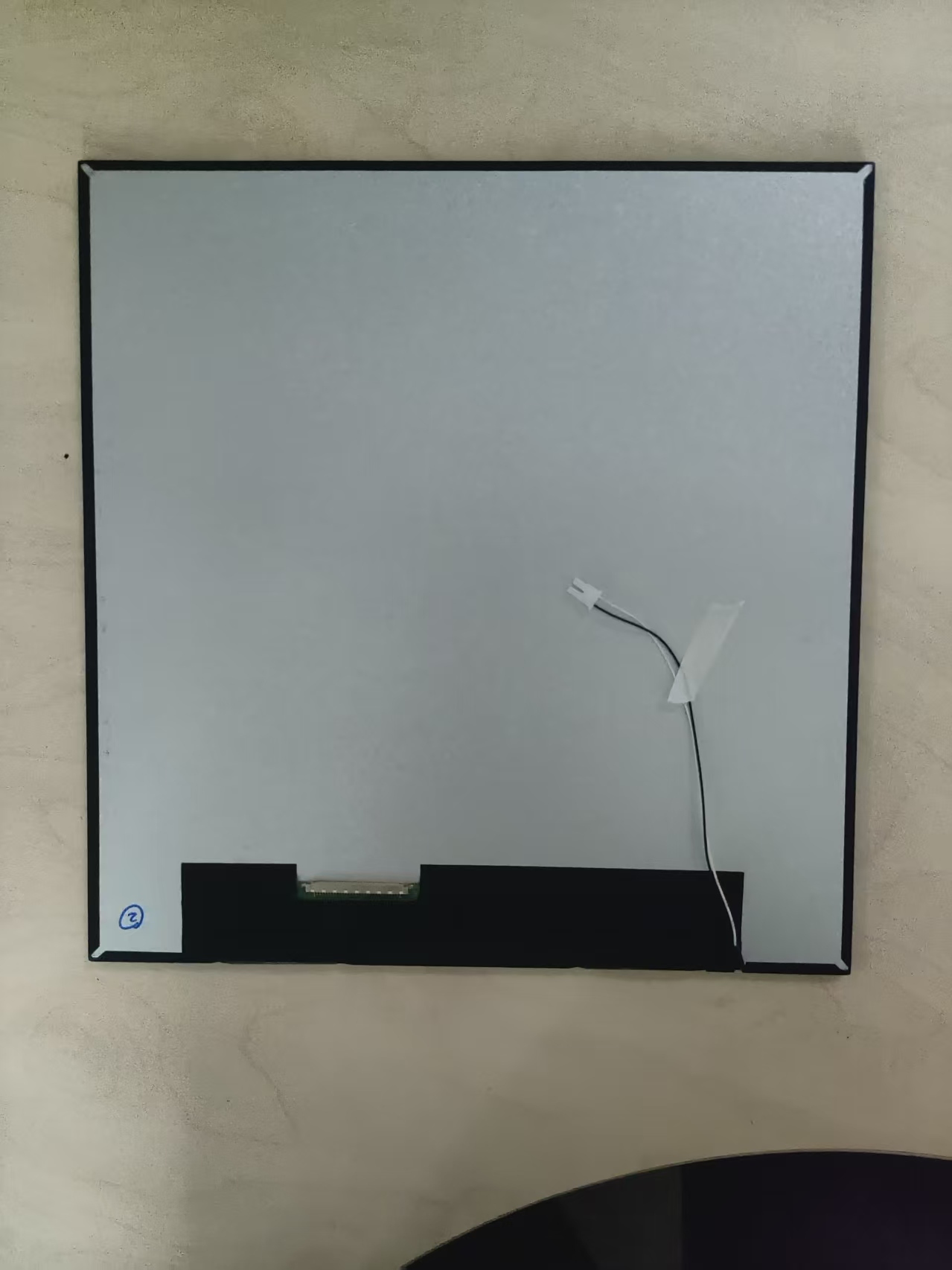

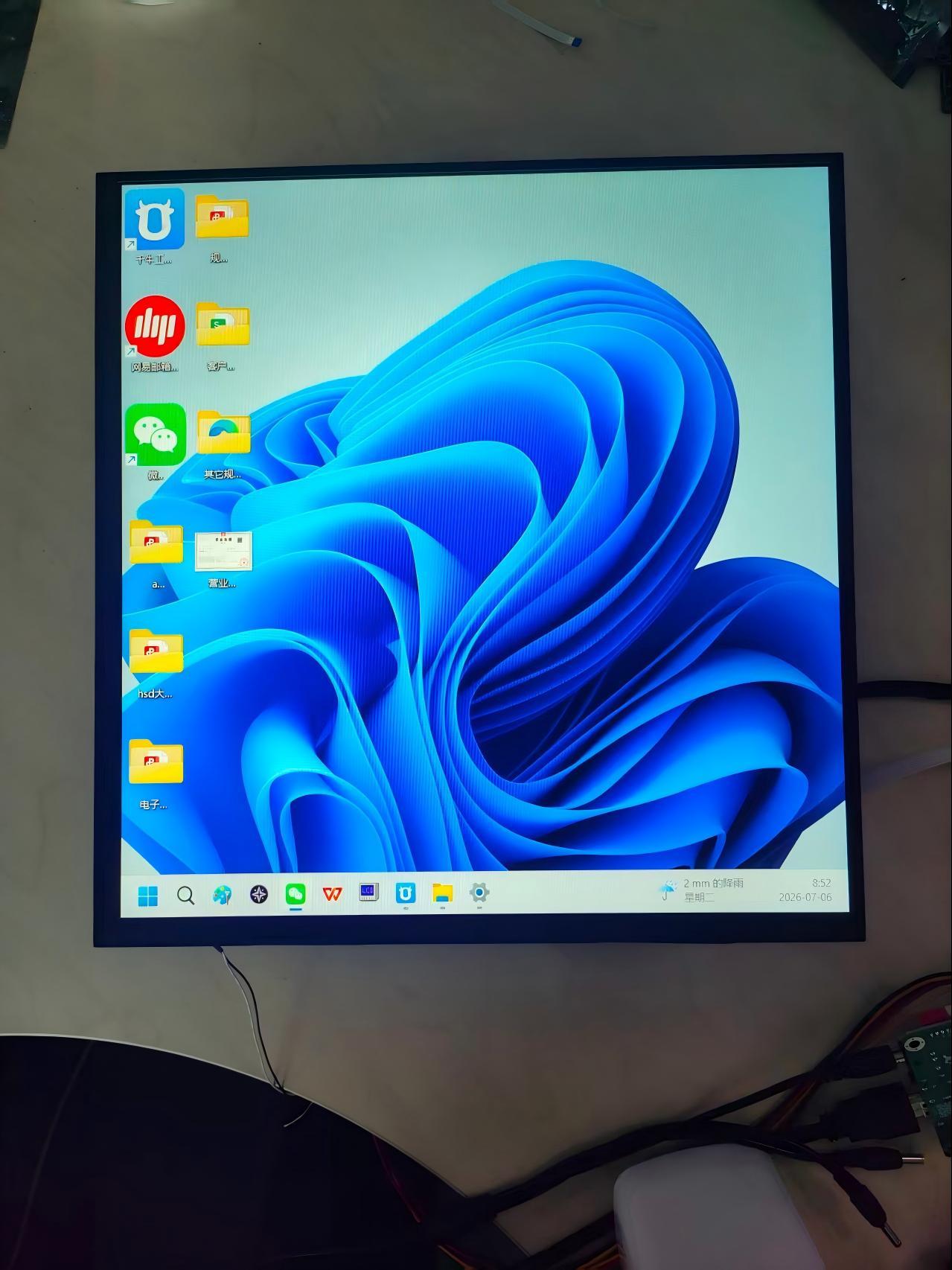

Product Picture

14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit
14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit

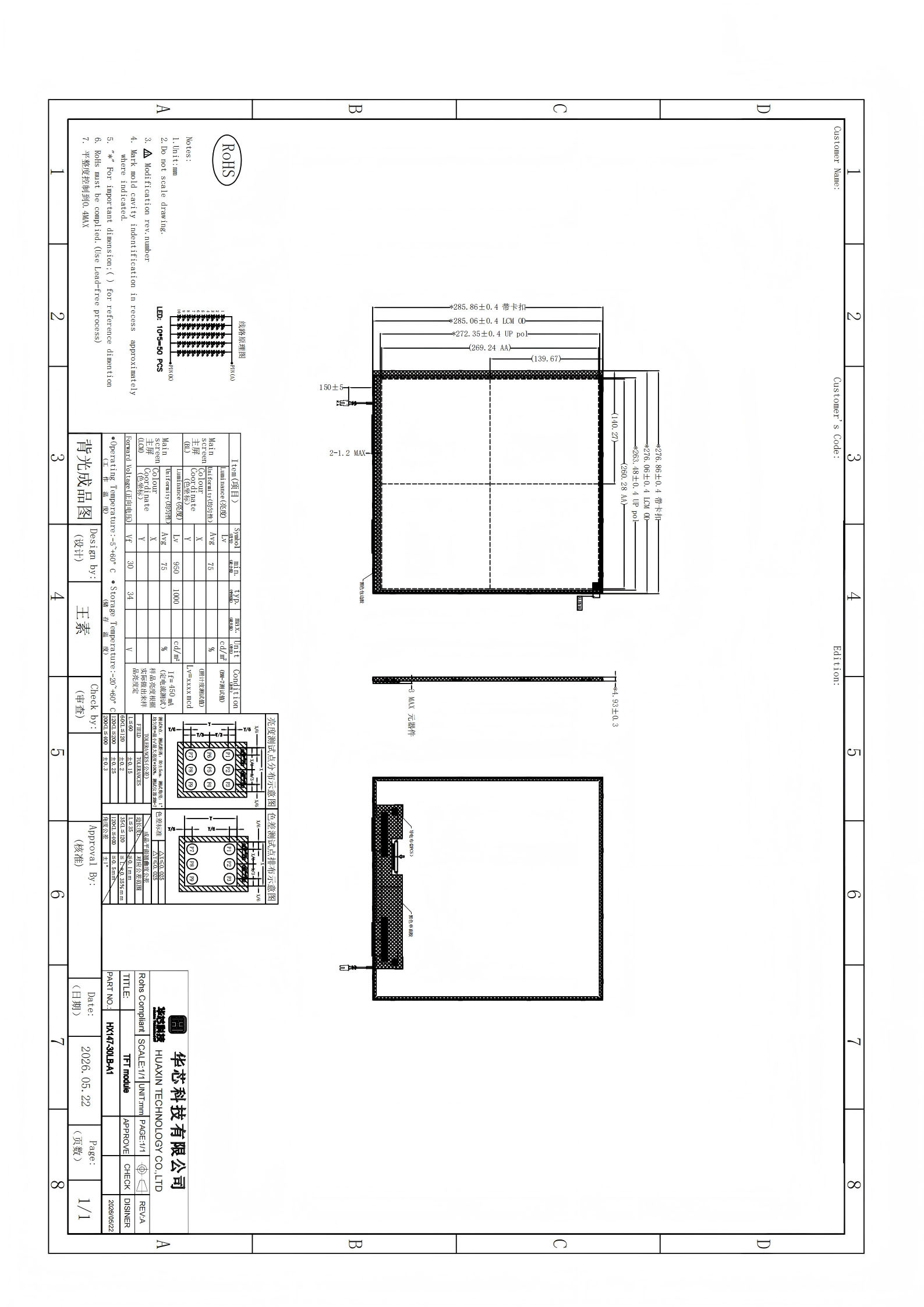

Technical Drawing


14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit

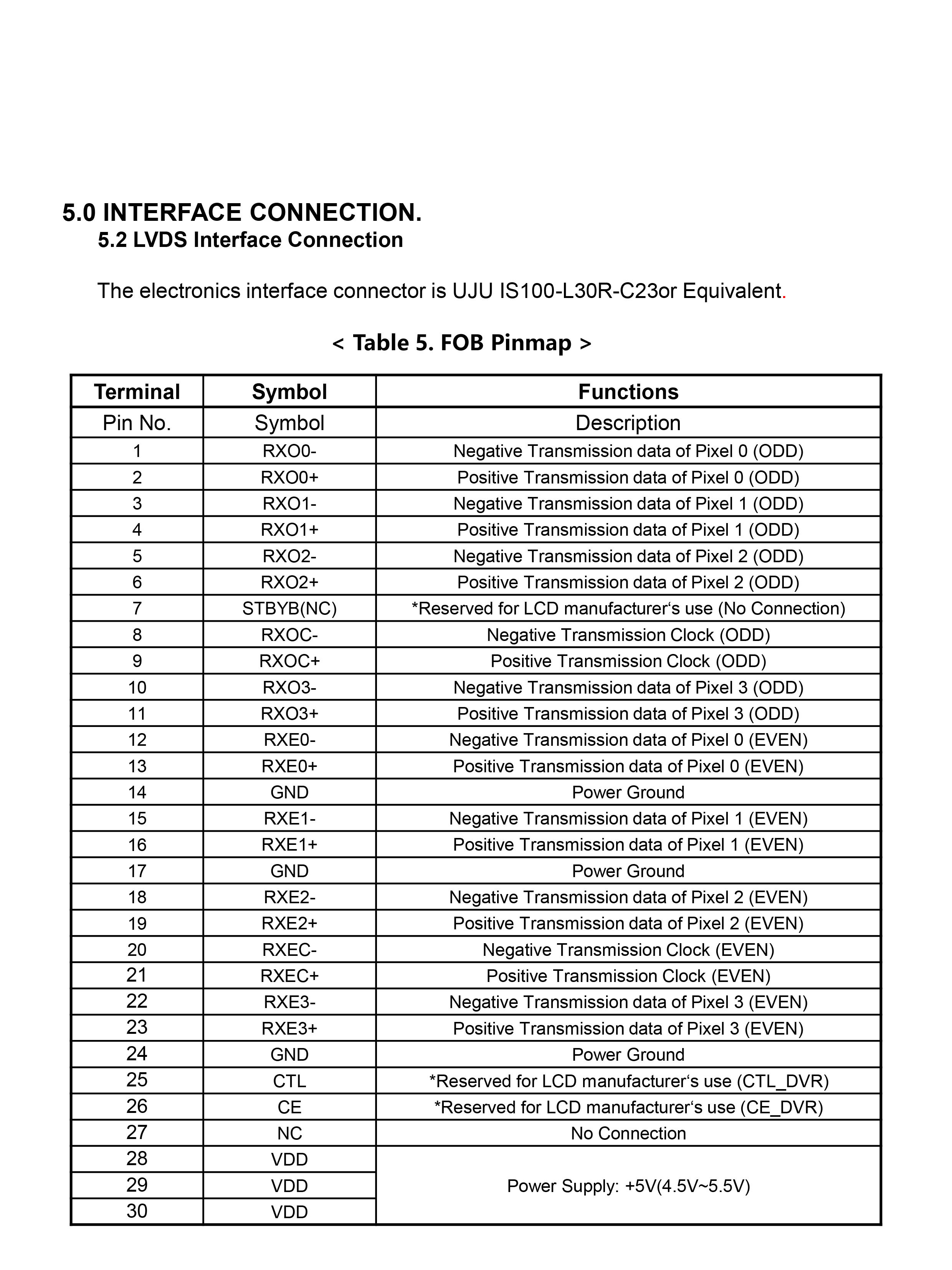

TFT Technology Overview
14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit 14.7 Inch IPS TFT Display Module with 1080x1080 Resolution and 2-port LVDS Interface,Source Driver(2 chip cascade),85/85/85/85,950nit
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
