Specifications
Model Number :
HX0240S003
interface :
MIPI
MOQ :
1000
Delivery Time :
6weeks~8weeks
view angle :
ALL 0' clock
Brand Name :
HuaXin
Driver IC :
ST7701S
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Payment Terms :
T/T
name :
TFT LCD MODULE
Brightness :
450nit
Price :
negotiation
size :
2.4"
Supply Ability :
100K per month
Display Technology :
IPS TFT
Certification :
ISO14001/ISO9001/IATF16949
resolution :
480(RGB)*640
Place of Origin :
China
Description

2.4" IPS TFT LCD Module with 480x640 Resolution,ST7701S IC,ALL VIEW,MIPI Interface, and 450 Brightness Instrument Equipment screen

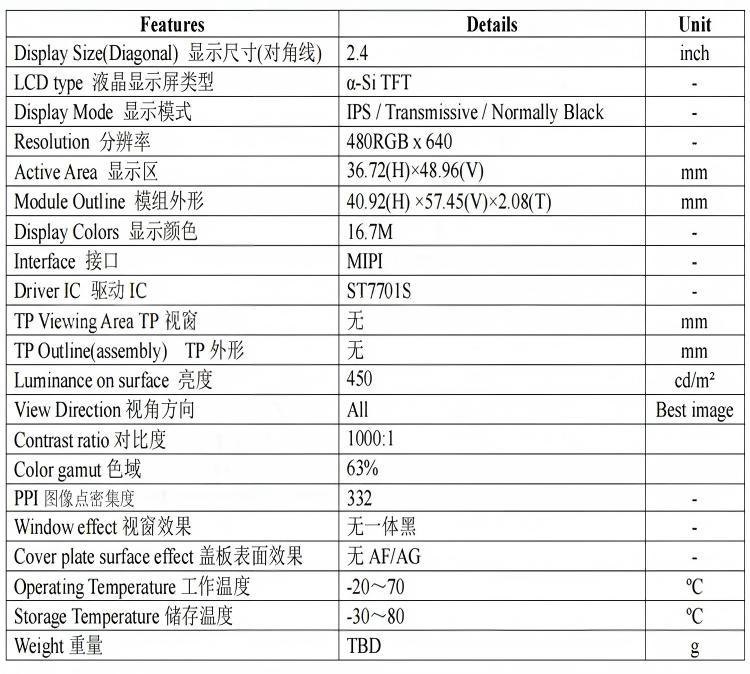

Product Specifications
Part NO.HX0240S003
Display TechnologyIPS TFT LCD
Diagonal Screen Size2.4 inch
Active Area (mm)36.72(H)X48.96(V)
Panel size(mm)40.92(H)X57.45(V)X2.08(T)
Brightness(cd/m2)450
Resolution480(RGB)*640
InterfaceMIPI
View angleALL o'clock
Driver ICST7701S

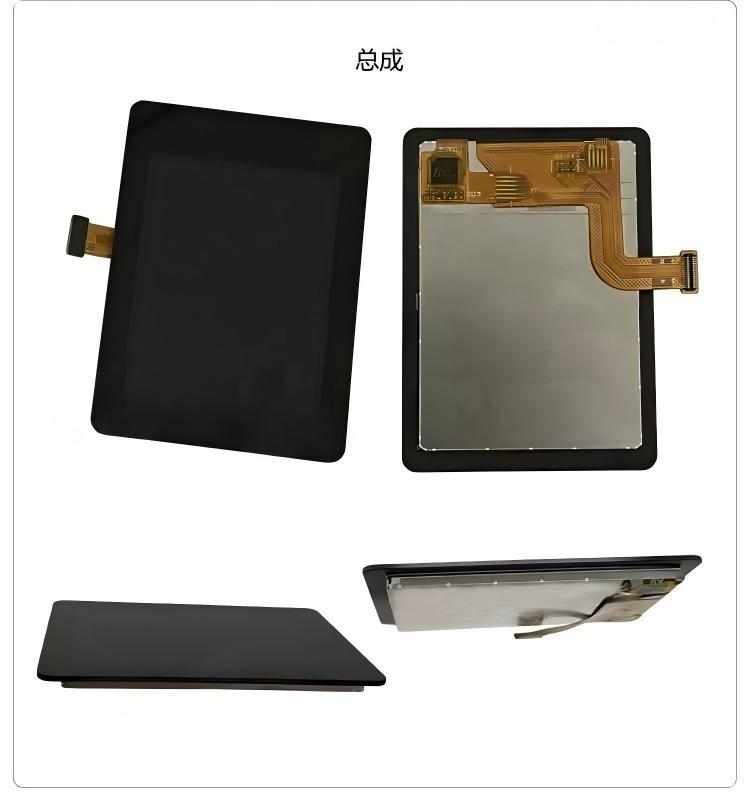

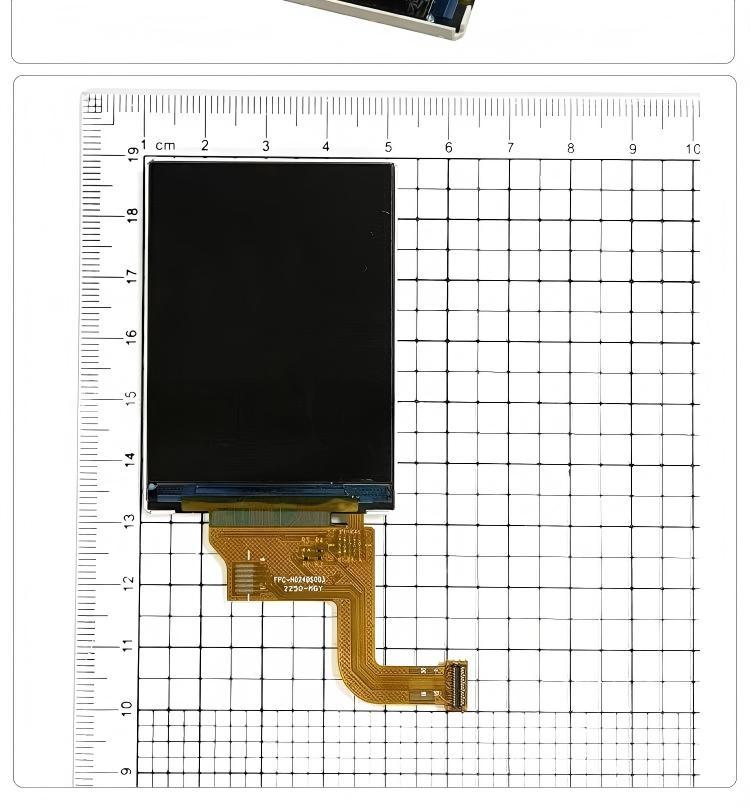

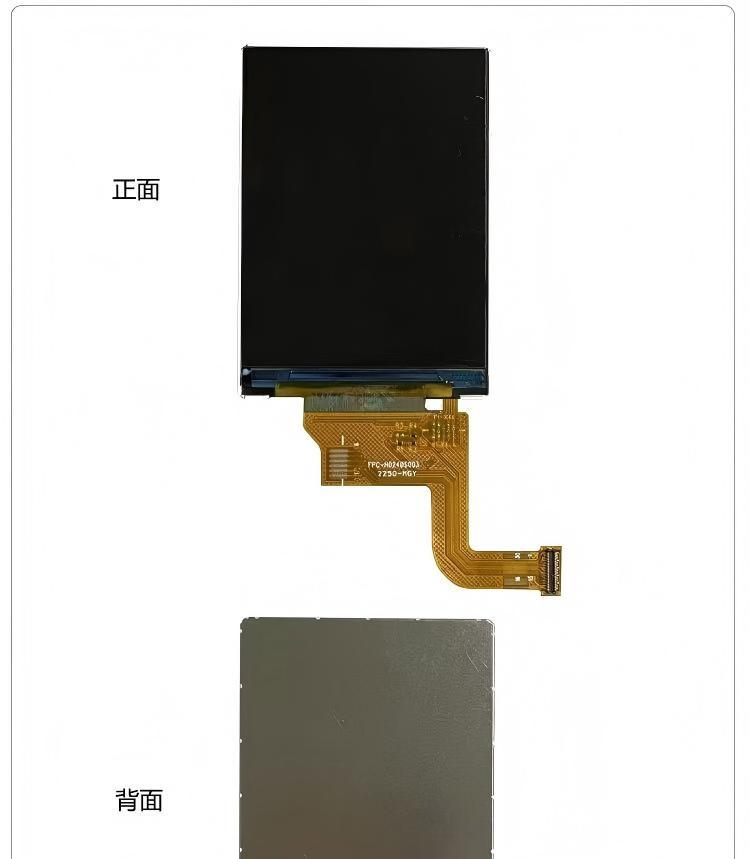

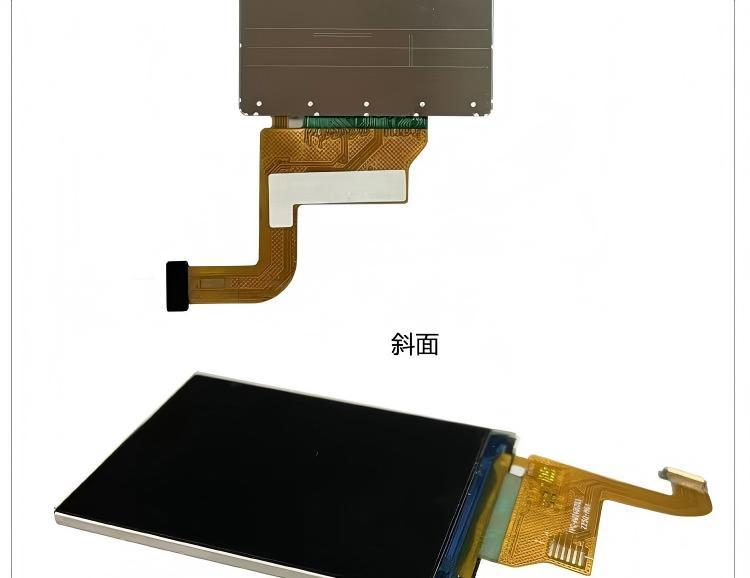

Product Picture

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment


2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

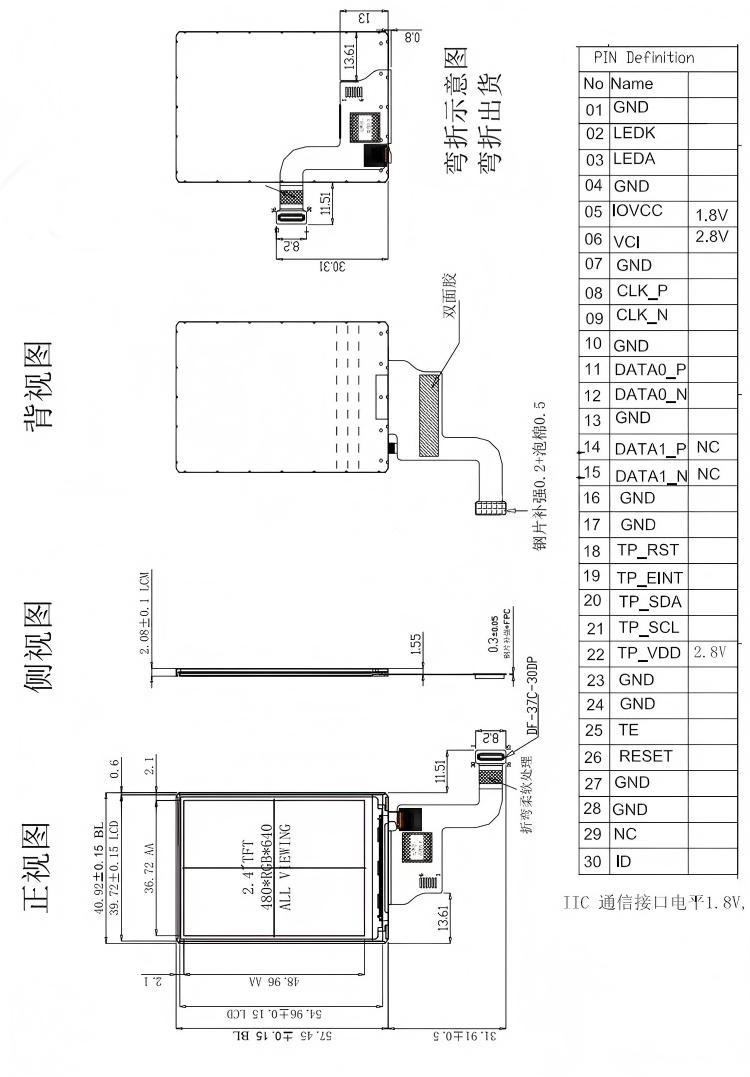

Technical Drawing


2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment

2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment





TFT Technology Overview
2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment 2.4 Inch IPS TFT LCD Module with 480x640 Resolution and MIPI Interface for Instrument Equipment
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
