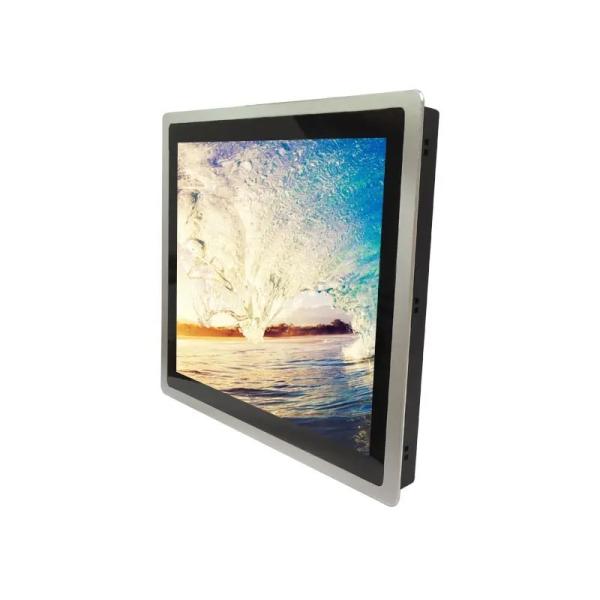

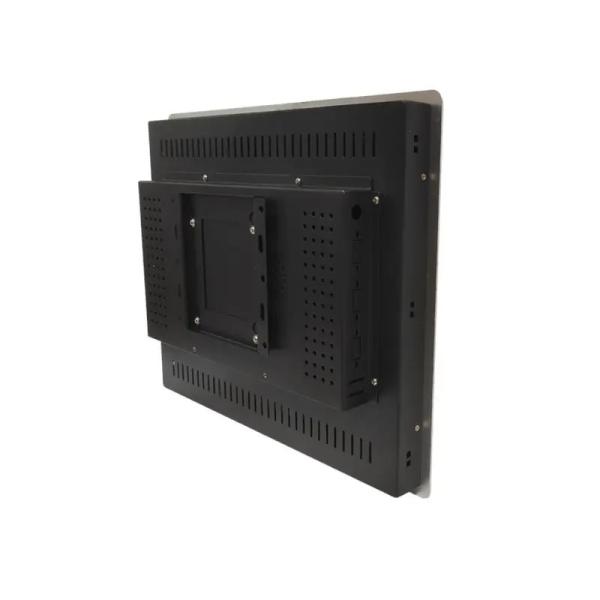

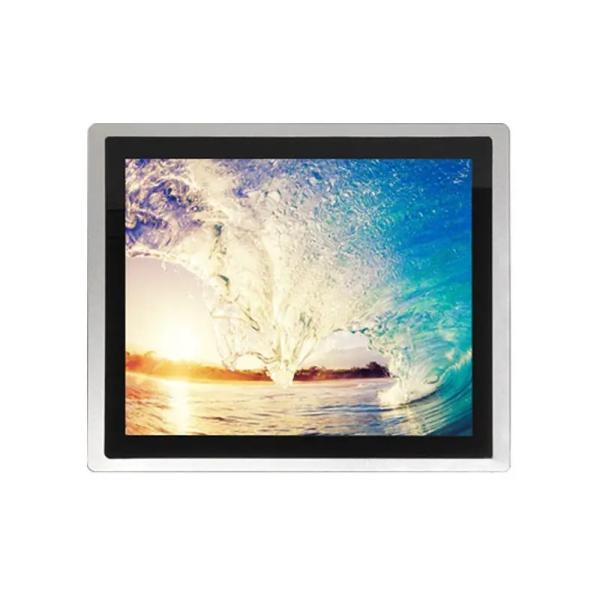

19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
Specifications
Brand Name :
Shareme
Model Number :
SHM-BGGK22
Certification :
CE，ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
300$
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
7-10days
Packaging Details :
Cardboard boxes
Aspect Ratio :
4:3
Brightness :
300 cd/m2
Contrast Ratio :
1000:1
Inputs :
HDMI, VGA, DVI
OS Compatibility :
Windows, MacOS, Linux
Response Time :
5ms
Screen Size :
19-inch
Speakers :
Yes
Touch Accuracy :
2mm
Touch Activation Force :
No Pressure
Touch Points :
10-point
Touch Technology :
Capacitive
VESA Mountable :
Yes
Description
19-inch Industrial Touch Screen Monitor
High-performance 19-inch capacitive touch screen monitor designed for industrial applications with robust construction and reliable 24/7 operation.
Key Features
  • Fully enclosed dustproof design with IP65 front panel waterproof rating
  • Aluminum alloy brushed metal front bezel with seamless construction
  • Excellent heat dissipation and mechanical durability
  • Multi-point PCAP touch panel with 2mm tempered glass for vandal resistance
  • High-performance mainboard supporting 7x24 continuous operation
  • VGA, HDMI, and DVI interfaces with USB touch connectivity
  • 12-24V wide voltage support with anti-interference technology
  • Ultra-thin 3mm front bezel ideal for embedded mounting
Technical Specifications
LCD Panel
Panel Size 17inch, 19inch, 22inch
Resolution 1280 × 1024
Aspect Ratio 4:3
Support Color 16.7M colors
Brightness 400+ cd/m²
Contrast Ratio 1000:1
View Angle 80°/80°/80°/80° (R/L/U/D)
Touch Panel
Touchscreen Type Projected Capacitive Touch (10 points)
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch Response Time 2ms
Working Life >50 million times
Touch Options 5-wire resistive touch, IR touch optional
Signal Ports & Controls
VGA 1 × VGA
DVI 1 × DVI
HDMI 1 × HDMI
Audio In/Out Optional
OSD Control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support Languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS WinXP, Win7/8/10, Linux, Mac OS X, Android, etc.
Power & Enclosure
External Power Supply AC 100-240V, 50-60Hz
Working Voltage DC 12V
Power Consumption ≤35W
Material Aluminum Alloy
Color Black, Silver
VESA Mounting 75×75mm / 100×100mm
IP Grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, Storage: -20 to 80°C
Relative Humidity Operating: 10% to 80%, Storage: 5% to 90%
Packing Details
Net Weight 4.5kg
Gross Weight 6kg
Product Dimension 41.4 × 34.5 × 6.3cm
Packing Size 53 × 47 × 18cm
Accessories Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Mounting Options
Embedded mounting screws included. Wall mounting brackets and desk stand holder available as optional accessories.
Warranty & Support
  • 1-Year Warranty: Comprehensive coverage with lifetime maintenance support
  • First Year Service: Free maintenance and technical support with remote troubleshooting
  • Technical Assistance: Our technicians provide guidance for repairs and supply necessary spare parts free of charge
  • Return Service: If issues cannot be resolved remotely, we repair and return defective units within one week or provide replacement
  • Post-Warranty Support: After the first year, replacement parts at factory cost with free maintenance services
  • Bulk Order Benefits: Spare units provided for larger orders to ensure continuous operation
  • Customer Service: Dedicated support team available via service hotline with 12-hour response commitment
