Specifications
Brand Name :
LIQUISE
Model Number :
XHT102
Certification :
CCC,FCC,CE,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1 Piece
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
5-7 days
Packaging Details :
high quality 3cm thickness honeycomb box(air shipment standard)
System :
Windows/Android
Motherboard :
ZC328/J1800/J1900/I3/I5/I7
Material Quality :
Aluminium Alloy
Installation mode :
Wall hanging/ flushbonading
texture :
aluminium alloy
Description

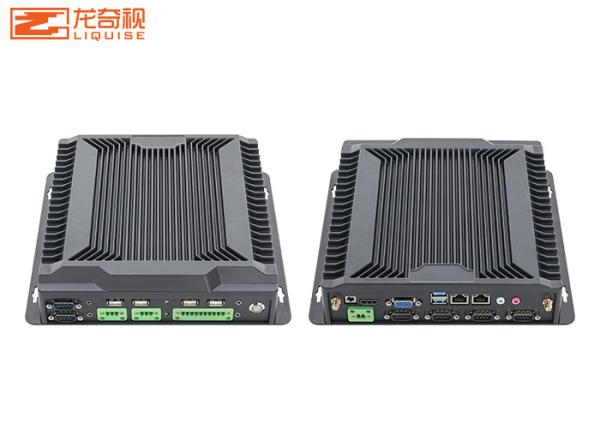

Industrial Control Host Mini Computer Industrial Household Micro Host

Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.

1. Micro industrial control host: industrial automation, medical treatment, material transportation, electronic education.
2. Main characteristics: it is produced for industry, stable and reliable.
3. Support power on: it can set the power on function in BIOS, and it has the platform capability of 7 * 24 hours and long-term continuous operation, and is suitable for various industrial places. 4. Connect TV, monitor, projector, enjoy a new computer era: connect TV, monitor, projection, LED screen through HDMI VGA
5. Workshop industrial industrial computer host: cheap price, small volume, energy saving and power saving.
6. Meet your needs, pragmatism new proposition: high-specification used materials, multi interface, practical and strength of strong combination, low power and low voltage, only for your long-term and stable use.
7. We should not be afraid of all kinds of dust in the changeable industrial environment and prevent splashing water intrusion, eliminate hardware failure and prolong the machine life.
8. Strict machine copying and aging test: each host is aged at high temperature for 72 hours before leaving the factory, and tested with full load of machine to ensure the compatibility of software and hardware and system stability.
9. Worry free heat dissipation, increase in ratio: all aluminum shell, high-density heat dissipation tooth design, fan free, refuse dust entry to damage hardware life.

Production specifications
Color silver
SIZE 21cmx 20cm x5 cm(Length, width, height)
Structure all-aluminium Alloy fan-less enclosure for heat dissipation
Material Quality Aluminium Alloy+Galvanized Steel
Memory one DDR3L/1,.35 memory ,up to 8G( Optional)
2.5Hard Disk Capacity 500G(Optional)
CF N/A
SSD N/A
POWER Standard 12V or 5V adapter(optional)
Installation mode Desktop or wall mounted
Operating temperature -10℃-60℃
Storage temperature -20℃-90℃
Relative humidity 5%-95% No condensation
Working Vibration 0.5grms/5-500HZ/random/oper ating
Motherboard type National Solid State Capacitor motherboard
Processor Intel arena j1800/j1900 Core I3/I5/I7
Graphics Cards Collection inter HD key graphics cards
WEB Collection 1x inter WG Gigabit network cards, Support Network wake-up /PXE function
USB 8*USB
Interface 6*RS232 Serial port
Display 1*VGA 1*HDMI
Audio 1*MIC,1*Line-out
Expansion slot 2*MINIPCIE(1*WIFI 1*MSATA)
Indicator Lights Power indicator lights
System control The power switch
wireless 2*WIFI/3G SMA antenna (optional)
