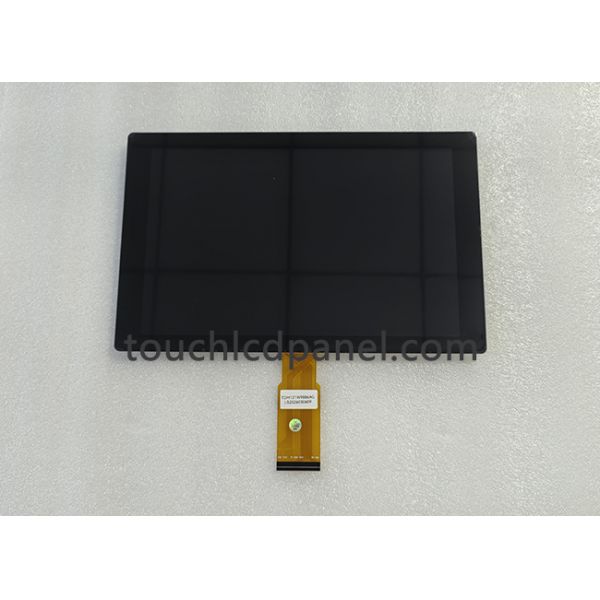

12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
Specifications
Brand Name :
LB
Model Number :
TDM121W9886AG
Place Of Origin :
Made In China
Certification :
RoHS
MOQ :
50pcs
Price :
To Be Negotiated
Packaging Details :
Carton Box Or Wood Case
Delivery Time :
3~20 Working Days
Payment Terms :
T/T
Supply Ability :
300pcs Per Day
Resolution :
1280x800 Pixels
Touch Panel Layers :
Glass On Glass
Viewing Angles :
89/89/89/89 Degrees (typ.)
Top Glass Thickness :
1.8mm
Bonding Technology :
Optical Bonding With LOCA
LCD Model No. :
G121EAN01.401 / G121EAN01.402
Support Color :
16.2M / 262K Colors
Display Interface :
1 Chanel LVDS
Description
12.1-inch 1280x800 Anti-glare Touch LCD Panel
Advanced HD touch digitizer display designed for medical equipment and industrial devices, delivering exceptional visual performance with highly responsive touch capabilities.
Product Overview
This innovative touch LCD panel integrates state-of-the-art technology to provide an immersive and intuitive interactive experience. Featuring an LVDS display interface for efficient high-speed data transmission, the panel supports high-resolution imagery and smooth video playback with low power consumption.
Key Features
  • 12.1-inch display with 1280x800 resolution for clear, sharp visuals
  • Wide 89-degree viewing angles from all directions
  • 10-point multi-touch capability with precise input detection
  • Support for 16.2 million colors with vibrant, true-to-life imagery
  • Glass-on-glass technology for enhanced touch sensitivity
  • Optical bonding with LOCA for reduced reflections and enhanced durability
  • Versatile connectivity with USB/I2C/RS232 interfaces
  • 1.8mm top glass thickness for durable protection
Technical Specifications
Parameter Specification
Touch Controller ILITEK
Aspect Ratio 16:10
Touch Points 10 Points Finger
Operating Temperature -20~70 ℃
Touch Panel Layers Glass On Glass
Top Glass Thickness 1.8mm
Bonding Technology Optical Bonding With LOCA
Resolution 1280x800 Pixels
Display Interface LVDS
Contrast Ratio 1000 (typ.)

12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices

Applications
This versatile touch LCD panel is engineered for demanding environments across multiple industries:
Industrial Automation
Control rooms, machinery operation, and monitoring systems
Medical Equipment
Diagnostic equipment, patient monitoring systems, and digital interfaces
Commercial & Retail
Interactive kiosks, point-of-sale systems, and self-service terminals
Automotive & Transportation
Navigation systems, infotainment units, and control panels
Product Details
Model: LB TDM121W9886AG | LCD Models: G121EAN01.401, G121EAN01.402 | Brand: AUO TFT LCD
Certification: RoHS Compliant | Supply Ability: 300pcs per day | Minimum Order: 50pcs
