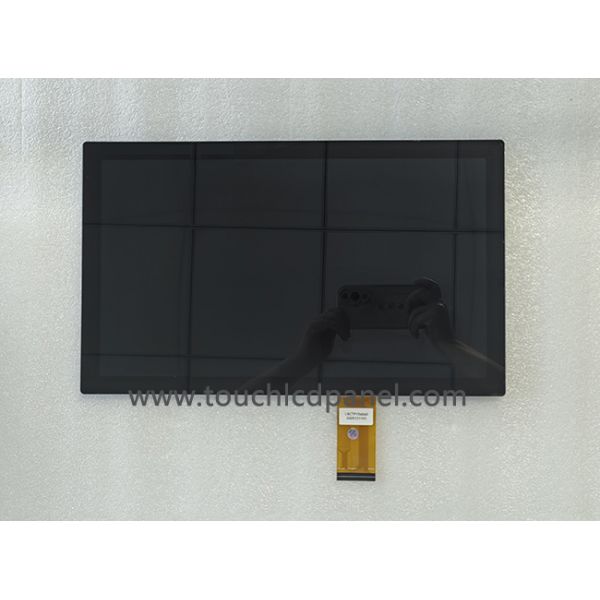

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
Specifications
Brand Name :
LB
Model Number :
LBCTP1569880
Place Of Origin :
Made In China
Certification :
ROHS
MOQ :
100pcs
Price :
To Be Determined
Packaging Details :
Carton Box
Delivery Time :
3~20 Working Days
Payment Terms :
T/T
Supply Ability :
1000pcs Per Day
Size :
15.6''
Product :
PCAP Touchscreen Overlay
Surface Treatment :
Anti-glare
Touch Controller :
ILITEK 2511
Touch Points :
10-poits Finger Touch
Bezel Color :
Black
Bezel Width :
16mm each side
Total Thickness :
2.9mm
Transmittance :
86%>
Response Time :
10ms typically
Description
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
Model No.: LBCTP1569880
Product Overview
This 15.6-inch PCAP Touchscreen Overlay features anti-glare tempered glass optically bonded to an ITO touch sensor glass, driven by an ILITEK2511 touch controller via USB interface. It supports multi-touch functionality with a fast 10ms response time and plug-and-play compatibility with Windows and Android systems.
The ILITEK 2511 touch controller enables accurate and smooth touch detection, supporting multiple simultaneous touch points. This transforms standard displays into multi-touch gesture screens, allowing intuitive interactions including pinch-to-zoom, swipe, rotate, and tap gestures.
Designed for user convenience and durability, this overlay features a slim profile and robust construction that provides reliable upgrades for existing monitors without compromising screen clarity or brightness.
Key Features
  • Narrow Black Bezel: 16mm bezel on each side in black, designed for flush mounting applications
  • Anti-glare Surface Treatment: Reduces environmental glare and improves viewing experience
  • Glass-on-Glass Construction: Front glass on sensor glass for enhanced durability
  • ILITEK Touch Controller: USB interface with plug-and-play functionality for Windows and Android
  • Multi-touch Support: 10-point finger touch capability
  • Fast Response: 10ms typical response time for smooth interactions
Technical Specifications
Product Type PCAP Touchscreen Overlay
Touch Controller ILITEK 2511
Touch Points 10-points Finger Touch
Layers Front Glass On Sensor Glass
Transmittance >86%
Surface Treatment Anti-glare
Bezel Width 16mm Each Side
Front Glass Thickness 2mm
Total Thickness 2.9mm
Size 15.6-inch
Bezel Color Black
15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
Applications
Retail Environments: Ideal for point-of-sale (POS) systems, self-service kiosks, and digital signage. The robust construction and high touch accuracy make it superior to traditional resistive touch panels in high-traffic areas.
Healthcare: Provides hygienic, easy-to-clean surfaces suitable for patient monitoring systems and medical devices. Responsive touch capabilities ensure precise control and fast input for healthcare professionals.
Industrial Applications: Excellent replacement for resistive touch panels in control panels and machinery interfaces. Enhanced durability and multi-touch support improve operational efficiency in demanding environments.
The LBCTP1569880 PCAP Touch Screen is a versatile and reliable solution for upgrading from resistive touch panels to modern capacitive touchscreen technology, combining durability, performance, and ease of use in a sleek 15.6-inch design.
