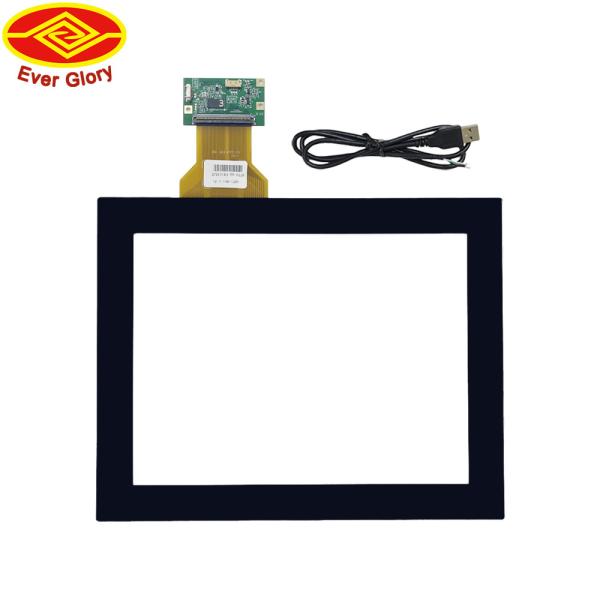

Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Specifications
Place of Origin :
Guangdong, China
Brand Name :
EG
Packaging Details :
Standard packaging with carton or wooden box;Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$45.00/pieces 2-499 pieces
Certification :
CE/FCC/ROHS/ISO9001/ISO14001
Type :
COB
Display Size :
Customized size
Products Status :
Stock
Size :
12.1 inch
Touch times :
More than 3 billion times
Surface hardness :
>6H
Product :
Capacitive touch screen
Payment :
Paypal,HSBC,Western Union
Structure :
Glass+Glass
Operating Voltage :
3.3V~5V
Package :
Wooden box
Operating temperature :
-40°C~+85°C 20%~90%RH
Port :
Guangzhou port/ Shenzhen port,China
Description

12.1 inch Customized Industrial Touch Screen Panel USB Port HMI Projected Capacitive Multi Touch

Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive

Size 12.1 inch
Screen Diagonal 4:3
Structure G+G
Touch controller EETI / ILITEK
Surface hardness >6H
Waterproof IP65
Outline Dimension 218.50(W)*280.00(L)±0.2mm
Active Area 186.50(W)*248.00(L)±0.2mm
Sensor Thickness 0.55±0.05mm
Total Thickness 2.75±0.2mm
Response Time ＜25 ms
Touch point 10 points
Chamfer R3 mm
Interface Type USB,RS232,I2C
Warranty 3 years


Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive

Lens's features

Sensor features
Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm		 Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive

Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive
Customized Industrial Touch Panel 12.1 Inch USB Port HMI Projected Capacitive

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.
  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.
  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
