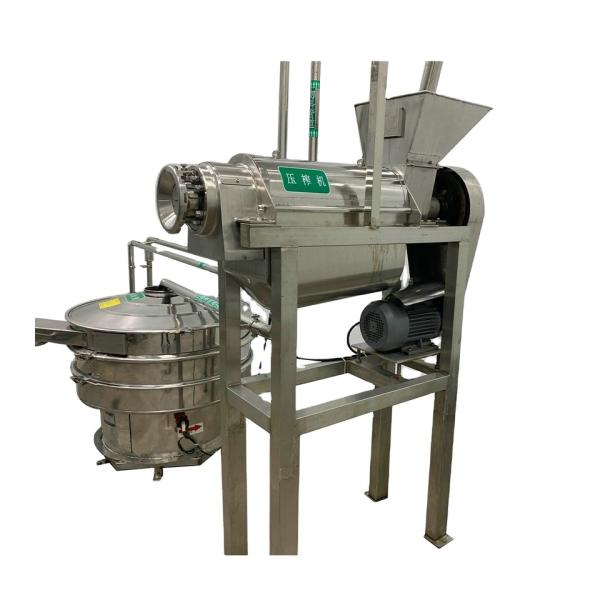

500L/H Capacity Fruit Juice Making Machine Automatic Easy Operation
500L/H Capacity Fruit Juice Making Machine Automatic Easy Operation
Specifications
Brand Name :
SSS
Model Number :
Customization
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
negotiable
Packaging Details :
suitable long distance seaport transportation
Payment Terms :
T/T, L/C
Supply Ability :
30 Sets /month
Automatic Grade :
Automatic
Application :
Fruit Juice Pulp Processing
Feature :
High Efficiency High Hygiene Easy Operate
Material :
Food Grade Stainless Steel
Driven Type :
Electric
Capacity :
500L/H
Product Name :
Screw Juicer
Description

Product Description:

500L/H Capacity Fruit Juice Making Machine Automatic Easy Operation500L/H Capacity Fruit Juice Making Machine Automatic Easy Operation

The main component of this equipment is the spiral. The bottom diameter of the spiral gradually increases and the pitch gradually decreases along the direction of the slag outlet. When the material is pushed by the spiral, the volume of the spiral cavity is reduced, forming a squeeze on the material.

The direction of rotation of the spiral main shaft is clockwise when viewed from the feed hopper to the slag trough. The raw materials are added to the feed hopper and are pressed by the screw. The squeezed juice flows into the juice container at the bottom through the filter, while the waste is discharged through the gap formed between the screw and the tapered part of the pressure regulating head.

The size of the gap can be adjusted by the axial movement of the pressure regulating head. When the hand wheel bearing seat is transferred clockwise by hand (from the slag trough of the equipment to the feed hopper), the pressure regulating head moves to the left, and the gap is reduced, otherwise the gap becomes larger. Changing the size of the gap, that is, adjusting the resistance of the slag discharge, can change the juice discharge rate.

However, if the gap is too small, under strong extrusion, some slag particles will be squeezed out together with the juice through the filter. Although the juice output increases, the quality of the juice is relatively reduced. The size of the gap should be determined according to the specific process requirements of the user.

Technical Parameters:

Capacity 500L/H
Product Name Screw Juicer
Application Fruit Juice Pulp Processing
Automatic Grade Automatic
Feature High Efficiency High Hygiene Easy Operate
Driven Type Electric
Material Food Grade Stainless Steel

Applications:

1. Used to squeeze fruits such as pineapples, apples, and pears.

This tool is designed for extracting juice from a variety of fruits including pineapples, apples, and pears. It efficiently squeezes the fruits to yield delicious and nutritious juices.

2. Used to squeeze berries such as mulberries, grapes, oranges, and oranges.

It is also suitable for juicing various berries like mulberries, grapes, and oranges. This versatile juicer ensures that you can enjoy fresh and flavorful berry juices at any time.

3. Used to squeeze vegetables such as tomatoes, ginger, celery, and radishes.

In addition, it can be used to extract juices from vegetables like tomatoes, ginger, celery, and radishes. This tool makes it easy to incorporate vegetable juices into your daily diet for added health benefits.

Support and Services:

  • Comprehensive technical support and services to ensure smooth operation and optimal performance. Our team of experts is available to assist with installation, setup, troubleshooting, and maintenance of the production line.
  • Technical support is provided to address any issues that may arise and ensure the efficient functioning of the equipment. In addition, we offer training programs for operators to maximize productivity and quality output.
  • Our services also include regular maintenance checks, spare parts supply, and upgrades to keep the production line up to date with the latest technology and industry standards.
