10000Nm 15000rpm Digital Torque Flange For Wheel Load Simulation
10000Nm 15000rpm Digital Torque Flange For Wheel Load Simulation
Specifications
Brand Name :
SeeLong
Model Number :
SLFN-500
Certification :
CMC
Place of Origin :
Luoyang China
MOQ :
1
Price :
1st Tier: 1 Set, Unit Price USD 3.00 2nd Tier: 2-5 Sets, Unit Price USD 2.00 3rd Tier: Over 5 Sets, Unit Price USD 1.00
Payment Terms :
T/T
Supply Ability :
20 pcs per month
Delivery Time :
10-15days
Packaging Details :
300mmF*300mm*200mm wooden box
measuring range :
10000Nm
accuracy class :
0.2%
working speed :
0-15000rpm
overload capacity :
120%
response frequency :
500 μ s
lag :
<0.1%
relative humidity :
<90%RH
temperature range :
-10-70℃
Description

10000Nm 15000rpm Digital Torque Flange For Wheel Load Simulation

10000Nm 15000rpm Digital Torque Flange For Wheel Load Simulation

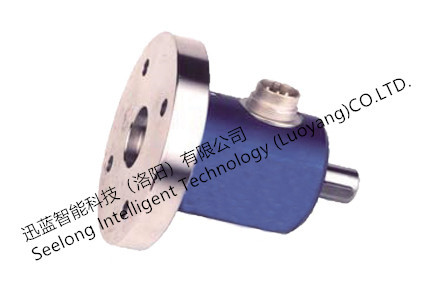

Torque sensors

The torque sensor with double flange connection torque sensor, MH806 series reaction torque sensor is compact, robust and maintenance-free, with many advantages.
The sensor is based on strain gauge technology, which can provide high precision signal transmission.
The MH806 series torque sensors are designed to perform static torque measurements and dynamic rotation (limited Angle) with high accuracy in both clockwise and counterclockwise directions.
The sensor uses a flange-flange connection aligned with the part under test to measure the level of the small reaction moment.
It is designed with a central through-hole that can be passed through a shaft, cable or pipe.
Key application areas include actuator and valve testing, fastener testing, pump testing, and automotive braking.


Product features

  1. suitable for the measurement of direct torque between the mechanical bolt connection, the maximum deflection Angle is not more than 360 degrees.
  2. without preheating, boot can enter the working state.
  3. high measurement accuracy, good stability, strong anti-interference.
  4. protected by low pressure water jet - suitable for most industrial environments.
  5. The sensor can be used independently from the secondary instrument. As long as the sensor is supplied with 5-24VDC power supply according to the pin number, it can output the current, voltage or frequency signal whose impedance is proportional to the torque.



Technical parameter

Measuring range

0±50N.m ±100N.m ±200N.m ±500N.m ±1000N.m

±2000N.m ±5000N.m ±1 万 N.m

Output signal

5-15KHZ 0-10V 4-20mA

Overload capacity

120%

Accuracy

0.5% 0.2%

Power supply

24VDC

Optimum operating Speed

0-15000 rpm

Response frequency

500μs

Insulation resistance

＞200MΩ

Zero drift

＜0.5%

Repetitive

＜0.1%

Linear

＜0.1%

Lag

＜0.1%

Environment temperature

-40-60℃

Relative humidity

＜90%RH

Temperature range

-10-70℃

Amplitude of transmitter

10V

Storage temperature range

-25-80℃

Transducer power consumption

≈4W

Sensor current consumption

100MA

Sensor shell

Strong anodized aluminum

The response time of the strain gauge dynamic strain wave

3.2X10-6s



Layout
