Motor Coupling Test System For New Energy Vehicles
Motor Coupling Test System For New Energy Vehicles
Specifications
Brand Name :
SeeLong
Model Number :
SSCG160-3000/10000
Certification :
CMC
Place of Origin :
China Luoyang
MOQ :
1
Price :
Confidential
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10-12weeks
Packaging Details :
1500mmF*1000mm*2000mm wooden box
Power :
160KW
Torque Range :
509Nm
Speed Range :
3000~10000rpm
Torque accuracy :
0.02%FS
Speed accuracy :
0.1r/min
Rated voltage :
380V±10% 50Hz
Service temperature :
-20to45℃
Use altitude :
<2000m
Description

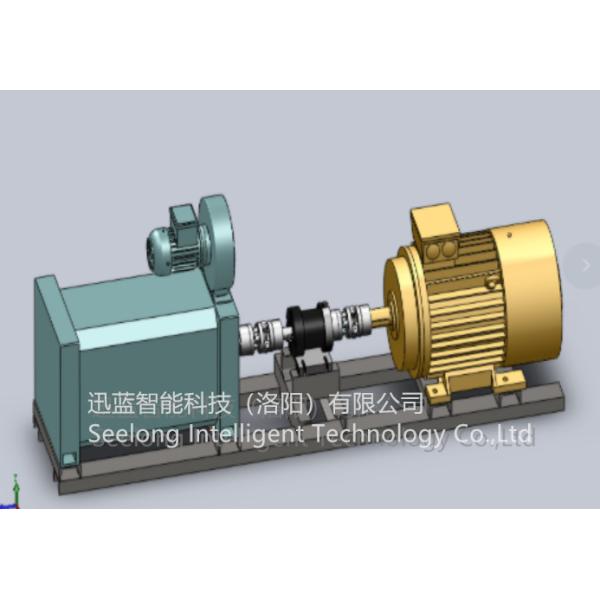

Motor coupling test system for new energy vehicles

Introduction:

In the automotive industry, new energy vehicle motors have more and more application requirements for passenger cars, commercial vehicles, logistics vehicles, and heavy trucks. Strict testing and analysis of performance is particularly important.

The basic scope and accuracy of the test of the motor of the passenger car on the trailer:

●Recommended power range: 0~400KW power level, support other customization of other power, speed and torque levels;

●Recommended speed measurement range: 0~10000 r/min;

●Recommended torque measurement range: 0~500N.m;

●Measurement accuracy of basic electric power: ±0.02%;

●Speed ​​measurement accuracy: ±1r/min;

●Torque measurement accuracy: ±0.02%F.S;

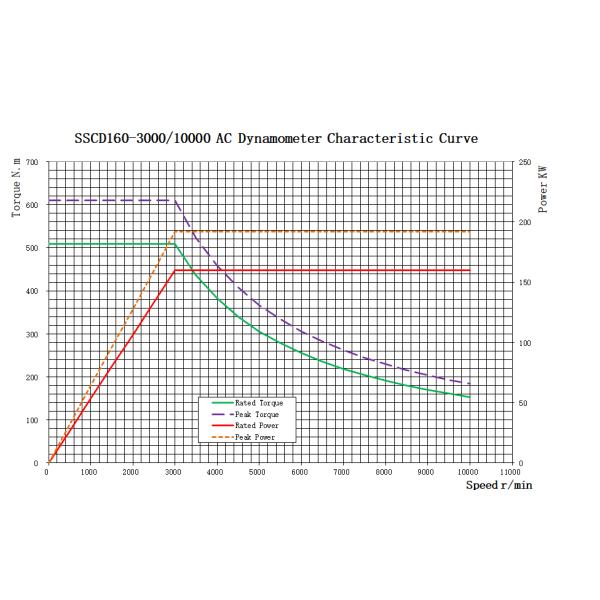

Characteristic curve

Motor Coupling Test System For New Energy Vehicles

Pilot projects:

Locked rotor test, load test, no-load test, temperature rise test, load characteristic test, endurance test, electric working condition, power generation condition, etc.
