Specifications
Brand Name :
Torich
Model Number :
EN 10305-1
Certification :
ISO 9001
Place of Origin :
China
MOQ :
5 tons
Price :
negotionation
Payment Terms :
L/C, T/T
Supply Ability :
5000tons per year
Delivery Time :
5-8 week days
Packaging Details :
In bundles
Technique :
Cold Drawn
Thickness :
2 - 120 mm
Section shape :
Round
Surface treatment :
oiled
Secondary or not :
Non-secondary
Shape :
Round Shape
Standard :
ASTM
Grade group :
10#-45#
Special pipe :
precision seamless pipe
Description

EN 10305 Small Cdw Tube Cold Draw Seamless Welded Diameter Steel

Tube For Precision Applications

Quick detail :

Origin China
Brand name Torich
Certificate ISO9001 TS16949
Material Carbon steel 1020,1010,1045,4130,4140,38CrMoAl,20Cr etc
Product name EN 10305 Small Cdw Tube Cold Draw Seamless Welded Diameter Steel Tube For Precision Applications
Capacity Cold drawing,Cold rolled

Basic introduction

Size range of Cdw Tube :3-400mm

Production method: Cold drawing,Cold rolled

Delivery condition of Steel Tube For Precision Applications :

BK (+C) Cold finished/hard (cold finished as drawn) No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed. After the final cold forming process the tubes are stress relieve
annealed.
GBK (+A) Annealed After the final cold forming process the tubes are annealed in a controlled atmosphere
NBK (+N) Normalized. (Mainly focus on) After the final cold forming process the tubes are annealed above the upper
transformation point in a controlled atmosphere

Test of EN 10305 Small Diameter Steel Tube:

Chemical Composition Testing

Impact Testing

Hardness Testing

Tensile Strength Testing

ET & UT testing

Application of Steel en 10305 Seamless Pipes:
Hydraulic System

Feature:

1. High precision tolerance of outer diameter and inner diameter
2. Good concentricity
3. Good mechanical properties
4. Machining of cutting, threading and chamfering can be provided

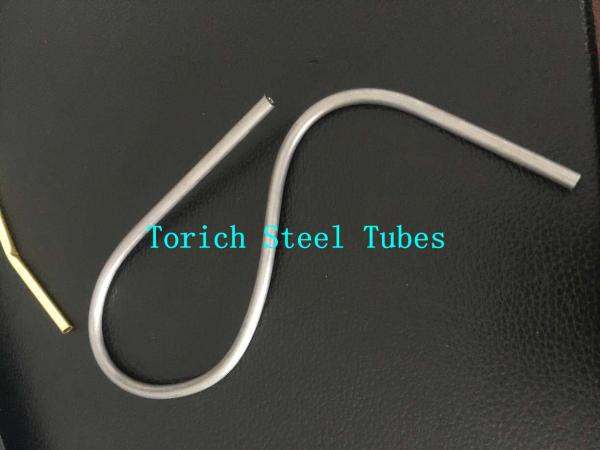

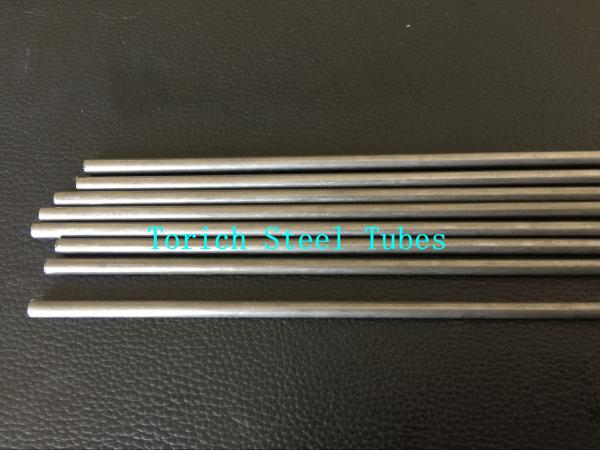

Product show:

EN 10305 Small Cdw Tube Cold Draw Seamless Welded Diameter Steel Tube For Precision Applications EN 10305 Small Cdw Tube Cold Draw Seamless Welded Diameter Steel Tube For Precision Applications

Packaging:Bundles or according to client’s requirements

Shipping: Land transportation/Ocean transportation

Equipments:
