STPL 380 STPL 450 STPL 690 JIS G 3460 Round Carbon And Nickel Steel Pipe For Low Temperature Service
STPL 380 STPL 450 STPL 690 JIS G 3460 Round Carbon And Nickel Steel Pipe For Low Temperature Service
STPL 380 STPL 450 STPL 690 JIS G 3460 Round Carbon And Nickel Steel Pipe For Low Temperature Service
STPL 380 STPL 450 STPL 690 JIS G 3460 Round Carbon And Nickel Steel Pipe For Low Temperature Service
Specifications
Place of Origin :
China
MOQ :
1 TONS
Price :
Negotiation
Packaging Details :
IN BUNDLES
Delivery Time :
30-60DAYS
Payment Terms :
T/T L/C
Supply Ability :
50000 TONS PER YEAR
Description

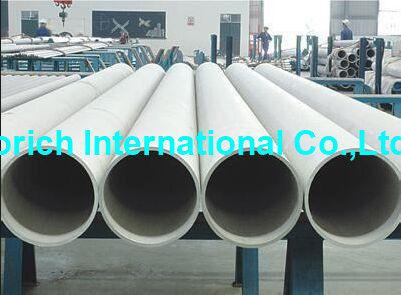

JIS G 3460 Carbon and Nickel steel pipe for low temperature service

Size range:OD:5-420mm WT:0.5-50mm Length:Upon request

Application :for low temperature service

Shipment: FCL, LCL workable. Bulk Vessel workable By Air, By Sea, by Courier

CHEMICAL COMPOSITION % max

Steel grade

C

Si

Mn

P

S

Ni

STPL 380

0.25

0.35

1.35

0.035

0.035

　

STPL 450

0.18

0.10-0.35

0.30-0.60

0.030

0.030

3.20-3.80

STPL 690

0.13

0.10-0.35

0.9

0.030

0.030

8.50-9.50

Remarks:

When it is practically difficult to apply the test due to the dimension of a pipe,STPL 380 shall , by way of compensation,contain 0.01% or more of acid soluble aluminum, or alternative,0.015% or more of total aluminum.

MECHANICAL PROPERTIES min

Steel grade

Tensile strength Mpa

Yeild point or proof stress Mpa

Elongation %

STPL 380

380

205

35

STPL 450

450

245

30

STPL 690

690

520

21

Remarks:

1.The value of elongation given in above table shall not be apply to the pipe whose outside diameter is under 40mm,However, the value of elongation shall be recorded.
