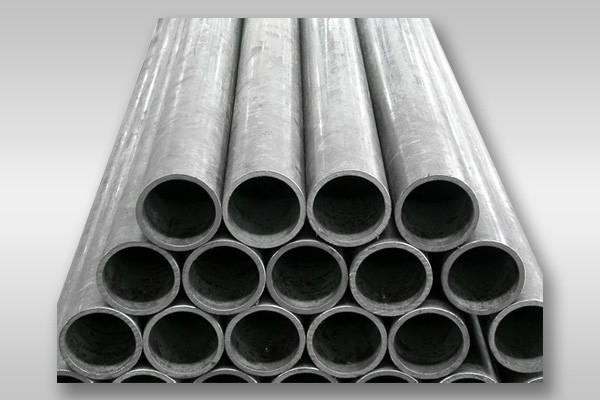

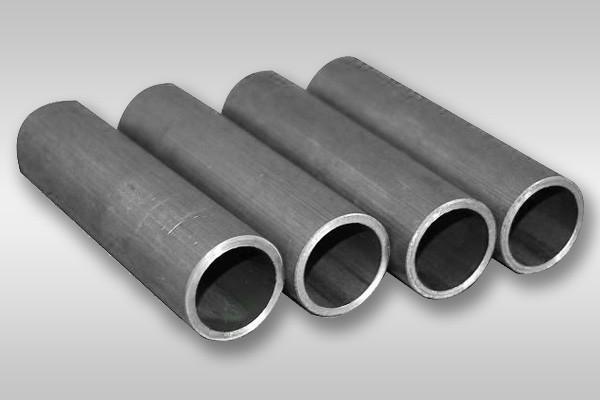

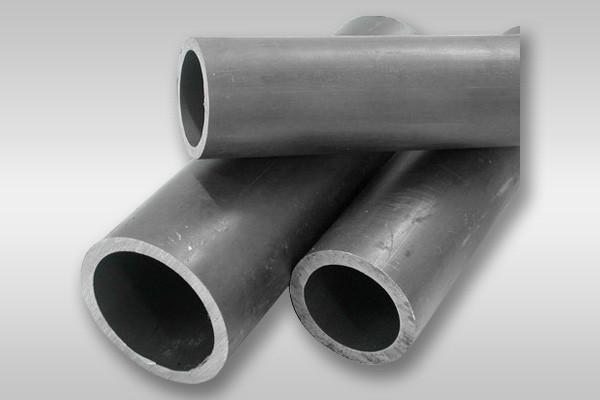

Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Hydraulic Cylinder Tubing Seamless precision steel tubes EN10305-1
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
IS09001 ISO14001 TS16949
Model Number :
EN10305-1
MOQ :
5tons
Price :
Negotiation
Packaging Details :
In bundles
Delivery Time :
30-60DAYS
Payment Terms :
T/T L/C
Supply Ability :
50000 TONS PER YEAR
Description

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts/Low pressure circuits/Power steering/Fuel circuits/Anti-Vibration ect.


Size range: O.D.:6-380mm W.T.:1-35mm L:max12000mm

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S Al
Steel name Steel number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -

Mechanical properties at room temperature
Steel grade Minimum values for the delivery condition
Steel name steel nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N) NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212 430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308 480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580 640 4 580 7 580 450 10 450 22 490-630 355 22

a Rm: tensile strength; ReH: upper yield strength; A: elongation after fracture b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calclulation purposes the following relation is recommended:ReH≥0.5Rm e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimim values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa

Note: Special steel grade is also available, according to customer request
