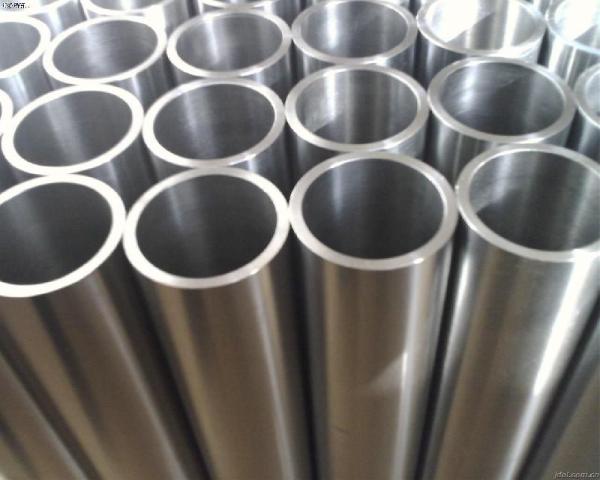

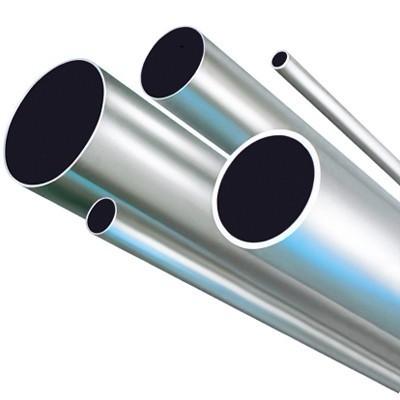

SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
SAE J524 DOM Steel Tubing Manufacturer China
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO9001-2000, TS16949，DNV
Model Number :
SAE J524 DOM Steel Tubing Manufacturer China
MOQ :
1 TONS
Price :
Negotiation
Packaging Details :

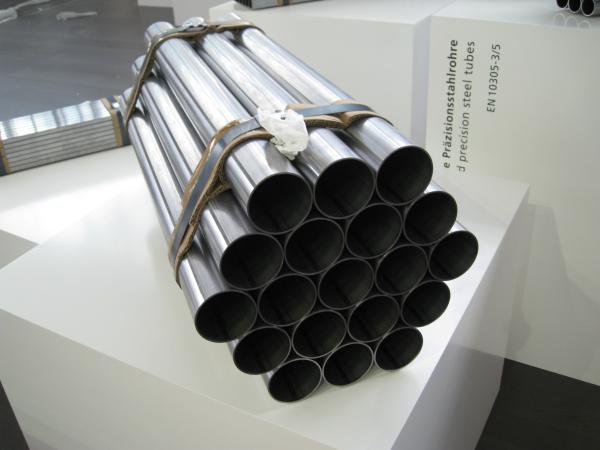

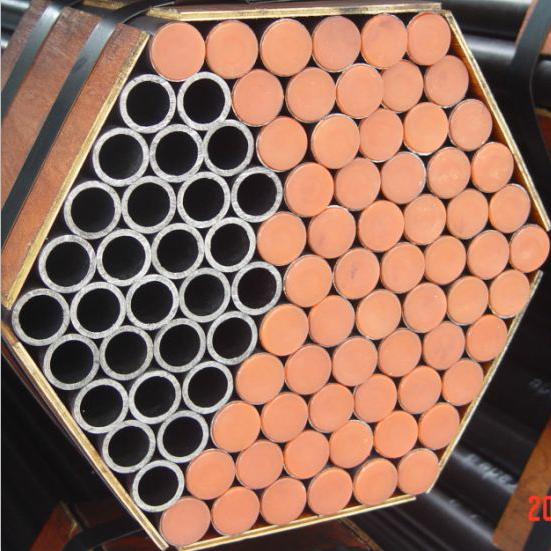

In Hexagonal Bundles
Delivery Time :
45-60 days
Payment Terms :
T/T, L/C
Supply Ability :
60000 tons annual
Application :
Auto parts
Shape :
Round
Material :
Carbon Steel
Dimensions :
30-350mm
Description

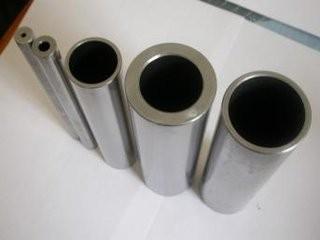

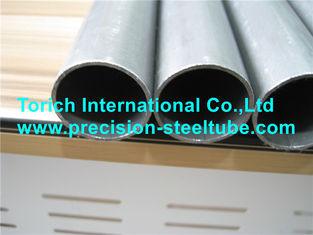

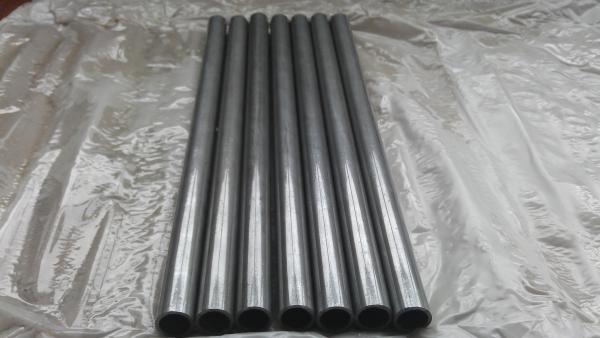

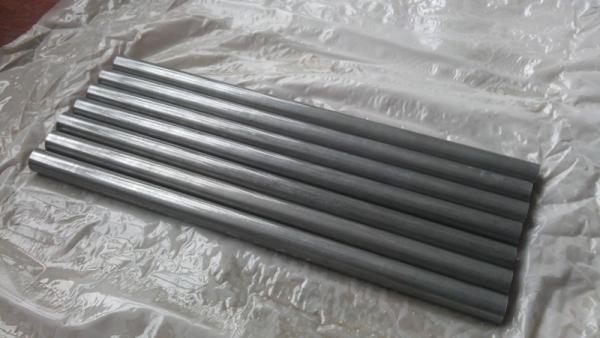

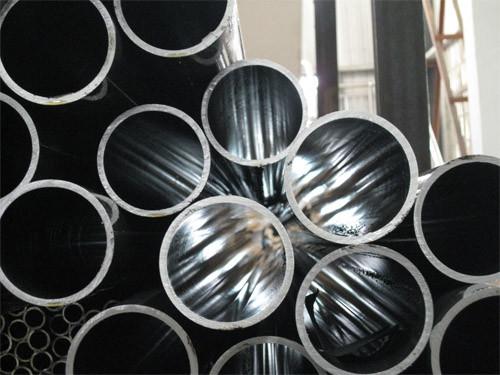

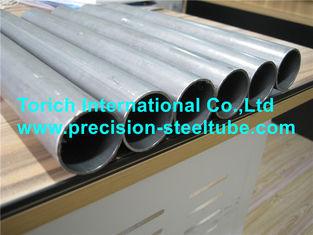

J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring

Standard: SAE J524 DOM Steel Tubing

Applications: for Bending and Flaring to auto parts

Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order

Table 1- TUBING OUTSIDE DIAMATER TOLERANCE
Nominal Tubing OD mm Tolerance ±mm
Up to 25.4 0.10
Over 25.4 to 38.1 inclusive 0.15
Over 38.1 to 50.8 inclusive 0.20
Over 50.8 to 88.9 inclusive 0.25
WT tolerance shall be not more than 10%

Table 2- CHEMICAL REQUIREMENTS
Element %
Carbon 0.18 max
Manganese 0.30 to 0.60
Phosphpris 0.040 max
Sulfur 0.050 max

Table 3- MECHANICAL PROPERTIES
Properties Value
Yield Strength,min 170 Mpa
Ultimate Strenth,min 310 Mpa
Elongation in 50mm, min 30%
Hardness ( Rockwell B),max 65.00

SAE J524 DOM Steel Tubing Manufacturer China SAE J524 DOM Steel Tubing Manufacturer China

SAE J524 DOM Steel Tubing Manufacturer China SAE J524 DOM Steel Tubing Manufacturer China

SAE J524 DOM Steel Tubing Manufacturer China
