Specifications
Brand Name :
Top Tent
Model Number :
S Series
Certification :
Engineer Structural Certficate
Resistance of Fabrics to Water Penetration Test
Ultra Violet Protection Test
Fire Action Analysis
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
Within 30 days
Packaging Details :
Standard Packaging: Materials are wrapped with stretch film and bundled together. PVC fabric are packed with PVC carry bag and Steel Parts are packed with pallet
Premium Packaging: Custom steel transport box
Clear-Span Width :
3m / 4m / 5m / 6m / 8m / 9m / 10m / 12m
Eave Height :
2.6m
Ridge Height :
3.23m / 3.41m / 3.59m / 3.77m / 4.19m / 4.34m / 4.52m / 4.87m
Roof Pitch :
20º
Bay Distance :
3m
Longest Component :
2.9m / 3.9m / 3.5m / 3.6m / 4.4m / 4.8m / 5.35m / 6.35m
Minimum Tent Length :
6m
Maximum Tent Length :
No Limit
Roof Fixing :
Bar Tensioning
Main Profile :
84 x 48 x 3mm (2-channel)
100 x 48 x 3mm (4-channel)
Max Allowed Windspeed :
80km/hr 0.3kn/m2
Eave Connection :
Hot-dip galvanized steel insert
Framework Material :
Hard pressed extruded aluminium 6061/T6(13HW)
Cover Material
Wall Fabric :
650g/Sqm White PVC
850g/Sqm White or Coloured PVC
950g/Sqm Clear PVC
Printing :
Full Roof Digital Printing available
Manufacturer's Warranty :
10 Year Frame
3 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
Applications :
Wedding
Coperrate Events
Festivals
Exhibitons
Sporting Events
Fairs and Markets
Description

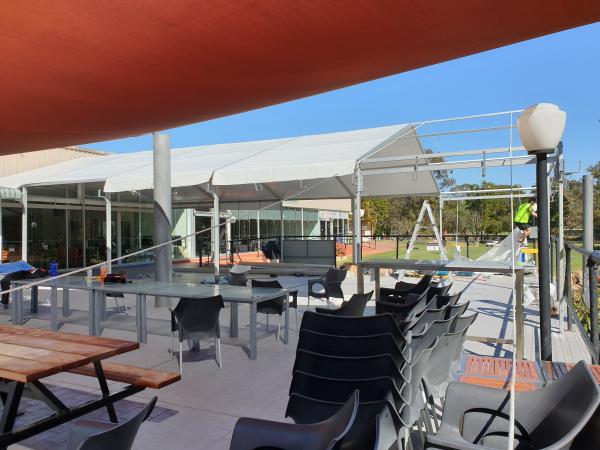

The Aluminum Clear Span A-Frame Tent Canopy (S Series) is engineered to deliver exceptional versatility and adaptability, making it an excellent choice for a wide range of events. From elegant weddings to vibrant parties and professional gatherings, this marquee system combines practicality with a sleek, modern design, ensuring it meets diverse event needs.

Distinct Features of the S Series:

The S Series stands out with its compact yet robust framework, featuring main profiles of 84 x 48 x 3mm (2-channel) or 100 x 48 x 3mm (4-channel). This lightweight yet sturdy design is optimized for medium-sized events while maintaining the structural integrity needed for challenging environments.

Modular Flexibility:

The S Series offers clear-span widths of 3m, 4m, 5m, 6m, 8m, 10m, and 12m with a bay distance of 3m. Its modular design supports a minimum tent length of 6m and no upper limit, allowing seamless customization for intimate or expansive setups alike. This adaptability ensures suitability for various occasions, from family celebrations to medium-scale corporate events.

Precision and Quality:

Crafted with meticulous attention to detail, the S Series emphasizes ease of installation, durability, and visual appeal. The smaller profile size is ideal for clients seeking portability and efficiency without sacrificing performance or aesthetics.

For Every Event:

The S Series is an excellent introduction to our range of clear-span tents, designed to accommodate events of moderate scale. For larger or more specialized setups, our G, M, and L Series offer enhanced features and expanded profile dimensions to meet evolving client demands.

At the heart of the S Series is a commitment to delivering safe, high-quality solutions backed by years of industry expertise. Whether you're planning a memorable wedding, a dynamic party, or a professional gathering, the S Series provides the perfect foundation to make your event truly remarkable.
