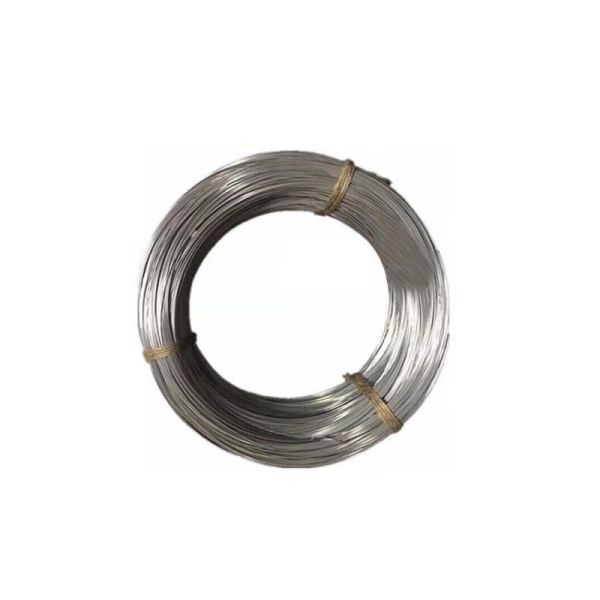

0.16mm Diameter 304 Stainless Steel Spring Wire
0.16mm Diameter 304 Stainless Steel Spring Wire
Specifications
Brand Name :
TOPONE
Model Number :
30
Certification :
ISO,SGS,Rosh
Place of Origin :
China
MOQ :
1000KG
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
>1000 Tons per month
Delivery Time :
10-20 days
Packaging Details :
Coil/Spool/Pallet/By customer request
Application :
Springs/Screw/wire form/Fishing
Diameter :
0.1-12mm
Material :
304
Surface :
Bright/Soap Coated
Product name :
0.16mm 304 Stainless Spring Wire
Type :
Hard/Soft
Packing :
spool,coil
Description

TopOne 0.16mm 304 Stainless Spring Wire

Key Advantages

  1. Superior Fatigue Life: Achieves ASTM 12+ grain size, reducing stress points. Proven 300% longer fatigue life in high-cycle applications (>1 million cycles) vs. standard 304 wire.

  2. Exceptional Consistency:

    • Ultra-tight diameter tolerance: ±0.01mm at 3mm (40% better than ISO 8458).

    • Minimal lot variation: Elastic Modulus (193 ±3 GPa), Tensile Strength (1850-2100 MPa). Ensures reliable fit and function.

  3. Enhanced Corrosion Resistance: Proprietary passivation creates a denser, more uniform protective layer. Passes 72-hour salt spray (ASTM B117) with Class A surface (no pitting), outperforming 304 in harsh environments.

  4. Long-Term Reliability & Force Retention: Very low stress relaxation (≤9.5% after 1000 hrs @ 200°C). FEA-validated for >15-year service in critical systems where standard 304 fails.

  5. Full OEM Support: Each coil includes detailed metallurgical certification (chemistry, torsion tests). Backed by 30+ years expertise for custom requirements (e.g., creep resistance, cryogenic toughness).




Key Advantages at a Glance

Feature Specification Benefit
Diameter 0.16 ±0.005mm Precision-calibrated for heavy-load springs & large-scale assemblies.
Material AISI 304 Stainless Steel Superior corrosion resistance (saltwater/chemical exposure).
Tensile Strength 215-2400 MPa Withstands extreme cyclic loading & high-impact environments.
Surface Finish Bright/Soap Coated Reduces friction, extends spring lifespan.
Certifications ASTM A313, RoHS Compliant Guaranteed aerospace/industrial compliance.
Spool 10KG coils Minimizes waste, optimizes production efficiency.


Why Choose Our 0.16mm Spring Wire?

✅ Industrial-Grade Resilience
Optimized for springs requiring high load capacity (valves, agricultural machinery, suspension systems).

✅ Traceable Quality
Sourced from Tsingshan/Yongxing mills with batch-specific material certifications.

✅ Heat & Corrosion Resistant
Performs in temperatures up to 870°C and harsh outdoor/chemical environments.

Typical Applications

  • Industrial: Conveyor systems, hydraulic valves, heavy equipment

  • Automotive: Suspension coils, clutch springs, brake components

  • Construction: HVAC dampers, seismic bracing, marine hardware

  • Energy: Oil/gas valve springs, turbine components

Order Specifications

Parameter Detail
Standard Diameter 0.16mm
Tolerance ±0.005mm
Spool Weight 10KG
Mill Origin Tsingshan, Yongxing (China)
Condition Spring-tempered, annealed
MOQ 1000kg (Sample coils available)

TopOne Wire – Your Reliable Stainless Steel Wire Supplier in China. Contact now!
