FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
Specifications
Brand Name :
Longvision
Model Number :
DJ series
Certification :
CE UL FCC ROHS
Place of Origin :
Guangdong, China
MOQ :
1 Sets
Price :
$1850.00-$245/Pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
3000 Square Meter/Square Meters Per Month
Packaging Details :
Flight case
Tube chip color :
RGB full color
Pixel :
P1.95/P2.604/P2.97/P3.91/P4.81
Brightness :
1000-5000nits
Material :
Dia-Casting Aluminum
Maintenance :
Front Rear
Curve degree :
Inner and outer curve
Gray scale :
16 bit
Lifetime :
100000Hours
Description

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

Advantages
  1. Adopt high refresh rate, high gray scale constant current driver IC from world-renowned top manufacturers. It has excellent driving performance, stable and reliable characteristics.
  2. The multi-layer circuit design ensures uniform current distribution and good heat dissipation of the lamp board, prevents color blocks from appearing under low gray-scale conditions, and enhances the anti-electromagnetic interference ability.
  3. Dedicated 14bits high gray-scale, high refresh drive constant current IC. The unique blanking shadow circuit protects LED and prevents surge leakage.
  4. The lamp driver is integrated, and the multi-layer circuit structure is designed. The current distribution is uniform. So the power consumption is small and the heat dissipation is fast.
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

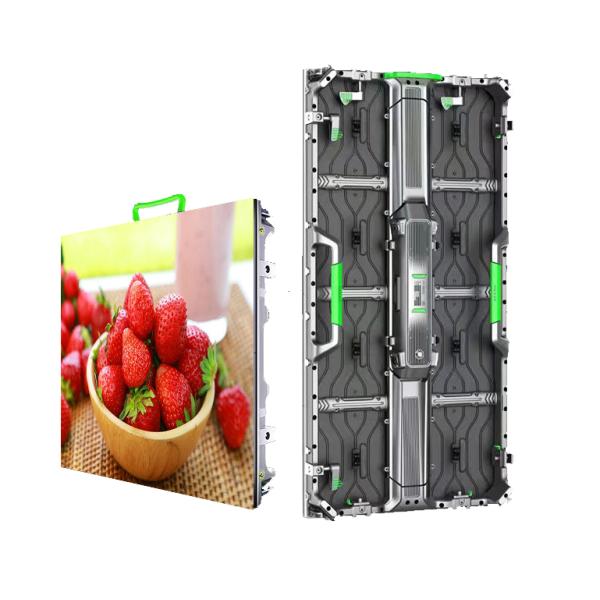

This cabinet size is 500x500mm and 500x1000mm, which can be mixed installed of two size to be multipe stage events led display size, fast lock in dia-casting cabinet which can be fast installation in events, widely used in different applications, conference, weddings, large concerts, lauch events, broadcasting TV show and so on.
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
This cabinet is easy and fast maintenance, fast lock within 5 seconds to install and dismantle the led panels,control card ,power box,Led module all Integrated in one

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
4 corner protections on the Led cabinet to protect the lamp and mask from damage
in events, getting a long life time and saving much cost for maintenance of Led panels.
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
Curve design,inner 15° and outer 15 °,widely used in mutiple different shape Led events.
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits
High brightness can show best video visual performance and more clear picture under
strong x-ray sunshine at day time Led events
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits As PWM IC driver was applied on lED cabinet, it enhances visual refresh rate by reinforcing pulse wave width and dividing conducting time to numbers of shorter conducting time. Besides, GCLK frequency multiplier increases GCLK frequency to realize doubling refresh rate
FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits Not only refresh rate, this led panel grayscale also benefits from PWM IC driver. Grayscale is smoother comparing with common IC driver especially at low grayscale

Specifications
Model
A-P2.84
A-3.91
A-3.91
A-4.81
A-5.95
Pixel Pitch (mm)
2.84
3.91
3.91
4.8
5.95
Application
Indoor Rental
Outdoor Rental
Pixel Density (dot/m²)
147456
112896
112896
65536
43264
LED Configuration
SMD2020
SMD2020
SMD1921
SMD2727
SMD2727
Brightness (CD/m²)
≥1000nit
≥1000nit
≥5000nit
≥5000nit
≥5500nit
Module Size (mm*mm)
250*250mm
Module Resolution (dot*dot)
96*96
64*64
64*64
52*52
42*42
Cabinet Size (W*H*D)/(mm)
500*500*80
Cabinet Resolution (dot*dot)
192*192
128*128
128*128
104*104
84*84
Material
Die-casting Aluminum
Angle Lock Degree
±5°,±10°
Cabinet Weight (±0.25kg)
7.0kg/cbn
7.0kg/cbn
7.5kg/cbn
7.5kg/cbn
7.5kg/cbn
Viewing Angle
Horizontal:140° Vertical:140°
Refresh Rate (Hz)
≥1920hz / ≥3840hz
Viewing Distance (m)
>2.84m
>3.91
>4.81
>5.95
Gray Scale (bit)
14bit
Max/Avg. Consumption (W/m²)
480W/180W
500W/200W
560W/220W
600W/250W
650W/280W
AC Input (V)
100～240V
100～240V
100～240V
100～240V
100～240V
AC Frequency (Hz)
50～60Hz
50～60Hz
50～60Hz
50～60Hz
50～60Hz
Waterproof Level
IP43
IP43
IP65
IP65
IP65
Maintenance
100% Front & Rear Service
Control system
Nova/Linsn/Colorlight..

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums,

tparking lots, building walls, hotel, meeting room, offices , hospital , schools ,

flactories , commercial lighting , shopping malls, supermarkets,concerts,

TV show and so on

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits


FAQ:
Q1: Are you trading company or manufacturer?

A1: Longvision is a professional LED display manufacturer, having been enrolled in led display industry

with professional R&D team and skilled QC team for 12 years.
Q2: What is your best price?
A2: One to one sales engineer to customer responsibility system.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.

Q3: What is What’s the delivery time?

A3: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time

depends on the items and the quantity of your order
Q4: How about your Warranty Term?
A4: 2-5 years warranty.depends on project.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order. and your exclusive sales engineer will also help you get over any problems.Q5 How about your Warranty Term?Q3 What is your best service?Q5 How about your Warranty Term?
A5 3-years warranty.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
and your exclusive sales engineer will also help you get over any problems.
