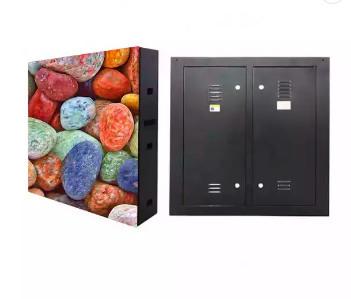

110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
110V / 220V Black Outdoor Led Display Screen Panel For Text
Specifications
Place of Origin :
Guangdong, China
Model Number :
LWC Series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
2 Sets
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
Outdoor Advertising
Color :
Black
Panel Size :
640x640mm 960mmx960mm 1280x1280mm
Pixel Pitch :
P2.5 P3 P4 P5 P6 P8 P10
Brightness :
5500-7000cd/sqm
Cabinet material :
Die-casting Magnesium Alloy
Refresh rate :
1920/3840
Life span :
100000hours
Weight :
25kg
IP rate :
IP65
Input voltage :
AC110V / 220V
Description

Advantages

1. Lighter and thinner:

15kg/m2 lighter than the conventional iron box, 20% thinner than the conventional box, saving transportation space
2. One Cabinet of three uses:
can be advertising fixed installation, adding hanging beam aviation plug and fast lock changing to be LED rental screen
3. High cost performance:
can support as the same price of iron cabinet, aluminum magnesium alloy material can resist corrosion and rust.
Specification
LED Module
Dimensions (w x h) 256mmx128mm Resolution (w x h) 32 x 16
Pixel pitch 8mm Pixel Density 15625/m2
LED Chip Epistar Pixel Configuration SMD3535
Standard Panel
Dimensions(w x h x d)(mm) 768 x 768 x 130mm Module Quantity(pcs) 18
Physical Resolution (w x h)(dots) 96 x 96 Physical Pixels (dots) 9216/cabinet
Weight/Panel (kgs) 26 Material Iron metal cabinet
Average Power/sqm (watts) 260 Max Power/sqm(watts) 870
Parameter Value
Brightness 6000cd/m2
Viewing Angle Horizontal 160 deg. Vertical 120 deg.
Gray Scale 16 bit
Refresh Rate 1920Hz
Driving Mode 1/4 Scan
Input Power Frequency 50 or 60 Hertz
Input Voltage 96-242 Volt
Blind Spot Rate <1/10,000
Lifetime at 50% Brightness 100,000 hours
IP Rating IP65
Operating Temperature -30 ~ +60 OC
Operating Humidity 10% ~ 90%
Control Distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal Input Format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating System Windows (2000/XP/Vista/7/10)
Application
110V / 220V Black Outdoor Led Display Screen Panel For Text110V / 220V Black Outdoor Led Display Screen Panel For Text
FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
