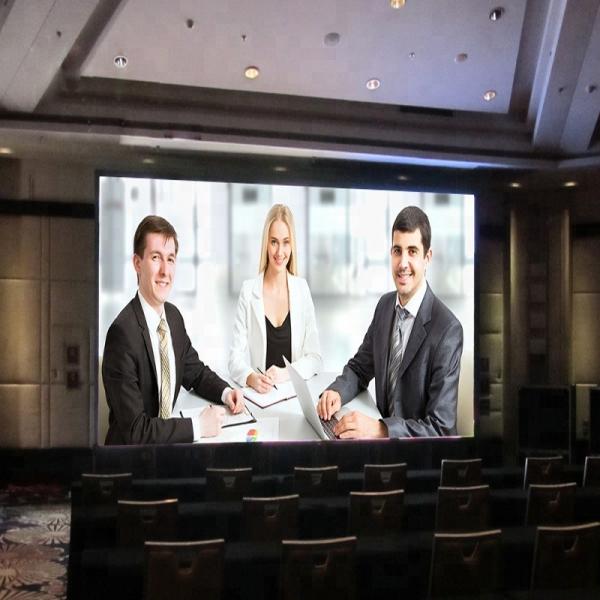

Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale
Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale
Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale
Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale
Specifications
Brand Name :
TOPLED
Model Number :
P1.25-P16
Certification :
CE ROSH FCC
Place of Origin :
China
MOQ :
2
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 per month
Delivery Time :
10-25 days
Packaging Details :
Woden case/Carton box/Flight case
Pixel pitch(mm) :
P1.25-P10 available
LED configuration :
1R1G1B
Module size(mm) :
Customize
Module resolution :
Customize Pixel
Grey scale :
14-16bit
Refresh rate(HZ) :
1920/2880/3840HZ
Panel size(mm) :
Customize
Panel resolution :
Customize
Panel power consumption(W) :
200-750W
Description

Specifications of P1.667 mm indoor

MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH1.667)

P1.667-45S indoor LED MODULE SPEICIFICATIONS
Pixel pitch :1.667mm Module size : 200X150mm Cabinet size :400×300×60(mm)
Physical density : 360000dots/sqm Pixel configuration: 1R1G1B Modules resolution: 120*90=2400DOTS
Modules weight: 0.3kg
Cabinet resolution :240*180 Cabinet 0.12sqp
MAIN TECHNICAL PARAMETERS
Best viewing distance :2m~15m Viewing angle Level GEQ160°Optional vertica lGEQ60°Optional
Average power consumption<400W/sqm Maximum power consumption<800w/sqm Control mode: synchronous control
Display card: DVI Driving GEQ method :1/45 scaning Frame Frequency GEQ 60Hz
Refresh frequency GEQ 1920Hz Equilibrium brightness 800cd/sqm Display working voltage(VAC)
Brightness adjustment Lighting sensor adjust automaticly 16 grade adjustable
Adjust by bands with software:100 grade adjustable
Computer system
WIN98,WINXP,WIN2000,etc
Input signal
RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
Control system
PCTV nonlinearity card, DVI display card,Linsn control system
Mean free error time GEQ 5000 hours Lifetime: 75000~100000 hours Pixel out of control rate <0.0002 one case
Project classification: PH2-26S Package : SMD 3in1 LED SMD 1010


Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale

Schermo LED شاشه LED Ekran LED LED-Bildschirm СВЕТОДИОДНЫЙ экран Écran LED,LED-näyttö,LED scherm,LED obrazovka,Ecran cu LED
এলইডি স্ক্রিন,Skrin LED,Tela do diodo emissor de luz,LED スクリーン,LED-skärm,หน้าจอ LED,LED ekran,Pantalla LED,מסך LED,Οθόνη LED,Layar LED,Màn hình LED,Pannello LED LED display,شاشه LED,Wyświetlacz LED,LED-Display,СВЕТОДИОДНЫЙ дисплей,Affichage LED,LED-näyttö
LED scherm,Displej LED,Afișaj cu LED,LED ডিসপ্লে,Paparan LED,Display LED,LED ディスプレイ,LED-skärm,LED displej,จอแสดงผล LED,СВІТЛОДІОДНИЙ дисплей,תצוגת LED,Οθόνη LED,Bảng LED,LED Billboard Display,Digital Outdoor LED Billboards,Los carteles LED,لوحات LED,Billboardy LED,LED-Plakatwände,Panneaux d’affichage LED,Panouri LED,Painéis de LED,LED ビルボード,ЛЕД билборди,LED bilbordi,LED reklam panoları,LED Білборди,Los carteles LED,שלטי חוצות,Πινακίδες LED,Cartelloni pubblicitari a LED,एलईडी होर्डिंग,Papan reklame LED,LED Signs For Sale,LED Signs,LED Panels,LED Module,LED Screen Rentals, LED Display Rental, LED Wall Rental,LED Wall for Retail,Rent LED screens, display signs,Giant Screens,LED TV Screen,Stage Screen

Lead Time:Delivery in 10-25 working days.

Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale

Full Color HD Indoor Led Display Screen SMD 3 In1 P1.667 14-16 Bit Grey Scale

Contact : Lark
Shenzhen TOPLED OPTOTECH Co.,Ltd
Tel:+86 0755-27889985
Mob/Wechat/Whatsapp:0086-13428762528
topsale04@cntopleds.net
Skype: lark.c
