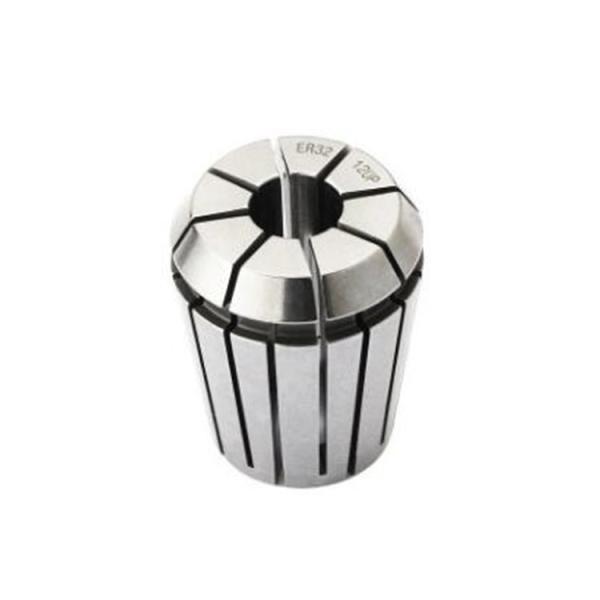

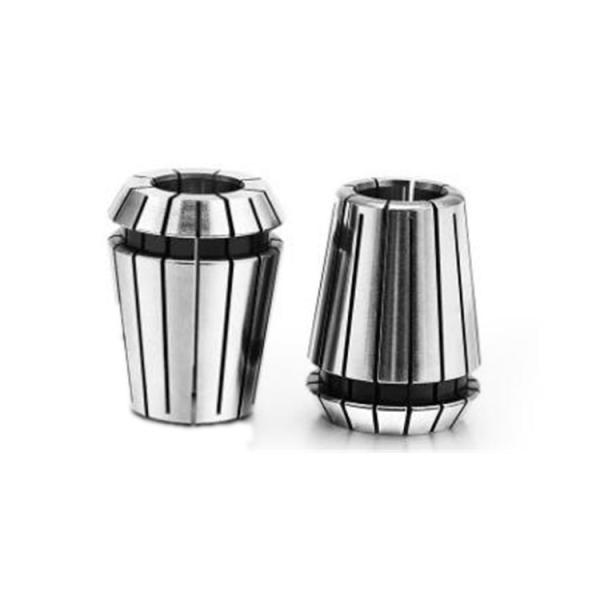

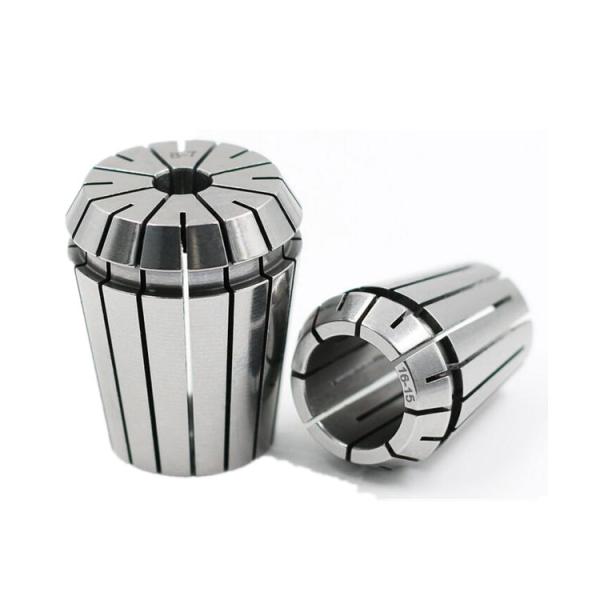

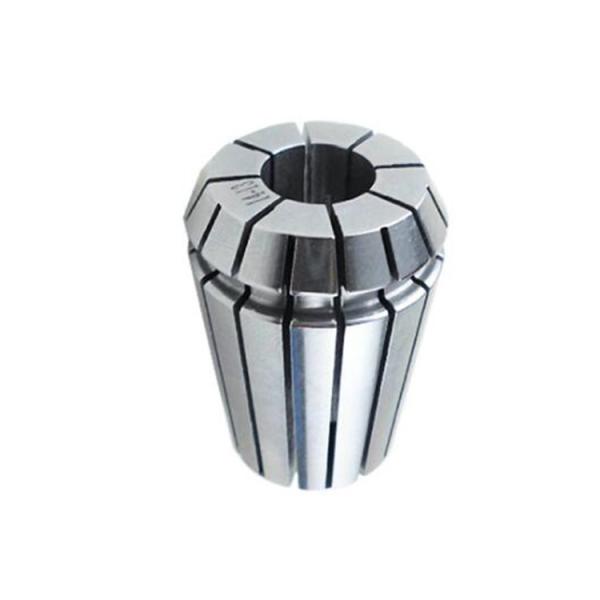

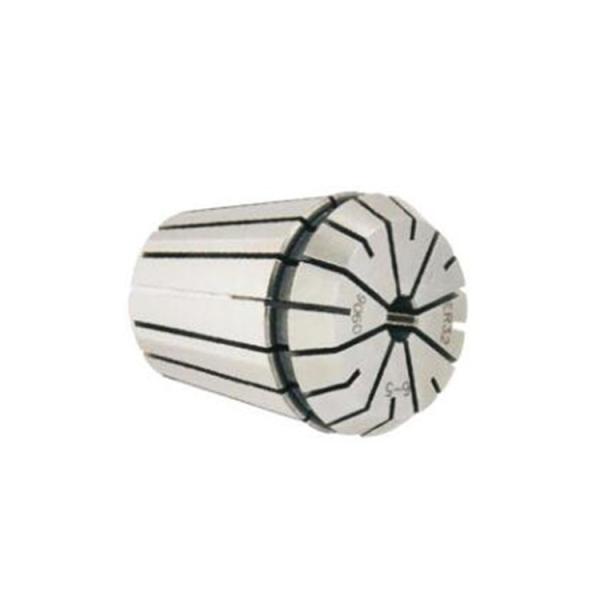

DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
Specifications
Brand Name :
QFMH
Model Number :
ER8,ER11,ER16,ER20,ER25,ER32,ER40,ER50
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD 1/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/MONTH
Delivery Time :
5DAYS
Packaging Details :
PLASTIC BOX
Accuracy :
0.008mm
AppliCATEion :
CNC Machine, Milling Machine, Drilling Machine
Clamping Range :
1-40mm
Features :
High Precision, High Quality, Long Service Life
Hardness :
HRC50-55
Heat Treatment :
High Frequency Quenching
Material :
65MN
Package :
Plastic Box/Carton/Pallet
Product Name :
Precision ER Collet
Size :
ER11, ER16, ER20, ER25, ER32, ER40
Brand :
ER Collet
Description

Spring Collet Precision 0.008mm DIN6499 CNC ER Collet Inch/Mm

Spring ER Collet Precision of 0.008mm refers to the level of accuracy or tolerance that can be achieved with this particular collet. This means that the collet is capable of holding a tool or workpiece with a precision of 0.008mm, allowing for very precise machining operations. This level of precision is important in industries such as aerospace, automotive, and medical, where tight tolerances are required for high-quality and accurate parts production.

DIN6499 Er32 CNC Collet Inch/Mm,Precision 0.008mm ER Collet with DIN6499,ER spring collet is a kind of cylindrical clamp that can be installed on the milling machine to confine the drill bit or milling cutter. ER spring collet is a fixing device used to fix and reinforce parts that need to be modified.ER spring collet is an important part of all parts of clamping mechanism. It works under intense motion conditions and determines the processing accuracy. Therefore, it is very important to determine the basic parameters of the spring chuck (number of discs, cone angle, jaw and length of disc) to ensure high working capacity.

SpecifiCATEEion
1) Runout of our ER collet are within 0.005mm-0.015mmm
2) ER8, ER11, ER16, ER20, ER25, ER32, ER40 and ER50 collet
3) ER Collet Made of high quality steel:65Mn
4) Din 6499 Collet ER Collet Packing:inner packing is plastic or paper box,the outer packing is cartons.
5) Precision ER Collet We normally supply two kinds of accuracy: first accuracy 0.008mm,second accuracy 0.015mm. The highest accuracy is 0.005mm.
6) Spring Collet Inspection:100% collet inspection.

Model d D D1 D2 L Collopsible
Capacity
ER8 1.0-5.0 8 8.45 6.5 13.5 0.50
ER11 1.0-7.0 11 11.5 9.5 18 0.50
ER16 1.0-2.5 16 17 13.8 27.5 0.50
ER16 2.5-10.0 16 17 13.8 27.5 1.00
ER20 1.0-2.5 20 21 17.4 31.5 0.50
ER20 2.5-13.0 20 21 17.4 31.5 1.00
ER25 1.0-2.5 25 26 22 34 0.50
ER25 2.5-16.0 25 26 22 34 1.00
ER32 2.0-2.5 32 33 29.2 40 0.50
ER32 2.5-20.0 32 33 29.2 40 1.00
ER40 3.0-26.0 40 41 36.2 46 1.00
Model d D D1 D2 L L1 L2 L3
ER11 1/32-17/64 11 11.5 9.5 18 3.80 2.5 2
ER16 1/32-3/8 16 17 13.8 27.5 6.26 4 2.7
ER20 1/32-33/64 20 21 17.4 31.5 6.36 4.8 2.8
ER25 5/64-5/8 25 26 22 34 6.66 5 3.1
ER32 1/16-25/32 32 33 29.2 40 7.16 5.5 3.6
ER40 1/8-1″ 40 41 36.2 46 7.66 7 4.1

DIN6499 CNC ER Collet HRC55 Precision 0.008mm Spring Collet
