ZK5166 High temp vacuum forming tooling board,carbon fiber tooling board, checking fixture tooling board
ZK5166 High temp vacuum forming tooling board,carbon fiber tooling board, checking fixture tooling board
ZK5166 High temp vacuum forming tooling board,carbon fiber tooling board, checking fixture tooling board
ZK5166 High temp vacuum forming tooling board,carbon fiber tooling board, checking fixture tooling board
Specifications
Brand Name :
ZK-Tool®
Model Number :
ZK5166,ZK1600
Certification :
Refer to samples
Place of Origin :
China
MOQ :
10 sheets
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
>100m³ /month
Delivery Time :
7-15 days after receipt the deposit

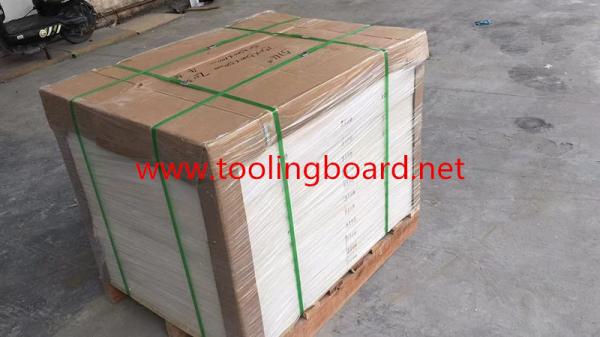

Packaging Details :
Standard export packing
Compressive Strength :
≥90 MPa
Material :
Pu resin,aluminum powder
Cnc Machinable :
Very easily machined
Surface Finish :
Smooth and paintable
Density :
1.7 g/cm3
Hardness :
Shore D 85-90
Color :
Beige,ivory
Chemical Resistance :
Excellent
Description

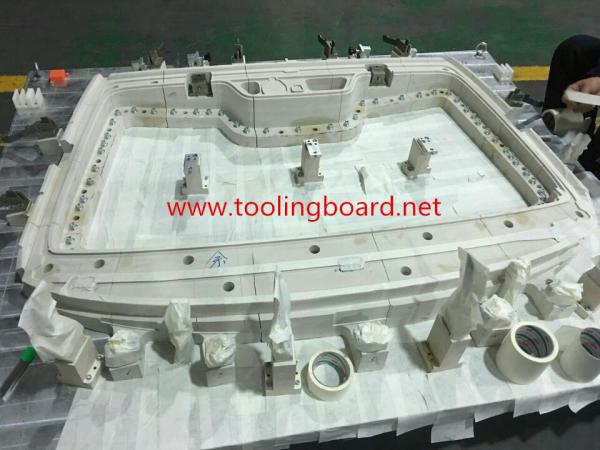

ZK5166 is a high temp polyurethane tooling board with low dust,smooth surface,stable dimension and high performances.It is used for high temperature applications,such as, vacuum forming tools,carbon fiber molds, checking fixtures, thermoforming,metal stamping tools. ZK5166 is one the most popular tooling boards in China.
Model NO. ZK5166
Color beige/grey
Density(g/cm3) 1.7
Hardness(Shore D) 85-90
Coefficient of thermal expansion(10-6 K-1) 45-50
Thermal variant temperature(°C) 95-105
Compressive strength(N/mm²) 90-100
Flexural strength(N/mm²) 80-90
Tensile strength(N/mm²) 30-40
Key Properties 1. Very easily machined
2. Good temperature resistance
3. High impact and good edge strength
4. Excellent good compressive strength
Applications 1. Metal forming tools,Foam molds
2. Sheet metal stamping
3. Fixtures and gauges
Dimension(mm) 750 x 500 x (35/50/60/75/100)
1000 x 500 x (35/50/60/75/100)
