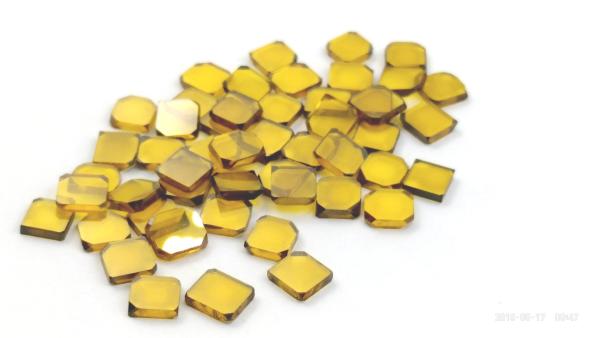

SCD12-S HPHT Synthetic Diamonds Single Crystal Diamond Material For Wear Part
SCD12-S HPHT Synthetic Diamonds Single Crystal Diamond Material For Wear Part
Specifications
Brand Name :
ZZDM
Model Number :
SCD12-S
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1pc
Price :
USD,JPY,RMB
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-8work days
Usage :
Cutting, making tools, for producing normal cutting and abrasive tools, decorating, jewellery etc
Material :
Synthetic diamond, Graphite, Abrasives, Single-crystal diamond, high quality industrial synthetic diamond
Size :
L:1mm-7.0mm *W:1mm~7mm*T:0.5~2mm,Such As 2.0*2.0*1.2，3.0*3.0*1.2，4.0*4.0*1.5, 5.0*5.0*1.2，6.0*6.0*1.0，7.0*7.0*1.5 etc.
Color :
Yellow
Application :
For Making Precision Diamond Tools, For Producing Normal Cutting and Abrasive Tools, As what you need
Diamond type :
Synthetic(Lab created)
Hardness :
10
Description

SCD12-S,Synthetic Diamond, Single Crystal Diamond,HPHT Singel Crystal Diamond,HPHT Diamond

HPHT SCD/MCD—Mono Crystalline Diamond

The ZZDM synthetic single crystal diamond series are synthesized by HPHT (high pressure, high temperature) under severe growth conditions. In order to accurately synthesize large high quality crystals, it is necessary to have high purity raw materials and advanced technology for maintaining synthesizing conditions constant over a long period of time.

ZZDM Single Crystal Diamond (SCD or MCD) plates, Ib type, processed from large single crystal diamonds, contain relatively large sectors substantially free of dislocations and stacking faults.

Our Single Crystalline Diamond is colorless (from brown to colorless), can laser cut to different size and thickness upon to customs’ special requests, like square shape, rectangle shape, round and triangle shapes.

Characteristics

★High putity and impact toughness

★Good impact thermal stability and chemical stability

★Outstanding thermal conductivity

Applications

★Precision cutting tools for non-ferrous and non-metallic materials

★Dressing tools,wear part

★Wire drawing dies,etc.

Grade

SCD12-S and SCD22-S are square shape with two unfilled corners. SCD12 grade is with good transparency and no visible inclusions, while SCD22 is with slightly visible inclusion.

Code Length Width Thickness
SCD12/22-S202008 2.0~2.4 2.0~2.4 0.8
SCD12/22-S202010 2.0~2.4 2.0~2.4 1.0
SCD12/22-S202012 2.0~2.4 2.0~2.4 1.2
SCD12/22-S252510 2.5~2.9 2.5~2.9 1.0
SCD12/22-S252512 2.5~2.9 2.5~2.9 1.2
SCD12/22-S303010 3.0~3.4 3.0~3.4 1.0
SCD12/22-S303012 3.0~3.4 3.0~3.4 1.2
SCD12/22-S353510 3.5~3.8 3.5~3.8 1.0
SCD12/22-S351212 3.5~3.8 3.5~3.8 1.2
