Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Specifications
Brand Name :
TONTEN
Model Number :
TT-1500
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
60 sets per month
Delivery Time :
5-7 work days
Packaging Details :
Export standard wooden box packaging or container
Powder :
22kw
Specification :
1500×350×150×460±20mm
Rotate Speed :
20-22r/min
Weight :
12500kg
Input size :
30mm
Diameter :
1500mm
Processing :
7-8t/h
Name :
Mining Gold Wet Pan Mill
Description

Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator

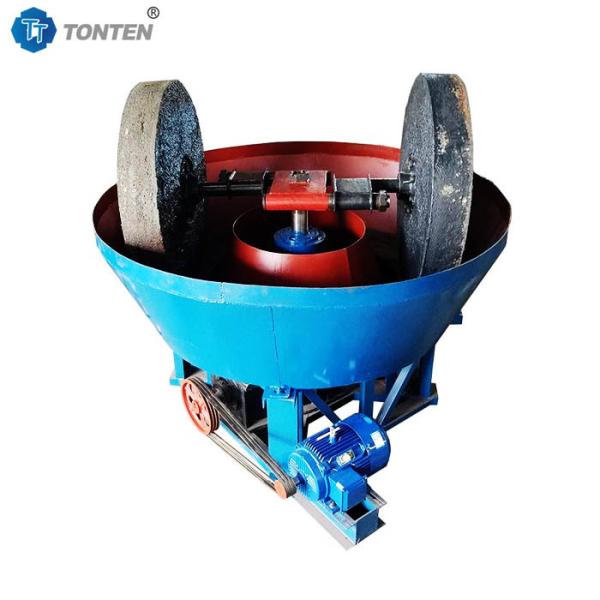

Wet pan mill machine introduction:
Gold mill is also called wet mill, wheel mill.Wet pan mill mainly used for equipment that crushes materials after they are crushed. . It is widely used in the production industries of gold, iron, molybdenum, copper, zinc, antimony, cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics, etc., for dry or wet grinding of various ores and other grindable materials. All ores that can be selected by ball mills can be used for gold grinding machines. The gold grinding machine is easy to install and maintain, with low investment and high output. The full name of the wet grinding machine is wet grinding machine. According to different operating methods, it is divided into gold grinding machine, mercury mixing mill, iron grinding machine, and electric mill; according to different structural methods, it is divided into wheel mill, double roller mill, and triple roller mill. The wet grinding machine is developed on the basis of the ancient stone mill through modern improvements. It is used for grinding operations of various ferrous metals, non-ferrous metals, and non-metallic minerals, as well as grinding, selecting, and processing of rare and precious metals such as gold and silver.

Features:
1. It can disassembled and assembled, which is convenient for transportation in areas with narrow roads.
2. Grinding wheel is heavy and runs smoothly, can crush ore into finer particles in shorter time and achieve monomer dissociation of mineral.

Specification:

Model Specification(mm) Feed Size(mm) Speed(r/min) Power(kw) Weight(T)
1600A 1600*400*200*500±20 <25 20-22 6-30 14.2
1500A 1500*350*200*460±20 <25 20-22 6-22 13.5
1500B 1500*350*150*460±20 <25 20-22 6-22 12.6
1500C 1500*300*150*420±20 <25 20-22 6-22 11.2
1400A 1400*250*150*350±20 <25 16-18 6-18.5 8.6
1400B 1400*250*150*350±20 <25 21-23 6-18.5 8.5
1350A 1350*250*150*350±20 <25 16-18 6-18.5 8.2
1350B 1350*250*150*350±20 <25 21-23 6-18.5 8
1300A 1300*250*150*350±20 <25 16-18 6-15 7.6
1300B 1300*200*150*350±20 <25 21-23 4-15 7.5
1200A 1200*220*80*270±20 <25 17-19 6-7.5 5.5
1200B 1200*200*80*250±20 <25 23-25 6-7.5 5.5
1100A 1100*200*80*250±20 <25 17-19 6-7.5 5
1100B 1100*180*80*250±20 <25 23-25 4-7.5 5
1000 1000*200*80*250±20 <25 13-15 4-7.5 4.5
