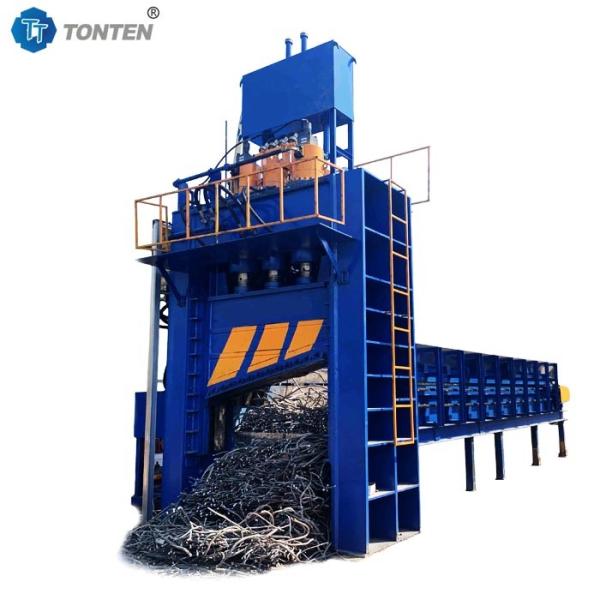

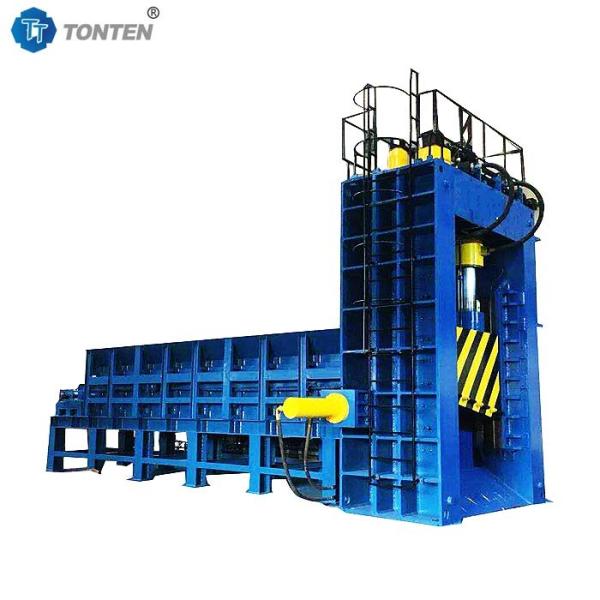

Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Specifications
Brand Name :
TONTEN
Model Number :
TT-G180x600
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
30 Sets per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden packaging or container
Price :
Negotiable
Capacity :
15-20t/h
Length of knife edge :
2000mm
Inside diameter of Shear cylinder :
360mm
Tank size :
8000x1560x700mm
Power :
55x4kw
Shear range :
Scrap Metal Iron
Shear frequency :
3-4times/min
Item :
Gantry Shears
Description

Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing

Product introduction:
Gantry shears suitable for various metal plates and heavy scrap steel shearing. suitable for crushing heavy scrap and entangled materials that cannot be processed by scrap steel crushing, such as steel, steel bars, steel plates, nickel plates, steel plates, round steel, steel pipes, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, metal briquettes, aluminum alloys, copper materials, iron filings, steel wires, automobiles, metal briquettes, etc. The gantry shears use new electro-hydraulic control system and a reinforced oil cylinder.


Working principle
The hydraulic transmission device of the gantry shear drives the punching mechanism and the shearing mechanism. After the material is grabbed into the feeding box through the automatic feeding box, the waste material is automatically sent to the cutting position of the blade by the conveyor belt. The feeding speed can be adjusted by the speed regulating motor. The shearing mouth of the steel plate cutter is composed of two blades, the lower blade is mostly fixed blade, upper blade is mostly movable blade. After the scrap iron enters the blade, the stamping device presses the scrap iron down and fixes it, and then the upper blade moves downward to cut the scrap iron. After cutting, the upper blade and the punching mechanism return to their original positions and wait for the next shearing process.

Specifications of Gantry Shears:

Shear cylinder
The inside diameter of the cylinder
360MM
route

1100MM
640T
full thrust
320KN
quantity
2
Press cylinder
The inside diameter of the cylinder
160MM
route
1200MM
120T
full thrust
60KN
quantity
2
Fast cylinder
The inside diameter of the cylinder
180MM
route
1100MM
80T
full thrust
80KN
quantity
1
Tank cover cylinder
The inside diameter of the cylinder
100MM
route
400MM
240T
full thrust
20KN
quantity
12
Tank size
8000X1520X600MM (L X W X H) can be lengthened
Application material
aluminum alloys, copper, iron, steel,automobiles,metal
