Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Specifications
Brand Name :
TONTEN
Model Number :
TT-1500
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
7-10 work days
Packaging Details :
Export standard wooden box packaging or container
Roller diameter :
1500MM
Grinding disc diameter :
2000MM
Processing :
0.8-1.5TPH
Power :
22kw
Speed :
12r/min
‌Complete machine weight :
9500kg
principle :
wheel Grinding
Suitable :
Gold, silver and other rare and precious metal minerals
Description

Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price

Introduction:

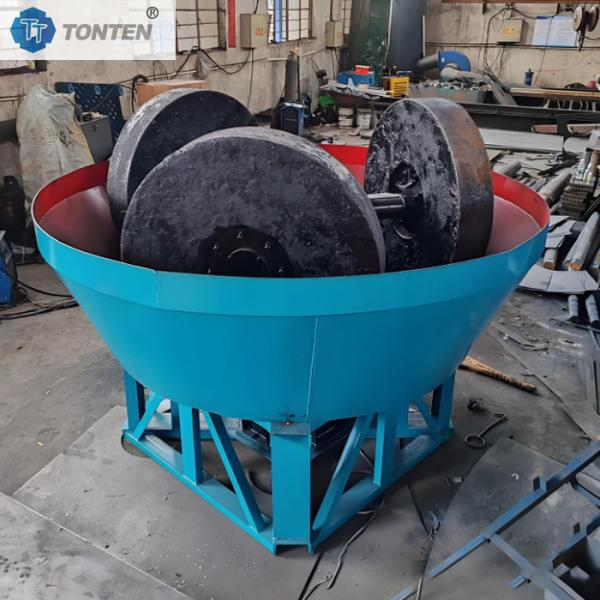

Gold round grinder is a device used to finely grind and process gold ore or metal materials. It plays a vital role in the gold extraction and smelting processes. Gold grinders typically grind the ore through mechanical friction and impact. The machine contains a roller and a plate, which gradually grind the ore under the pressure of the rollers. It utilizes a rotary motion, achieving grinding through the combined motion of the rollers' orbital and rotational motion. Combined with tools such as mercury separation or a gold catching cloth, this improves precious metal recovery. TONTEN gold grinding machines utilize an electric drive, offering increased efficiency and suitability for large-scale production.

Applications:
Mining: Used for preliminary processing and fine grinding of gold ore to improve gold recovery.
Metallurgy: Used in the metal smelting process to pre-treat ore for subsequent smelting steps.
Jewelry: Used for the recovery and reprocessing of scrap metal.

Features:
1. Utilizing a double-roller or multi-roller design, the rollers and plate are cast in a single-piece process, incorporating special wear-resistant materials for exceptional wear resistance and durability.

2. Compact structure, easy assembly and disassembly, safe and reliable use.
3. High efficiency: Quickly grinds ore into fine powder, significantly improving production efficiency.
4. When the roller wears out, only the outer ring needs to be replaced, while the main components can be used for a long time.

Specification:

Model
Feeding size
(mm)
Output size
(mm)
Capacity
(t/h)
Speed
(r/min)
Motor power
(kw)
Weight
(kg)
900
<15
0.6-0.07
0.3
17-19
5.5
3500
1000
<20
0.6-0.07
0.5
16-18
5.5
4800
1100
<20
0.6-0.07
0.6-0.8
16-18
7.5
5200
1200B
<20
0.6-0.07
0.8-1.2
16-18
7.5
5530
1200A
<20
0.6-0.07
1-1.3
21-23
7.5
5500
1300
<20
0.6-0.07
1.5
16-18
15
7600
1400
<20
0.6-0.07
1.5-2
16-18
18.5
8550
1500B
<30
0.6-0.07
2.5-3
20-22
22
12000
1600
<30
0.6-0.07
4-5
20-22
30
14600

Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
