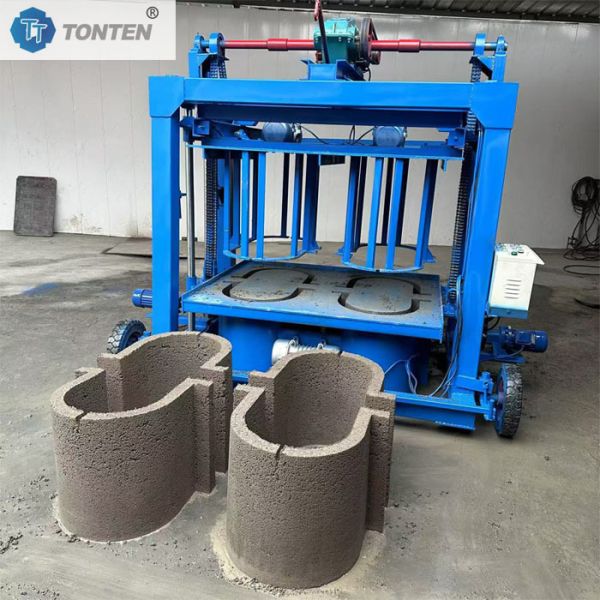

Concrete Well Ring Making Machine Piles Well Ring Brick Machine

Structure:

Machine Frame: The well ring forming machine is welded from high-strength steel, ensuring high stability and the ability to withstand high pressure and heavy loads.

Hydraulic System: Comprising an oil tank, oil pump, and cylinders, this system provides the pressure and power required for the well ring forming process.

Vibration Device: Typically driven by an electric motor, this device works in conjunction with a vibrating table to ensure uniform well ring forming and improve brick density.

Feeding System: Fully automated, using a conveyor belt or hopper to automatically feed raw materials into the brick-making cavity, enhancing production efficiency.

Control System: Equipped with a PLC controller for fully automated operation, the user-friendly interface facilitates setting and monitoring the production process.

Forming Cavity: Designed with various molds to accommodate the production of bricks of different sizes and shapes for well rings.

Features:

High-efficiency production: One machine can produce multiple types and specifications of bricks and well rings, resulting in high production efficiency.

High degree of automation: Automation is achieved through a PLC system, reducing manual operation and improving production safety.

Energy-saving and environmentally friendly: Utilizing advanced motor and hydraulic technology, energy consumption is low, meeting environmental standards.Brick-ringing machines are efficient, environmentally friendly, and widely applicable production equipment, making them ideal for modern building construction requirements.

The well ring machine has a simple and modular structure, which facilitates maintenance and replacement of parts, reducing production downtime.

Highly adjustable: Different well ring specifications can be quickly adjusted by changing molds to adapt to changing market demands.

Applications:

Urban Construction: TONTEN well ring machines are used to produce bricks needed for construction, such as wall bricks and floor tiles.

Infrastructure: Well ring machines are widely used in road, bridge, and water conservancy projects, providing robust foundation materials.

Municipal Engineering: Produces specialized building materials such as drainage ditches and well ring bricks.

Working Principle:

Raw Material Preparation: Cement, sand, fly ash, and other raw materials are mixed in a certain proportion and placed into the feeding system.

Automatic Feeding: The feeding system automatically transports the mixed raw materials to the molding cavity.

Vibration and Molding: Under the action of the hydraulic system, a vibration device applies a certain pressure and vibration to the raw materials, promoting thorough mixing and molding.
