What Is a Solar Damper?

A solar damper is a mechanical damping device used in solar tracking systems to absorb vibration and reduce excessive movement caused by wind loads and dynamic forces.

Unlike a linear actuator, which drives the movement of the solar tracker, a solar damper controls and stabilizes that movement. By minimizing wind-induced oscillation, it helps improve tracker stability, reduces stress on mechanical components, and supports reliable long-term operation in demanding outdoor environments.

In utility-scale solar tracking projects, dampers are typically installed at key structural positions where higher wind loads may occur, helping the entire tracking system operate more smoothly, safely, and reliably.

Why Do Solar Tracking Systems Need Dampers?

Strong winds are one of the biggest challenges for utility-scale solar tracking systems. Without effective damping, wind-induced vibration and excessive movement can increase stress on actuators and structural components, potentially affecting long-term system stability.

Solar dampers help absorb vibration, control excessive movement, and improve the overall stability of the tracker structure. Working together with linear actuators, they help the system operate more smoothly under changing outdoor conditions.

How Does a Solar Damper Work?

A solar damper does not generate movement. Instead, it provides damping resistance against excessive motion, helping reduce sudden vibration and control oscillation caused by wind and other external disturbances.

During normal tracker operation, the damper works together with the tracker structure and drive system to help stabilize movement without replacing the positioning function of the linear actuator.

Designed for Solar Tracking Systems

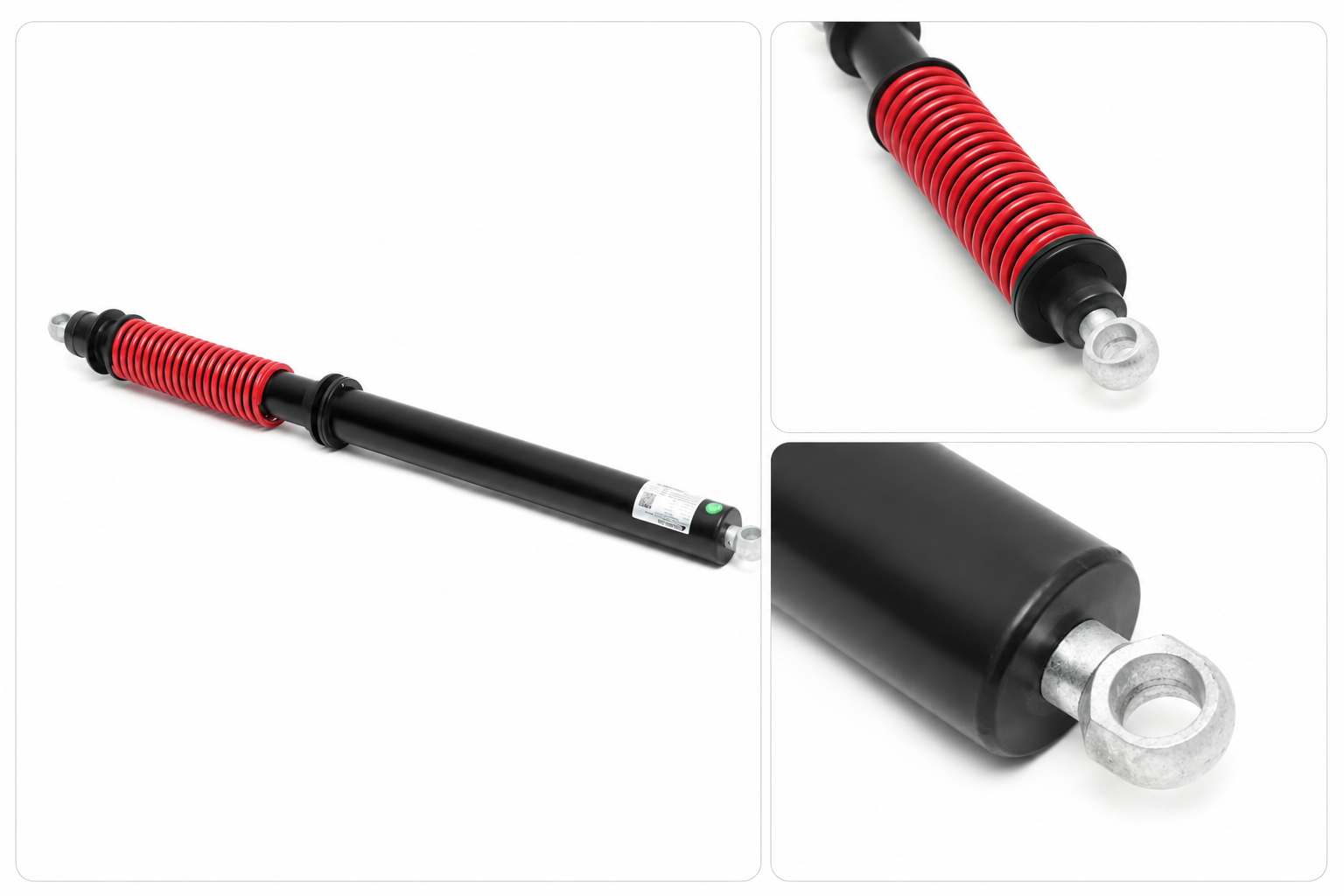

The U21A solar damper is developed for photovoltaic tracker applications where controlled damping is required under wind and other external disturbances.

Its force capability and installation dimensions are selected together with the tracker structure and project conditions.

U21A Solar Damper Specifications

Dimensions & Installation

U21A stroke, fully extended length and fully retracted length are defined according to the tracker geometry and installation position.

The standard front-end and rear-end connections use Ø21.5mm mounting holes. Customized mounting-hole configurations can also be evaluated when required by the tracker structure.

Typical Applications

• Utility-scale solar tracking systems
• Single-axis solar trackers
• High-wind solar installations
• Desert solar power plants
• Ground-mounted photovoltaic systems

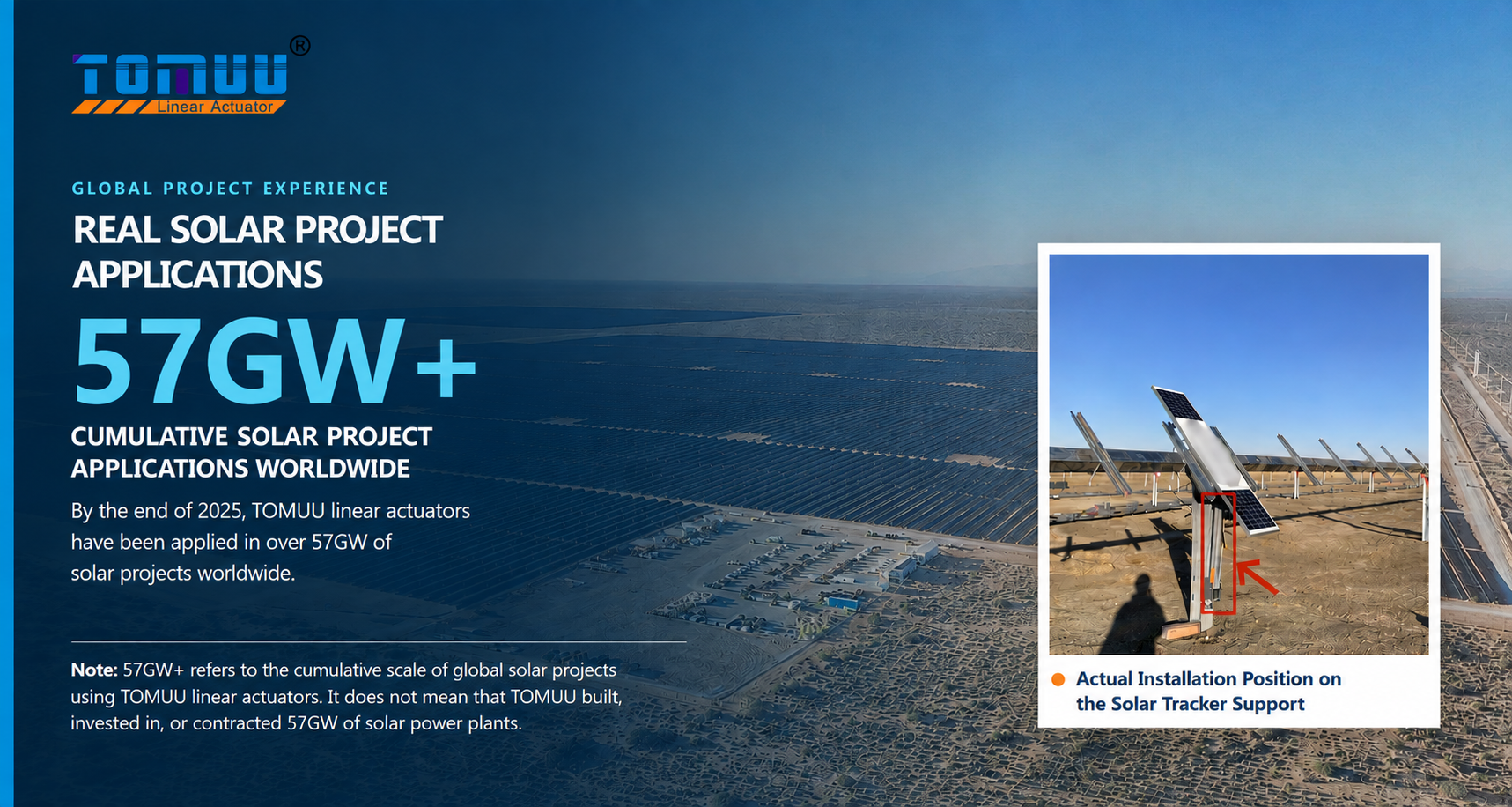

Solar Tracker Project Experience

TOMUU U20 Series actuators and U21 Series dampers have been supplied together for utility-scale photovoltaic solar tracking projects. The actuator drives and positions the tracker, while the damper helps control unwanted movement caused by wind and other external disturbances.

View U21 Damper Project Case →

Why TOMUU for Solar Tracker Dampers?

TOMUU has been involved in solar tracking applications since 2017, with actuator solutions applied in more than 57GW of solar projects worldwide.

Through these projects, TOMUU has accumulated experience with tracker structures, drive systems, installation conditions and long-term outdoor operating environments.

Reliable solar tracking is not only about driving and positioning the structure. Under wind and other external disturbances, controlling unwanted movement is also an important part of tracker mechanical stability.

Built on this accumulated solar tracking experience, TOMUU expanded its solar product range from drive actuators to complementary tracker components, including the U21 Series solar damper.

Solar Manufacturing Capability

TOMUU supports solar tracking projects with manufacturing resources for actuator and damper products. Production is arranged according to the mechanical configuration and installation requirements of different tracker projects.

R&D & Testing for Solar Tracker Components

Solar tracker components are evaluated for the mechanical and environmental conditions of long-term outdoor operation.

The current U21A specification includes IP66 protection, an operating temperature range of -40°C to +65°C, and an 800-hour salt spray test.

Find the Right Solar Tracker Damper

Send us your required force, stroke and installation dimensions for damper selection.
