Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Specifications
Model Number :
U7K
Rated Voltage :
12Vdc/24Vdc
Position Feedback :
Hall Sensor
Continuous Current(A) :
2.8A
Protect Feature :
Waterproof
Usage :
Smart Automatic Window Opener
Price :
$27-37 / piece
Torque :
Requests
Efficiency :
IE 1
Construction :
Permanent Magnet
Type :
Gear Motor
MOQ :
1 piece
Speed(RPM) :
3000rpm
Warranty :
3 months ~ 1 year
Protection class :
IP65/IP66/IP67
Place of Origin :
Guangdong, China
Speed :
10-25 mm/s @ no load
Commutation :
Brush
Stroke :
10-800mm Customized
Certification :
ce
Brand Name :
TOMUU
Max. load :
1500N
Duty cycle :
10%
Limit switch :
preset
Description

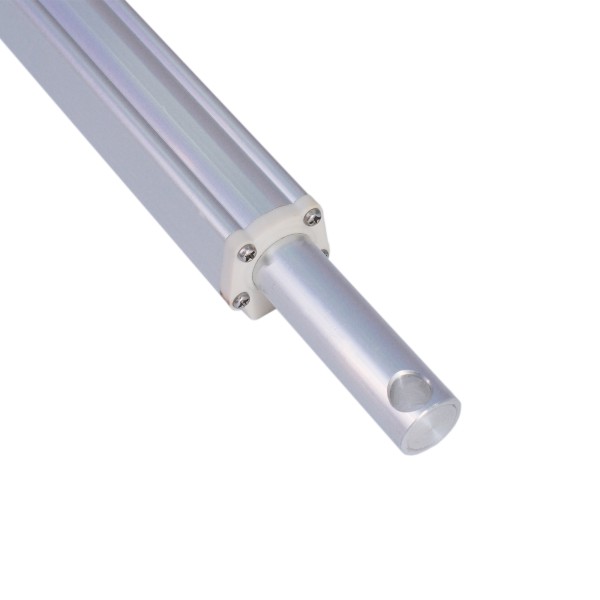

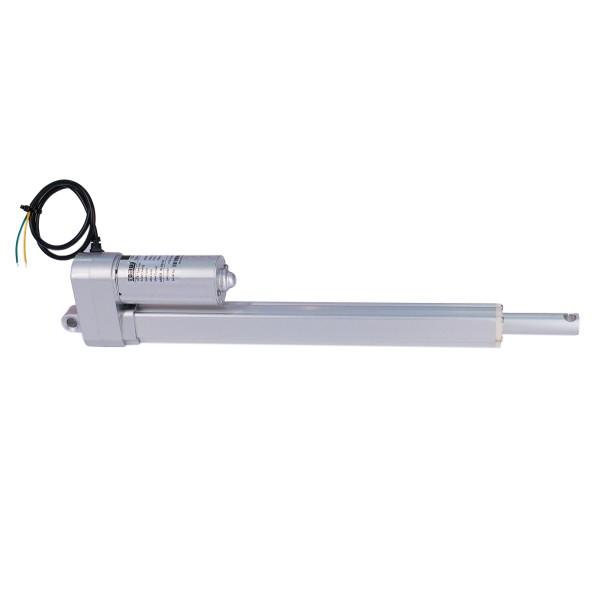

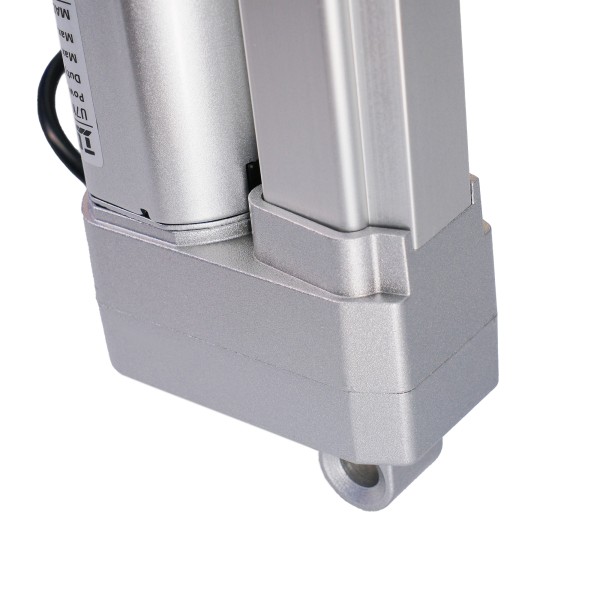

Mini U7K 12V Linear Actuator for Smart Automatic Window Opener
The TOMUU U7K rainproof mini linear actuator enables automated opening and closing of smart building windows. This 12V DC actuator delivers 500N thrust, making it ideal for aluminum alloy residential and commercial windows.
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Featuring an IP54 rainproof shell that protects against water splashes, this ultra-quiet actuator operates at noise levels that won't disturb indoor occupants. Its compact design allows for discreet installation within window frames, while built-in limit switches ensure safe control of window opening range.
Technical Specifications
ParameterSpecification
Voltage12V DC / 24V DC
Max Load1500N
Speed10-20mm/s
Duty Cycle10%
Protection ClassIP65/IP66/IP67
Noise Level≤52dB
Stroke50-800mm
MaterialAluminium Alloy
Dimensions
Mini U7K 12V Linear Actuator For Smart Automatic Window Opener
Key Advantages
  • Light thrust and silent operation perfect for residential smart windows
  • Rainproof casing ensures reliable performance in exterior window applications during rainy conditions
  • Mini hidden installation preserves building window aesthetics without bulky exposed components
  • Built-in limit switches enable direct integration with smart home control systems
  • Multiple stroke sizes available to match different window lengths
  • CE & RoHS certified for smart building and window automation suppliers
