Specifications
Brand Name :
TOM
Model Number :
500-3000ml
Certification :
CE ISO SGS
Place of Origin :
Jiangsu,China
MOQ :
1
Description

Product Description

Advanced Toilet Cleaning Liquid Filling Machine For Efficient ProductionFull Automatic 10ml-100ml Pesticide Rotary Tracking High Speed Filling Line

Product Description

Main features:

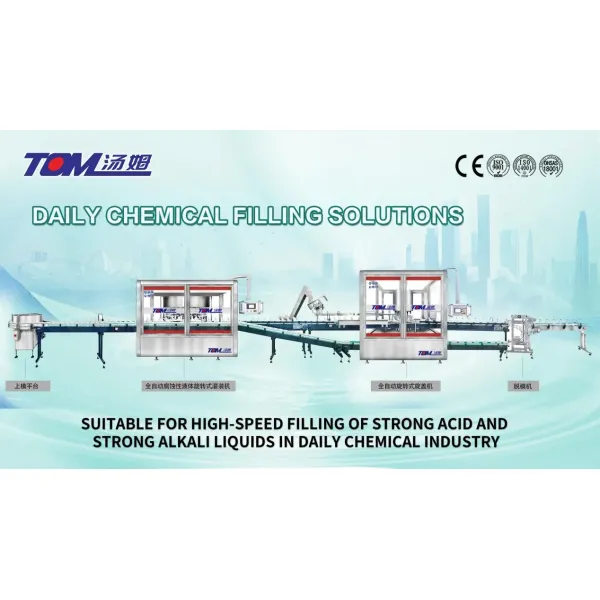

  1. Suitable for high-speed filling of strong acid and strong alkali liquids in daily chemical industry;
  2. The whole machine has compact structure, simple transmission, long service life of parts, convenient maintenance, few wearing parts and low operating noise.
  3. It has advantages of high filling measurement accuracy, extremely fast filling speed and no dripping;
  4. The exposed parts are made of stainless steel with coating, and the parts directly in contact with materials are made of non-metallic materials, which have great anti-corrosion performance;
  5. The machine has beautiful and elegant appearance, does not pollute the environment, and meets GMP standards;
  6. Bottle molds are used for filling special-shaped bottles in the daily chemical industry. To charge specifications, you only need to replace the corresponding the bottle molds to achieve efficient production change.


Main parameters:

Power supply
AC38OV,50/60HZ
Single line power 62KW

Gas source pressure
(0.6-0.7) MPa Dry, clean and stable gas source
Single line gas consumption
1.2m ³/min

Product Parameters

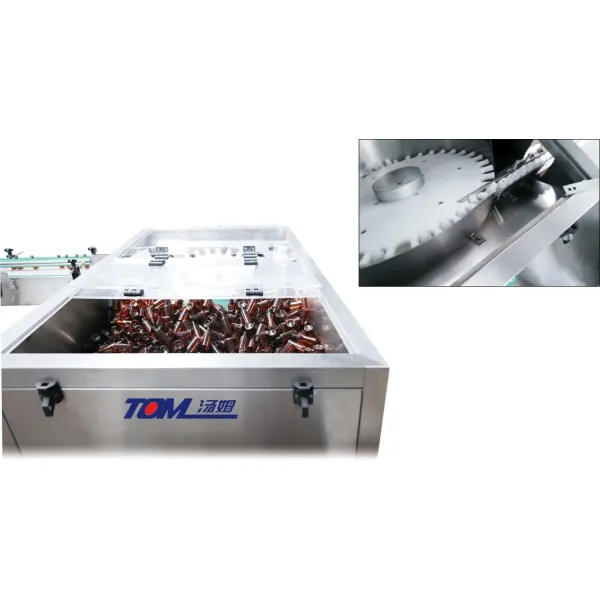

Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: ≤ 12000 bottles/hour
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: 10-100ml ≤ 12000 bottles/hour

Main Configuration

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm, production capacity: ≤ 12000 bottles/hour
GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm, production capacity: 10-100ml ≤ 12000 bottles/hour
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
TBJ-10Y-A Intelligent Labeling Machine

Size range: diameter 20-60mm
Label height: (30-90) mm, length: (40-140) mm
Production capacity: ≤ 12000 bottles/hour
Labeling accuracy: ± 1mm
ZZP-2NA Automatic case packer

Applicable bottle type: diameter 20-60mm, height 50-150mm. Carton specifications: length 300-500mm, width 200-400mm,
Height 100-300mm
Capacity: 6-8 boxes/min
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Robot palletizer

Maximum payload: 20Kg
Capacity: 4-8 boxes/min Working radius: 1600mm Vertical distance: 2100mm
Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production

Application

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production

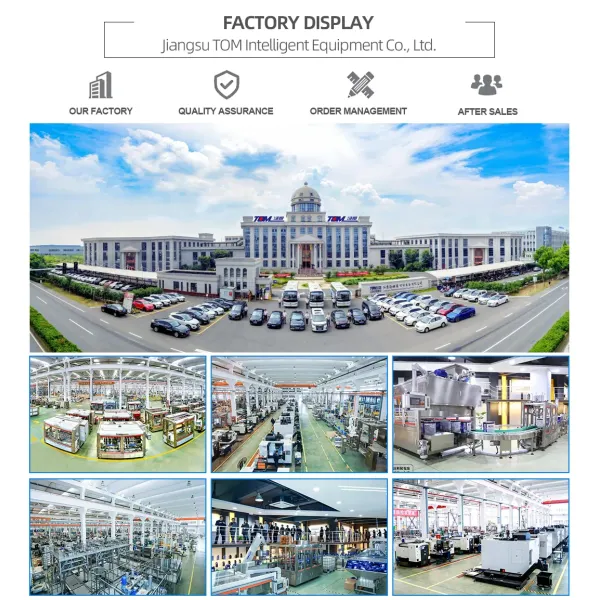

Company Profile
