XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
Specifications
Brand Name :
TOM
Model Number :
XJY-630D
Certification :
CE, ISO,CO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
Plywood case
Material :
stainless Stell 304
Type :
adhesive label
Speed :
0-5000 bottle per hour
Torque :
Can adjust
Application :
for round bottle
Model :
XJY-630D
Power :
220V or 380V
Description
XJY-630D Fully Automatic Stinless Steel PLC Controlled adhesive labeling Machine For Bottle

Major Characteristics:
This labeling machine is suitable for foodstuff, daily chemical, pharmaceutical, pesticide and other lines. For round bottle wrapping labeling. Automatically controlled by computer (PLC), touch screen control panel, easily operation. No bottle no labeling. Meanwhile it can save ten group labeling parameters. Change different specifications of bottles for labeling fast.

It adopts servo motor to realize closed type controlling, low malfunction rate, high efficiency as well as fast speed. All parts which contact materials are made of good quality stainless steel, the surface of machine is well polished, friendly environmental, meet GMP standard.

Technical Parameter:

No. Items Performance
01 Power supply AC 220V; 50Hz or 38V
02 Power

2.5 KW

03

 Labeling speed 0 ～ 26 meter / minute
04 Inner diameter of paper roll Ф75mm
05 Max outer diameter of paper roll Ф350mm
06 Standard label height 0 ~ 130mm
07 Maximum label height 200mm
08 Weight 650 Kg
09 Machine dimension ( L x W x H ) 2400mm x 1600mm x 1500mm

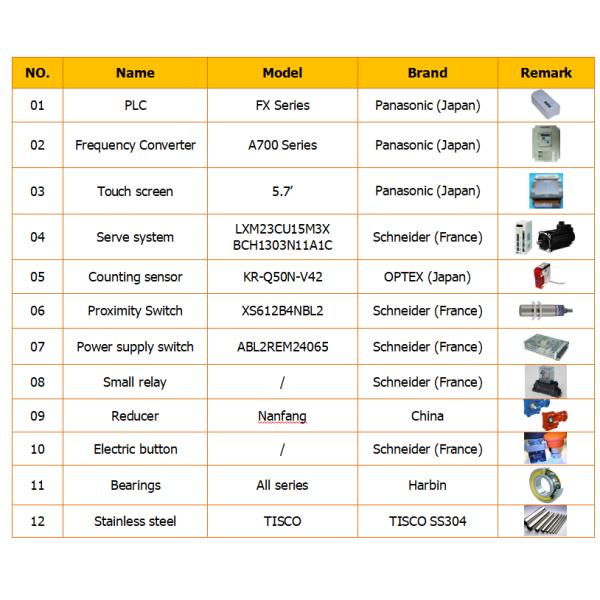

Configuration list

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Machine Photo

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Part Of Machine

label out system adopts high precision servo motor, high precision, good stability

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

All adjusting parts adopt digital display, easy to adjust, easy to replace specifications

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Leuze brand photoelectric from Germany is adopted to ensure the accuracy of the stopping position and high precision operation

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Position part

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Touch screen

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

For round bottle labeling

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle

Delivery

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For BottleXJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle


The Photo Of Our Company

XJY-630D Fully Automatic Stinless Steel PLC Controlled Adhesive Labeling Machine For Bottle
