Specifications
Brand Name :
YCM
Model Number :
PG -S50
Certification :
CE
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiate US dollars
Payment Terms :
L/C, T/T
Supply Ability :
100000 Set/Sets per Month
Delivery Time :
15-30 DAY
Packaging Details :
Plastic bag + box
Description

Product Description

Measurement range 0 - 1.4 (MPa)
accuracy level 2.5
Connection type Side connection
Nominal diameter 52 (mm)
Environmental temperature Normal temperature (°C)

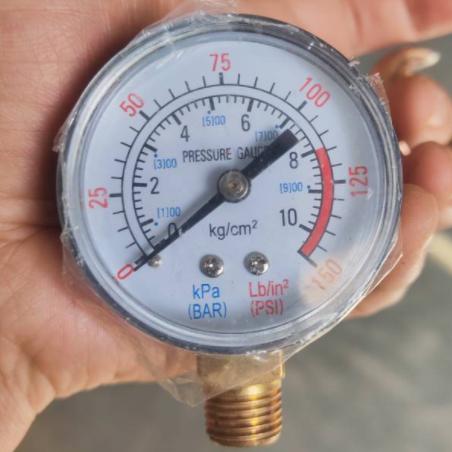

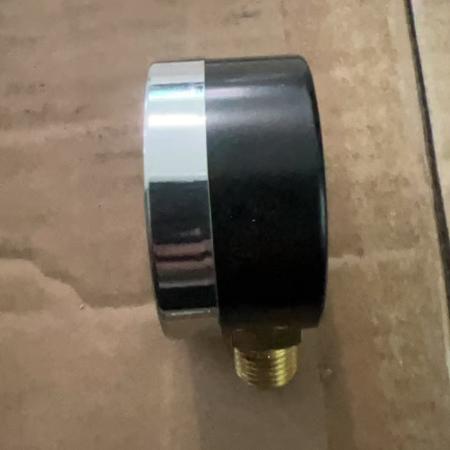

Product display

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

● Product Application Scope Divider
This product is applicable to various pneumatic equipment, such as air compressors, pneumatic tools,

etc. It can measure air pressure, water pressure, oil pressure, etc. If the equipment is highly vibrating,

please choose our series of shock-resistant meters.

● Optional note divider line
1. Threaded connections:
For 40 pressure gauges, the default thread is ZG1/8, and options include NPT1/8 and 10*1.
For 50 pressure gauges, the default thread is ZG1/4, and options include NPT1/4 and 14*1.5.
2. This series of pressure gauges include:
Radial and axial;
Pressure range, nameplate (dial);
Electrophoretic coating, electroplated coating, plastic coating;
Y40, Y50... are available for selection, and custom orders are accepted.

● General Instructions for Using Pressure Gauges
1. The instrument should be properly maintained. During use or transportation, avoid violent vibration

to prevent damage to the instrument.
2. The operating pressure of the instrument should not exceed 70% of the measurement upper limit during regular use.
3. When the instrument is working on objects with intense vibration, the operating pressure should not exceed 50%

of the measurement upper limit.
4. When using a precision gauge to calibrate this gauge, the absolute error of the precision gauge must be less

than one-third of the maximum allowable error of the gauge being calibrated, and then it can be used.

5. To ensure the accuracy of the instruments, regular inspections and verifications should be conducted.

Packaging and transportation

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge

50 radial gauge, electrophoresis iron shell side connection, air pressure gauge copper connector, air compressor gauge
