CE Certificated Fully Automatic Kitchen Food Waste Dewatering Machine

Product Description:

TOGO screw press separators is an innovative screw press solids-liquid. Thanks to its special features like the compensator hopper tank, the self-adjusting counter-pressure diaphragm and special screw types, a variety of materials from biogas plants, industrial processes, as well as slurry from livestock breeding can be treated.

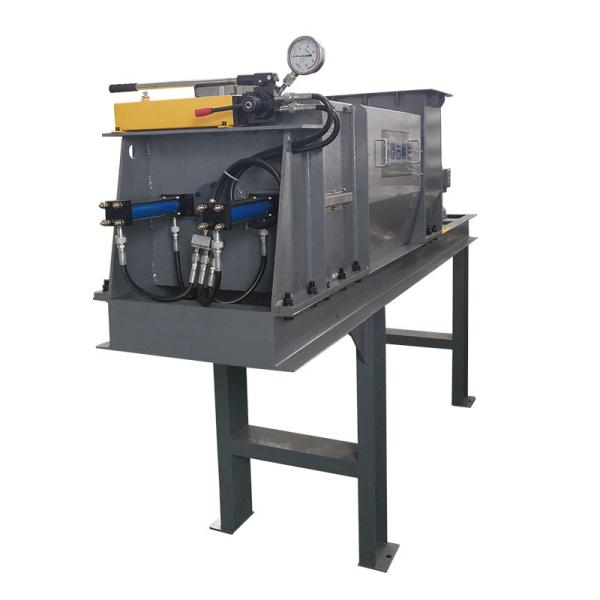

The TOGO horizontal screw press separator consists of a feeding section provided with a compensator tank and overflow hopper. The stainless steel casing includes a screw conveyor and a cylindrical screen basket that conveys and separates the solids from the liquid phase flowing through the screen, while the solid fraction is pushed towards the counter-pressure diaphragm outlet where a material plug forms. This enables automatic operation of the sepa­rator preventing the liquid phase from flushing through.

The drive unit consists of an electric motor and a gear reducer equipped with a splined output shaft which is directly coupled to the conveyor screw.

Features:

1. Stainless steel wetted parts for abrasive waste and residues.
2. Peak values in dry matter content.
3. Heavy-duty construction.
4. Hydraulic backpressure cone devise
5. Two-piece screen design allows for easy cleaning and maintenance
6. Can accept widely varying flow rates
7. Custom Designed for Every Application
8. Easy to install and operate.

Benefits:

• High performance wear-resistant screen basket
• Significant overall management cost reduction of solids-liquid separation of digestate from anaerobic digester
• Significantly reduced assembly and maintenance time
• Affordable spare parts

Options:

* Various types of diaphragm outlet.
* Various types of SINT engineering polymer screws.
* Various screen basket sizes.
